SF-MTI-AMK-005
Base product: MOUNT-ACCESSORIES

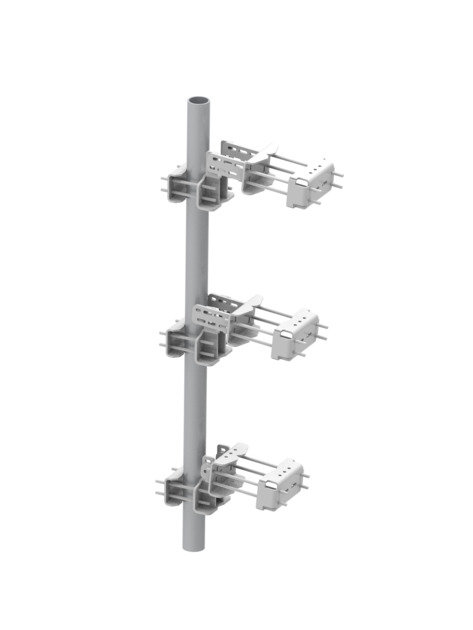

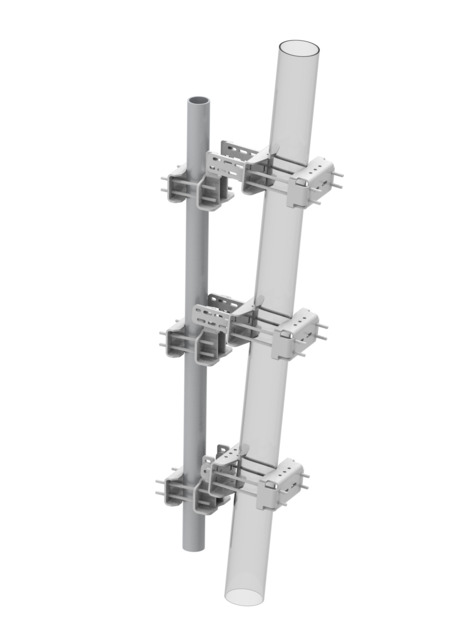

Mount to Tower Interaction Sress Relief Bracket Kit for Sector Frames without Spine
Specifications
Product classification
| Product Type | Bracket kit |
| Product Series | G2 |
General specifications
| Mounting | Round and angle legs |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 48.260 mm | 1.9 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Mounting hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 273.793 kg | 603.61 lb |
