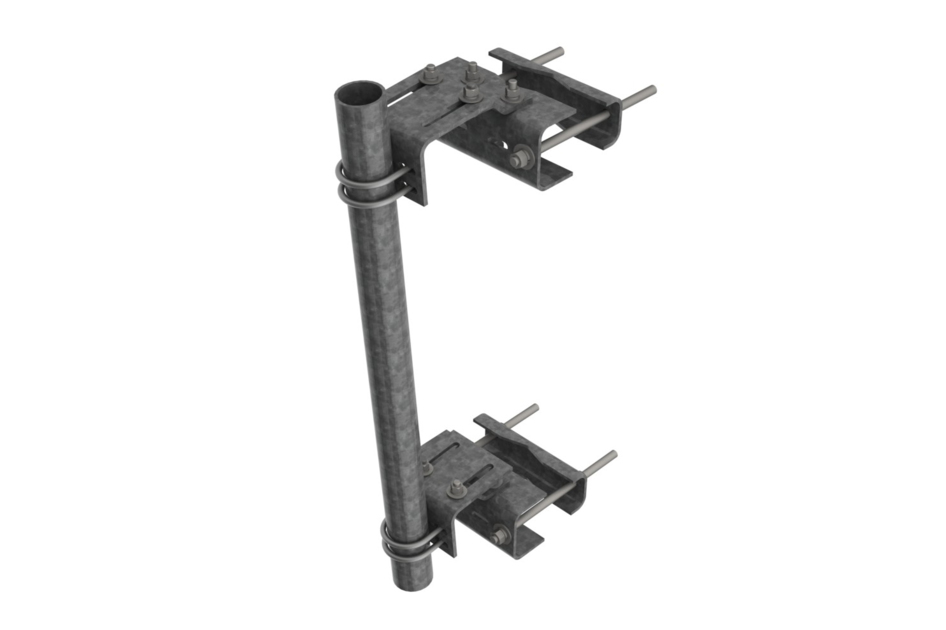

PM-SU35-48
Universal Pipe Mount Kit for 3-1/2 in OD x 48 in pipe
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1219.2 mm | 48 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1219.2 mm | 48 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 50.8 kg | 111.995 lb |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1219.2 mm | 48 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1219.2 mm | 48 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 50.8 kg | 111.995 lb |
