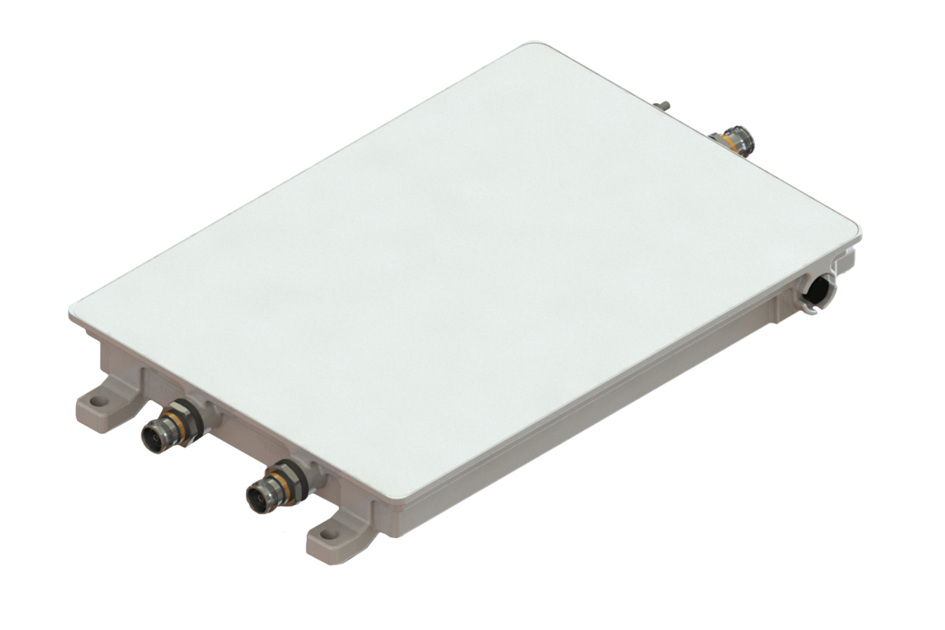

E14F05P97
Single Diplexer, FDD/TDD 2600, dc block on all ports
Features and benefits
- Single configuration
- Designed for network Modernization, introduction of LTE2600 on existing site
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 1-Single |
| Mounting | Frame | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 390 mm | 15.354 in |
| Width | 276 mm | 10.866 in |
| Depth | 52 mm | 2.047 in |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | IMT 2600 | TDD 2600 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | FDD 2500-2569.5/2620.5-2690 | TDD 2575.5-2614.5 |
| License Band | IMT 2600, Band Pass | TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2569.5 2620.5–2690 | 2575.5–2614.5 |
| Insertion Loss, maximum, dB | 2.00 | 2.00 |
| Insertion Loss, typical, dB | 0.70 | 1.00 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 82 | 82 |
| Input Power, RMS, maximum, W | 30 | 30 |
| Input Power, PEP, maximum, W | 360 | 360 |
| 3rd Order PIM, maximum, dBc | -152 | -152 |
| 3rd Order PIM Test Method | ’Two +39 dBm CW Tones | ’Two +39 dBm CW Tones |
Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP55 | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.6 L |
| Weight, net | 5.6 kg | 12.346 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 1-Single |
| Mounting | Frame | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 390 mm | 15.354 in |
| Width | 276 mm | 10.866 in |
| Depth | 52 mm | 2.047 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | IMT 2600 | TDD 2600 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | FDD 2500-2569.5/2620.5-2690 | TDD 2575.5-2614.5 |
| License Band | IMT 2600, Band Pass | TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2569.5; 2620.5–2690 | 2575.5–2614.5 |
| Insertion Loss, maximum, dB | 2.00 | 2.00 |
| Insertion Loss, typical, dB | 0.70 | 1.00 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 82 | 82 |
| Input Power, RMS, maximum, W | 30 | 30 |
| Input Power, PEP, maximum, W | 360 | 360 |
| 3rd Order PIM, maximum, dBc | -152 | -152 |
| 3rd Order PIM Test Method | ’Two +39 dBm CW Tones | ’Two +39 dBm CW Tones |
Environmental specifications
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP55 | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.6 L |
| Weight, net | 5.6 kg | 12.346 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
