E12F13P25
Twin Diplexer, 700/900 MHz, dc pass on all ports with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- Designed for network Modernization, introduction of LTE700 on existing site
- Twin configuration
- dc/AISG pass-through on all frequency ports
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC79X |
| Color | Gray |
| Common Port Label | Port 3 |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 230 mm | 9.055 in |
| Width | 170 mm | 6.693 in |
| Depth | 114 mm | 4.488 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | EDD 800 | LMR 750 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 703-803 | 898.4-960 |
| License Band | APT 700, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 703–803 | 898.4–960 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -158 | -158 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

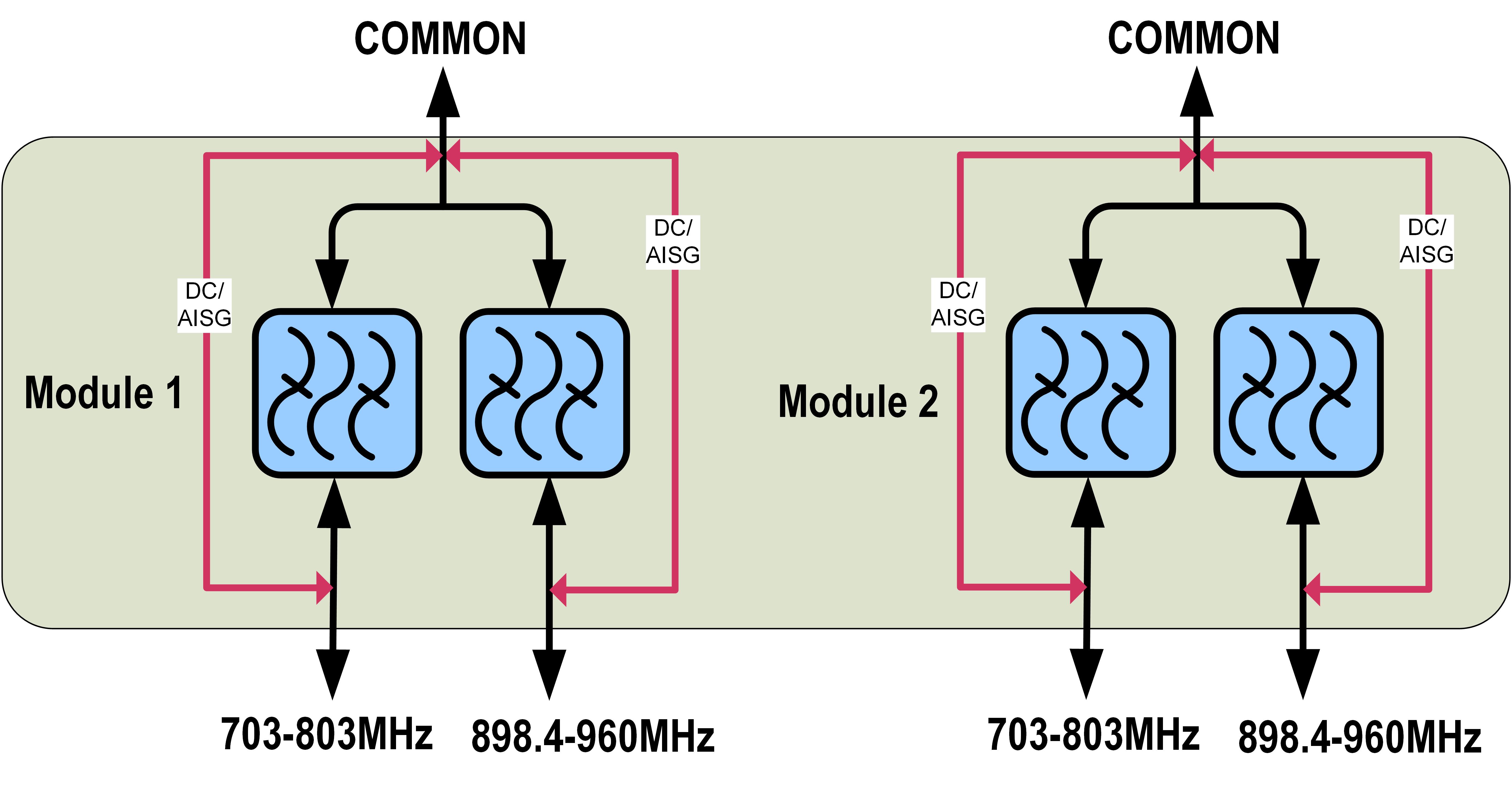

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 5.4 kg | 11.905 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC79X |
| Color | Gray |
| Common Port Label | Port 3 |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 230 mm | 9.055 in |
| Width | 170 mm | 6.693 in |
| Depth | 114 mm | 4.488 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | EDD 800 | LMR 750 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 703-803 | 898.4-960 |
| License Band | APT 700, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 703–803 | 898.4–960 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -158 | -158 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 5.4 kg | 11.905 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
