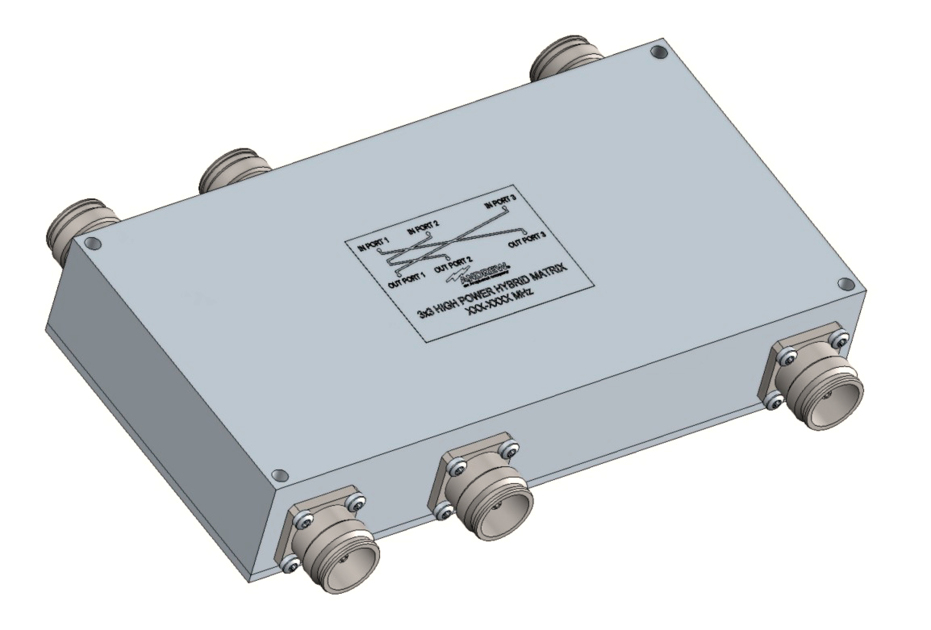

H-3X3-UW-43-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
Low PIM 3x3 High Power Hybrid Matrix, 555–6000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White (RAL 9010) |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32 mm | 1.26 in |
| Width | 162 mm | 6.378 in |
| Length | 297 mm | 11.693 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 100 W |
| Coupling | 5 dB |
| Coupling Tolerance | ±1.1dB @ 555-6000 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 23 dB @ 2700–6000 MHz | 25 dB @ 555–2700 MHz |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| VSWR | 1.2 |
Mechanical specifications
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 120 mm | 4.724 in |
| Width, packed | 230 mm | 9.055 in |
| Length, packed | 370 mm | 14.567 in |
| Weight, gross | 2.5 kg | 5.512 lb |
| Weight, net | 1.6 kg | 3.527 lb |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White (RAL 9010) |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32 mm | 1.26 in |
| Width | 162 mm | 6.378 in |
| Length | 297 mm | 11.693 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 100 W |
| Coupling | 5 dB |
| Coupling Tolerance | ±1.1dB @ 555-6000 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 23 dB @ 2700–6000 MHz | 25 dB @ 555–2700 MHz |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| VSWR | 1.2 |
Mechanical specifications
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 120 mm | 4.724 in |
| Width, packed | 230 mm | 9.055 in |
| Length, packed | 370 mm | 14.567 in |
| Weight, gross | 2.5 kg | 5.512 lb |
| Weight, net | 1.6 kg | 3.527 lb |
