7843675-00
Double Notch Filter for 900 MHz UL Protection
Specifications
Product classification
| Product Type | Filter |
General specifications
| Color | Grey (RAL 7047, Telegrau) |
| RF Connector Interface | 4.3-10 Female |
| RF Inputs, quantity | 1 |
| RF Outputs, quantity | 1 |

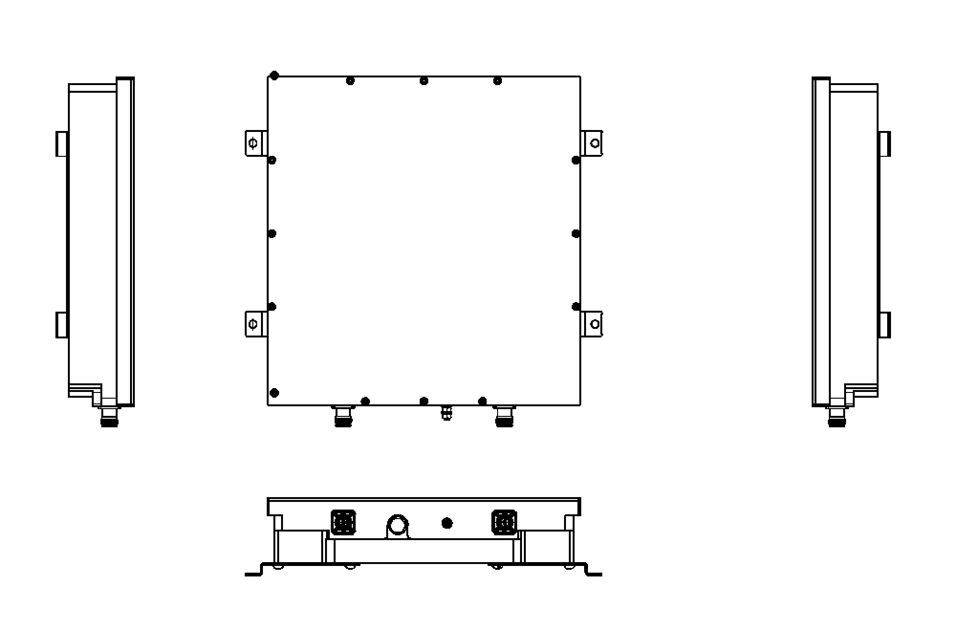

Dimensions
| Height | 79 mm | 3.110 in |
| Width | 433 mm | 17.047 in |
| Depth | 425 mm | 16.732 in |
Electrical specifications
| Return Loss, minimum | 18 dB |
| Impedance | 50 ohm |
Electrical specifications, band pass
| Sub-module | 1 | 1 | 1 | 1 | 1 | 1 |
| Frequency Range, MHz | 825–827 | 827–843 | 843–845 | 870–872 (187) | 872–888 | 888–889.7 |
| Insertion Loss, maximum, dB | 1.30 | 1.30 | 1.80 | 1.80 | ||
| Insertion Loss, typical, dB | 0.70 | 0.70 |
Electrical specifications, band reject
| Sub-module | 1 | 1 | 1 | 1 | 1 | 1 |
| Frequency Range, MHz | 891.6–896 | |||||
| Attenuation, minimum, dB | 83.0 |
Environmental specifications
| Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, without mounting hardware | 19 kg | 41.888 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
