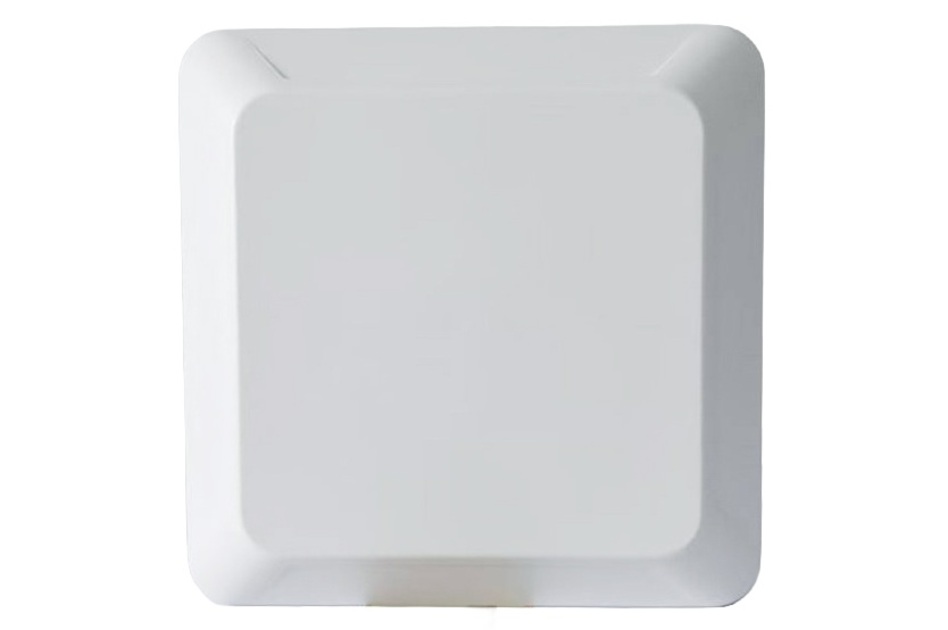

CMAX-D-43-WI53-O
Base product: DIRECTIONAL-ANTENNAS
Low PIM Directional Antenna, Indoor/Outdoor, 698–960 MHz, 1710–2700, 3300-4200 MHz
Features and benefits
- PIM, 3rd Order, 2x20W, maximum dBc: <-153
- VSWR | Return Loss, maximum dB: <1.8 | 10.9
Specifications
Product classification
| Product Type | Indoor/outdoor antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Polarization | Vertical |
| Color | White (RAL 9016) |

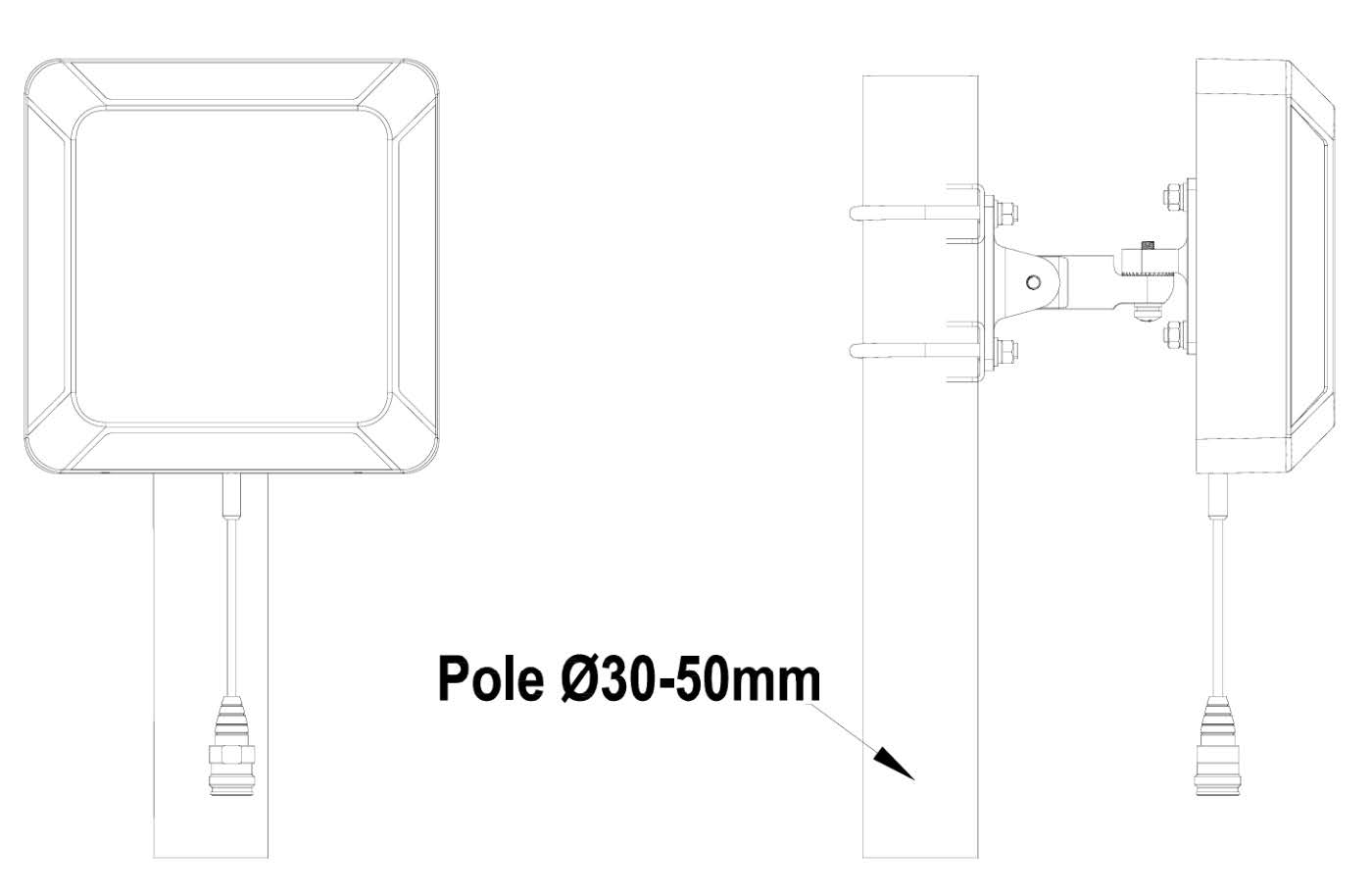

| Mounting | Wall mounting plate and Poles between 30–50 mm with supplied clamps |
| Number of Ports | 1 |
| Pigtail Cable | 670-141FEP, plenum rated |
| Radome Material | ASA, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 180 mm | 7.087 in |
| Depth | 60 mm | 2.362 in |
| Length | 180 mm | 7.087 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 698–960 | 1710–2700 | 3300–4200 |
| Gain, dBi | 7.5 | 8.0 | 8.5 |
| Beamwidth, Horizontal, degrees | 95 | 67 | 33 |
| Beamwidth, Vertical, degrees | 60 | 48 | 15 |
| VSWR | Return loss, maximum, dB | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 |
| PIM, 3rd Order, maximum, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 254.0 N @ 241 km/h (57.1 lbf @ 241 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 96 mm | 3.780 in |
| Length, packed | 305 mm | 12.008 in |
| Net Weight, with mounting kit | 0.68 kg | 1.499 lb |
| Packaging quantity | 1 |
| Weight, gross | 0.85 kg | 1.874 lb |
| Weight, net | 0.5 kg | 1.102 lb |
Product classification
| Product Type | Indoor/outdoor antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Wall mounting plate and Poles between 30–50 mm with supplied clamps |
| Number of Ports | 1 |
| Pigtail Cable | 670-141FEP, plenum rated |
| Radome Material | ASA, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 180 mm | 7.087 in |
| Depth | 60 mm | 2.362 in |
| Length | 180 mm | 7.087 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 698–960 | 1710–2700 | 3300–4200 |
| Gain, dBi | 7.5 | 8.0 | 8.5 |
| Beamwidth, Horizontal, degrees | 95 | 67 | 33 |
| Beamwidth, Vertical, degrees | 60 | 48 | 15 |
| VSWR | Return loss, maximum, dB | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 |
| PIM, 3rd Order, maximum, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 254.0 N @ 241 km/h (57.1 lbf @ 241 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 96 mm | 3.780 in |
| Length, packed | 305 mm | 12.008 in |
| Net Weight, with mounting kit | 0.68 kg | 1.499 lb |
| Packaging quantity | 1 |
| Weight, gross | 0.85 kg | 1.874 lb |
| Weight, net | 0.5 kg | 1.102 lb |
