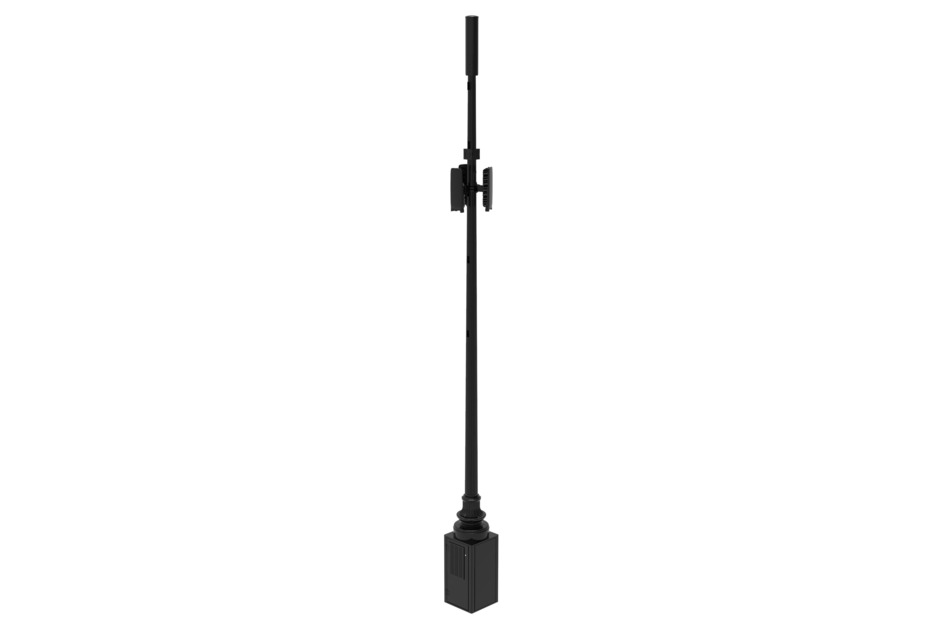

760253649 | 30" Pole Cab with Tapered Fluted Shaft

Bottom of the Pole 30in Square base with round tapered fluted shaft 4G/5G/mmWave Concealment Enclosure to house and conceal multiple low to high power radios and other wireless infrastructure equipment in a cabinet at the base of the pole.

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

Available with Pole Top concealment, mmWave 5G mounting, luminaire arms.

Available After Market Kits -- ordered separately:
- 860665491-AMK-001 - Ericsson 4480/4415/8863 Radios & 6304 PSU Mounting Kit
- 860665491-AMK-003 - Custom SETAR Configuration
- 860665491-AMK-004 - Ericsson 8843/4449/4478/4890/4490& 630x PSU Mounting Kit - RETROFIT
- 860665491-AMK-006 - Nokia to Ericsson RETROFIT kit

Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
Flexible configuration accepts low to high-power single or dual band radios, Integrated AC load center/OVP and Disconnect and integrated AC/DC rectifier options

Specifications

Product classification

Product Type	Pole cab
Product Brand	Metro Cell
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Color Options	Black (RAL 9005)
Compatible Foundation Type	Poured Concrete \| Pre-Cast Concrete
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Fan Cooling
Power Supply Compatibility	6302 \| 6304 \| 6308 \| ABB CC1600 \| DELTA 2.0 \| PSU-AC-08
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 4415 \| 4449 \| 4455 \| 4461 \| 4471 \| 4478 \| 4480 \| 4490 \| 4890 \| 6347 \| 6701 \| 8843 \| 8863 \| Diplexer
Radio Compatibility, Nokia	(2) Airscale dual band radios (160W or 320W and (2) Delta 1kW rectifiers (base) \| AHFIA \| AHFIB \| AHLBBA
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| AT1K0X \| Diplexer \| RF4402D-D1A \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height Note	4 ft tall Equipment Cabinet Base
Pole Height Options	8.839 m \| 29 ft
Width	762.000 mm \| 30 in
Depth	762.000 mm \| 30 in
Depth Note	Square
Pole Diameter	203.2 mm \| 8 in

Electrical specifications

Power/Fiber Input

AC load center with OVP and disconnect | Fiber demarcation

Material specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Galvanized steel \| Steel

Environmental specifications

Thermal Compliance

GR-487
