VV-33A-R2VB-V2
4-port sector antenna, 4x 1695–2690 MHz, 33°HPBW, 2x RETs
Features and benefits
- Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput
- Ideal for high gain corridor coverage or capacity optimization
- All Internal RET actuators are connected in "Cascaded SRET" configuration
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |

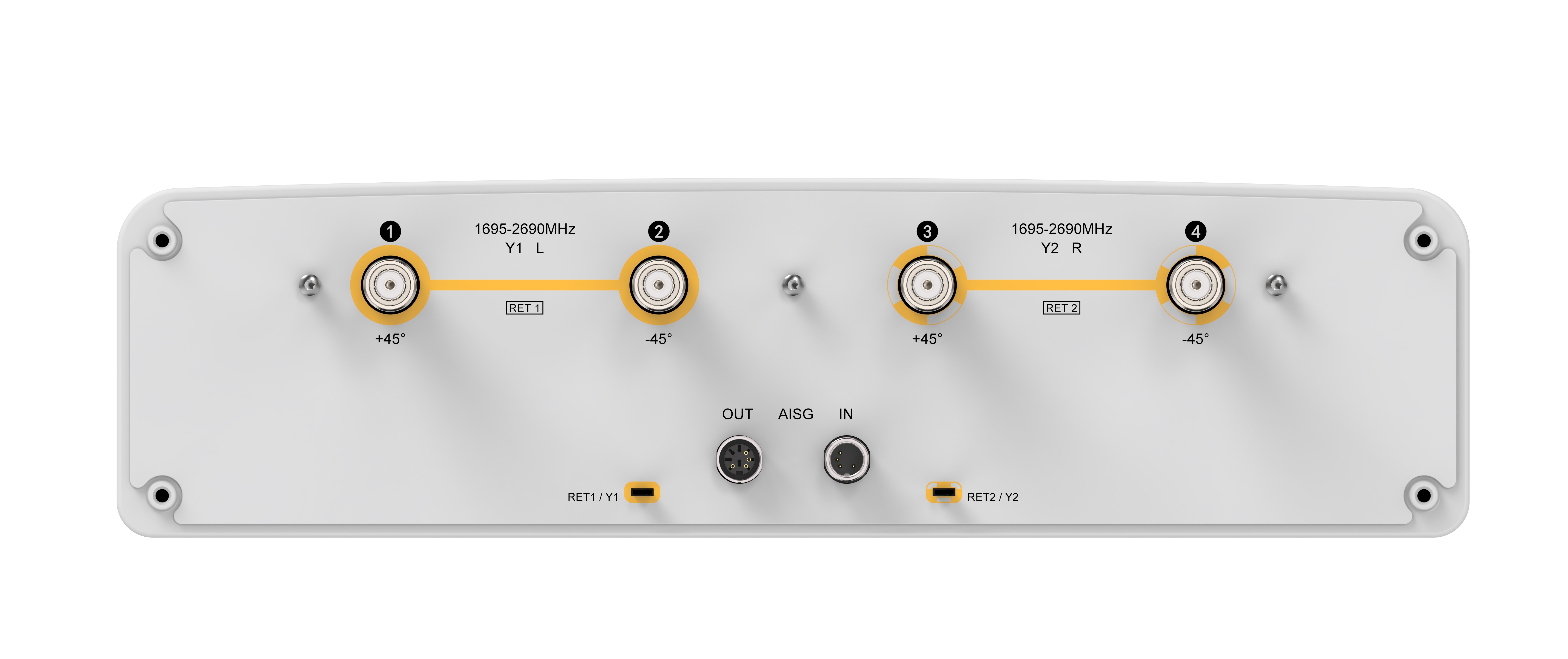

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 497 mm | 19.567 in |
| Depth | 127 mm | 5.000 in |
| Length | 1497 mm | 58.937 in |
| Net Weight, without mounting kit | 20.4 kg | 44.974 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications

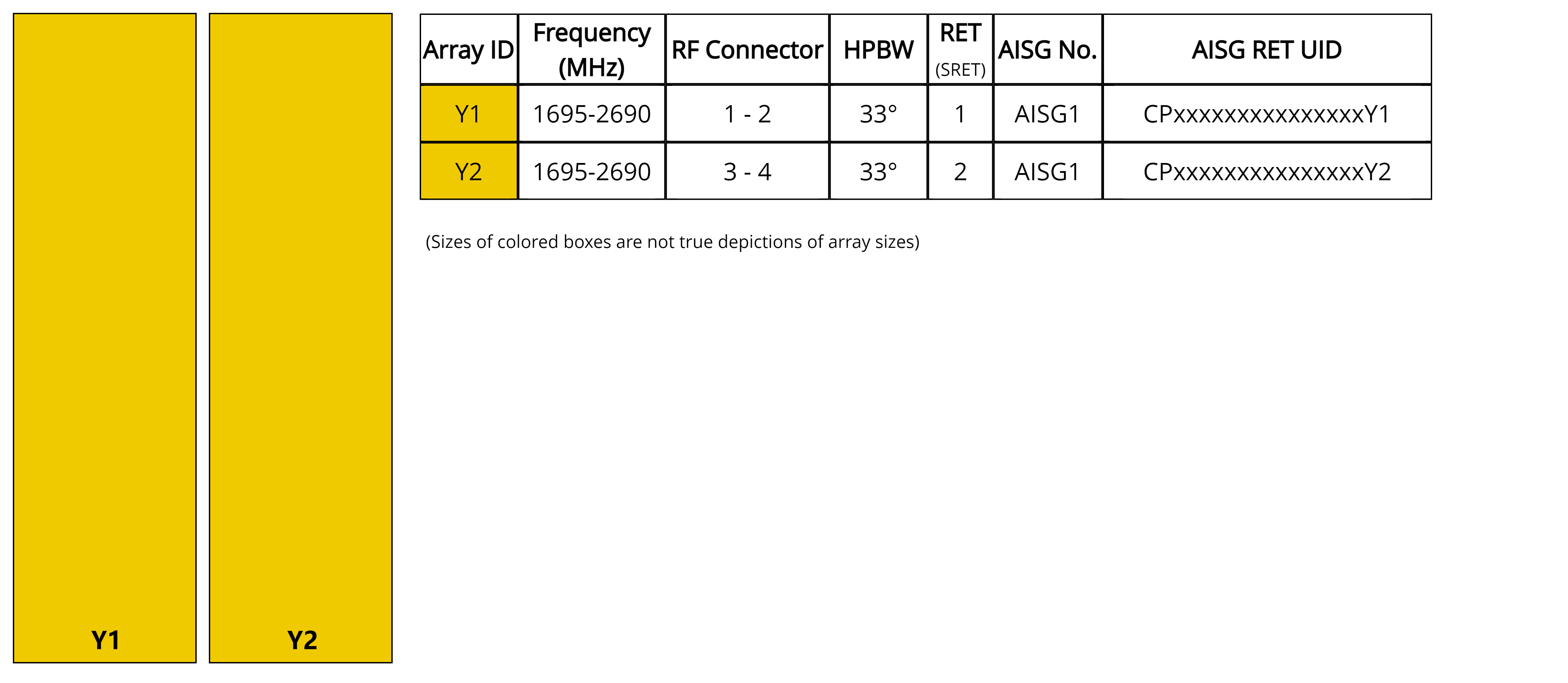

| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Gain, dBi | 19.8 | 20.3 | 20.8 | 21.5 | 21.8 |
| Beamwidth, Horizontal, degrees | 37 | 34 | 32 | 29 | 26 |
| Beamwidth, Vertical, degrees | 7.4 | 7 | 6.6 | 5.9 | 5.5 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 20 | 24 | 24 | 18 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 32 | 33 | 33 | 35 | 33 |
| CPR at Boresight, dB | 25 | 25 | 26 | 24 | 23 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v11 |
| Wind Loading @ Velocity, frontal | 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 152.0 N @ 150 km/h (34.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 807.0 N @ 150 km/h (181.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 592 mm | 23.307 in |
| Depth, packed | 247 mm | 9.724 in |
| Length, packed | 1697 mm | 66.811 in |
| Weight, gross | 29.6 kg | 65.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 497 mm | 19.567 in |
| Depth | 127 mm | 5.000 in |
| Length | 1497 mm | 58.937 in |
| Net Weight, without mounting kit | 20.4 kg | 44.974 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications
| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Gain, dBi | 19.8 | 20.3 | 20.8 | 21.5 | 21.8 |
| Beamwidth, Horizontal, degrees | 37 | 34 | 32 | 29 | 26 |
| Beamwidth, Vertical, degrees | 7.4 | 7 | 6.6 | 5.9 | 5.5 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 20 | 24 | 24 | 18 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 32 | 33 | 33 | 35 | 33 |
| CPR at Boresight, dB | 25 | 25 | 26 | 24 | 23 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v11 |
| Wind Loading @ Velocity, frontal | 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 152.0 N @ 150 km/h (34.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 807.0 N @ 150 km/h (181.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 592 mm | 23.307 in |
| Depth, packed | 247 mm | 9.724 in |
| Length, packed | 1697 mm | 66.811 in |
| Weight, gross | 29.6 kg | 65.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
