V4-65A-R4VB
8-port sector antenna, 8x 1695–2690 MHz, 65° HPBW, 4x RET
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
- All RETs have a tilt indicator rod
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 497 mm | 19.567 in |
| Depth | 127 mm | 5.000 in |
| Length | 1397 mm | 55.000 in |
| Net Weight, without mounting kit | 20.5 kg | 45.195 lb |

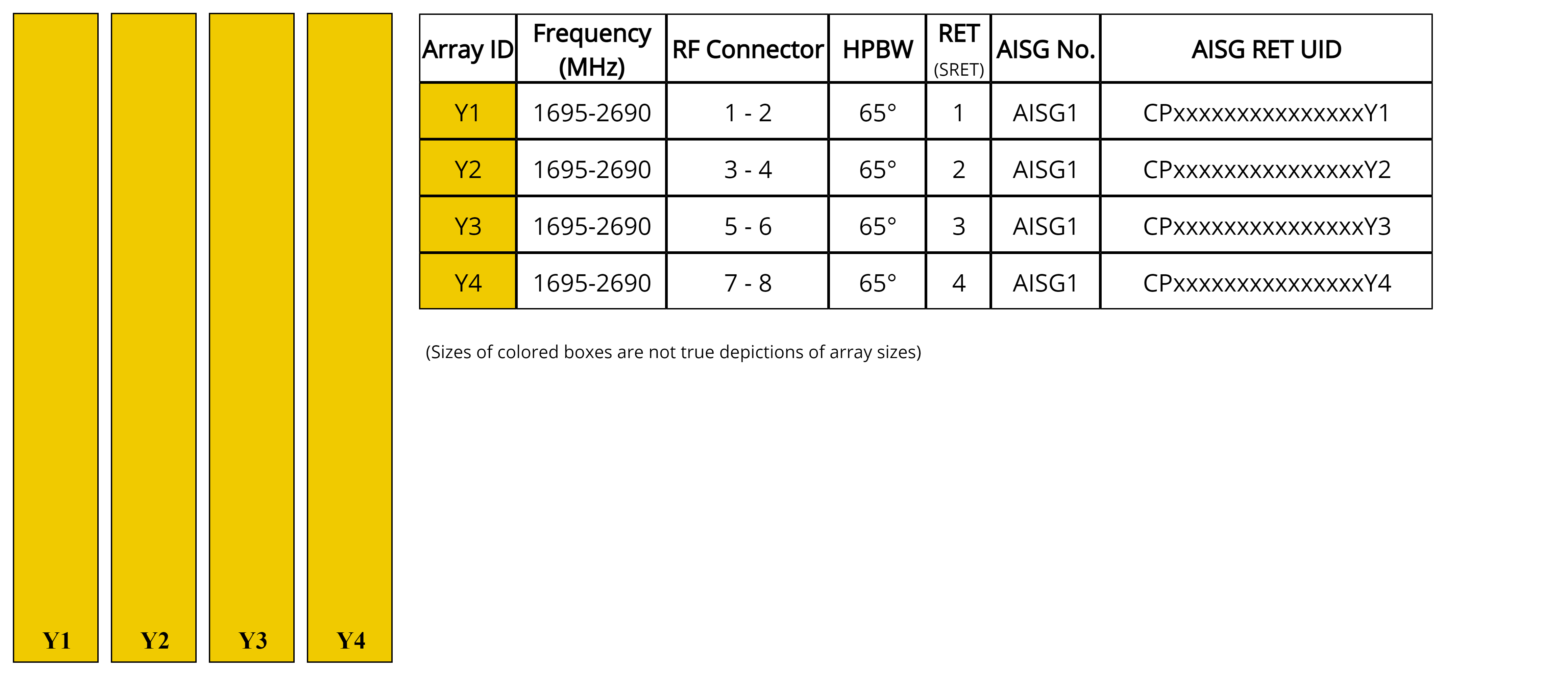

Array layout
| Click on image to enlarge. |

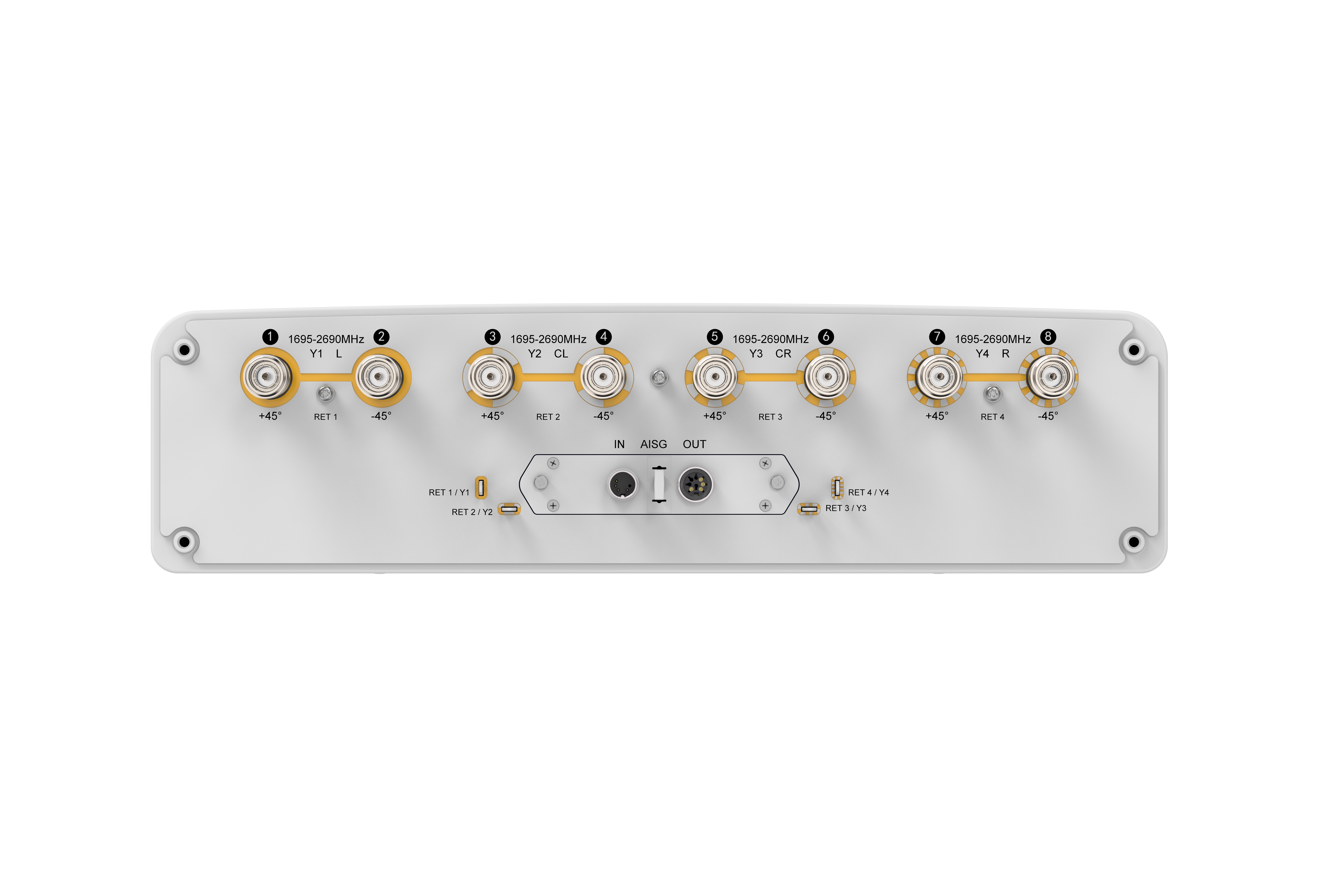

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1920 | 1920–2200 | 2300–2690 |
| RF Port | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 17.5 | 18.1 | 18.6 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 59 |
| Beamwidth, Vertical, degrees | 6.9 | 6.2 | 5.1 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 19 | 18 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 31 | 29 |
| CPR at Boresight, dB | 23 | 24 | 22 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 620.0 N @ 150 km/h (139.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 140.0 N @ 150 km/h (31.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 750.0 N @ 150 km/h (168.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 592 mm | 23.307 in |
| Depth, packed | 247 mm | 9.724 in |
| Length, packed | 1597 mm | 62.874 in |
| Weight, gross | 30 kg | 66.139 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 497 mm | 19.567 in |
| Depth | 127 mm | 5.000 in |
| Length | 1397 mm | 55.000 in |
| Net Weight, without mounting kit | 20.5 kg | 45.195 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1920 | 1920–2200 | 2300–2690 |
| RF Port | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 17.5 | 18.1 | 18.6 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 59 |
| Beamwidth, Vertical, degrees | 6.9 | 6.2 | 5.1 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 19 | 18 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 31 | 29 |
| CPR at Boresight, dB | 23 | 24 | 22 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 620.0 N @ 150 km/h (139.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 140.0 N @ 150 km/h (31.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 750.0 N @ 150 km/h (168.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 592 mm | 23.307 in |
| Depth, packed | 247 mm | 9.724 in |
| Length, packed | 1597 mm | 62.874 in |
| Weight, gross | 30 kg | 66.139 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
