RV-65S-FVB
4-port sector antenna, 2x 698-960 and 2x 1710–2690 MHz, 65° HPBW, fixed tilt
Features and benefits
- Ideal for small cell applications
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 2 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 300 mm | 11.811 in |
| Depth | 150 mm | 5.906 in |
| Length | 597 mm | 23.504 in |
| Net Weight, antenna only | 4.6 kg | 10.141 lb |

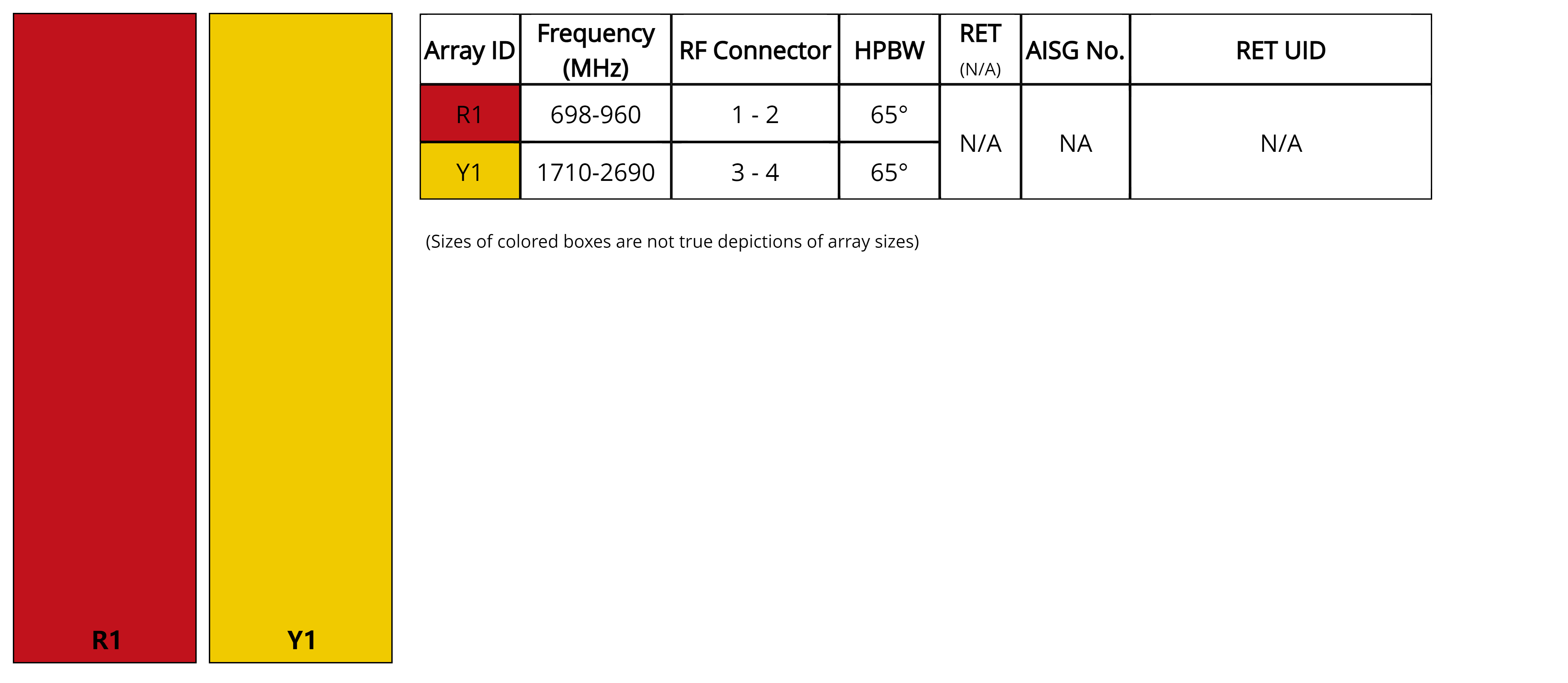

Array layout
| Click on image to enlarge. |

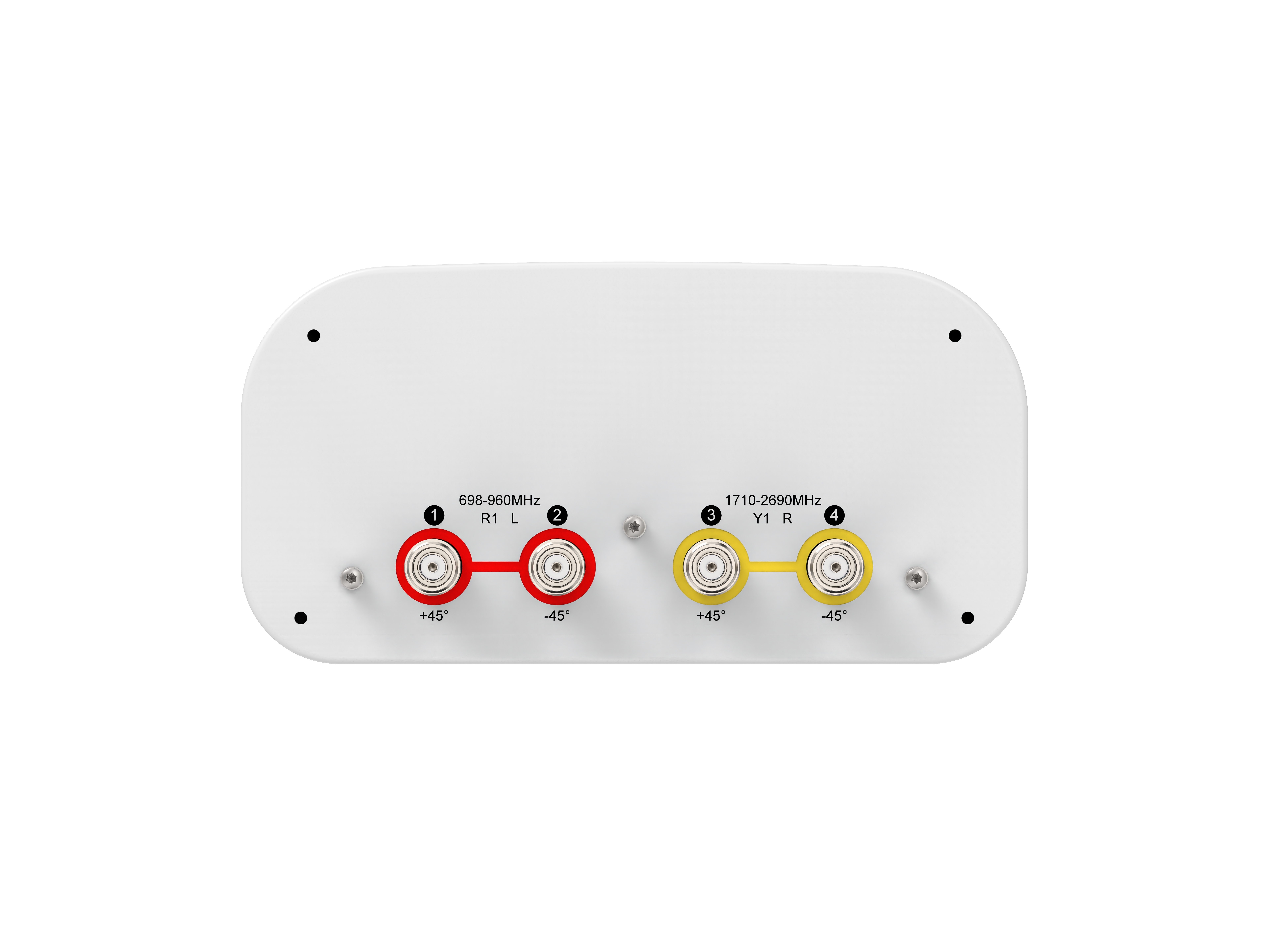

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications
| R1 | R1 | R1 | Y1 | Y1 | Y1 | Y1 | |
| Frequency Band, MHz | 698–806 | 790–894 | 880–960 | 1710–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3,4 | 3,4 | 3,4 | 3,4 |
| Gain, dBi | 11.0 | 11.4 | 11.7 | 13.4 | 14.4 | 15.0 | 14.9 |
| Beamwidth, Horizontal, degrees | 71 | 69 | 65 | 67 | 66 | 64 | 64 |
| Beamwidth, Vertical, degrees | 38 | 34.6 | 31.8 | 18 | 16.2 | 13.6 | 13.1 |
| Beam Tilt, degrees | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| USLS (First Lobe), dB | 17 | 17 | 16 | 14 | 14 | 13 | 13 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 26 | 25 | 24 | 27 | 27 | 28 |
| CPR at Boresight, dB | 21 | 22 | 21 | 25 | 24 | 26 | 25 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 23 | 23 | 23 | 23 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 47.0 N @ 150 km/h (10.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 395 mm | 15.551 in |
| Depth, packed | 270 mm | 10.630 in |
| Length, packed | 750 mm | 29.528 in |
| Weight, gross | 8.3 kg | 18.298 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 2 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 300 mm | 11.811 in |
| Depth | 150 mm | 5.906 in |
| Length | 597 mm | 23.504 in |
| Net Weight, antenna only | 4.6 kg | 10.141 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications
| R1 | R1 | R1 | Y1 | Y1 | Y1 | Y1 | |
| Frequency Band, MHz | 698–806 | 790–894 | 880–960 | 1710–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3,4 | 3,4 | 3,4 | 3,4 |
| Gain, dBi | 11.0 | 11.4 | 11.7 | 13.4 | 14.4 | 15.0 | 14.9 |
| Beamwidth, Horizontal, degrees | 71 | 69 | 65 | 67 | 66 | 64 | 64 |
| Beamwidth, Vertical, degrees | 38 | 34.6 | 31.8 | 18 | 16.2 | 13.6 | 13.1 |
| Beam Tilt, degrees | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| USLS (First Lobe), dB | 17 | 17 | 16 | 14 | 14 | 13 | 13 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 26 | 25 | 24 | 27 | 27 | 28 |
| CPR at Boresight, dB | 21 | 22 | 21 | 25 | 24 | 26 | 25 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 23 | 23 | 23 | 23 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 47.0 N @ 150 km/h (10.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 395 mm | 15.551 in |
| Depth, packed | 270 mm | 10.630 in |
| Length, packed | 750 mm | 29.528 in |
| Weight, gross | 8.3 kg | 18.298 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
