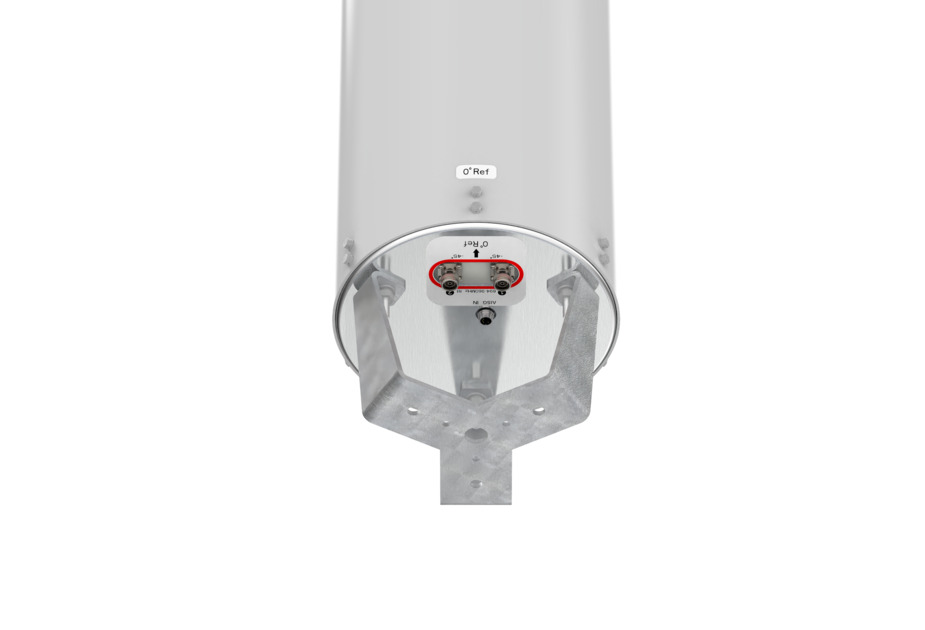

O2P-2L-B1
2 Port omni antenna, 2x 694–960 MHz, 360° HPBW, 1x RET
Features and benefits
- Single antenna provides for 2xMIMO and Rx diversity service
- Simplifies infrastructure and space requirements compared to traditional V-pol antennas
- Ideal solution for rural coverage
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Length | 1999 mm | 78.701 in |
| Net Weight, antenna only | 22.6 kg | 49.824 lb |
| Outer Diameter | 305 mm | 12.008 in |

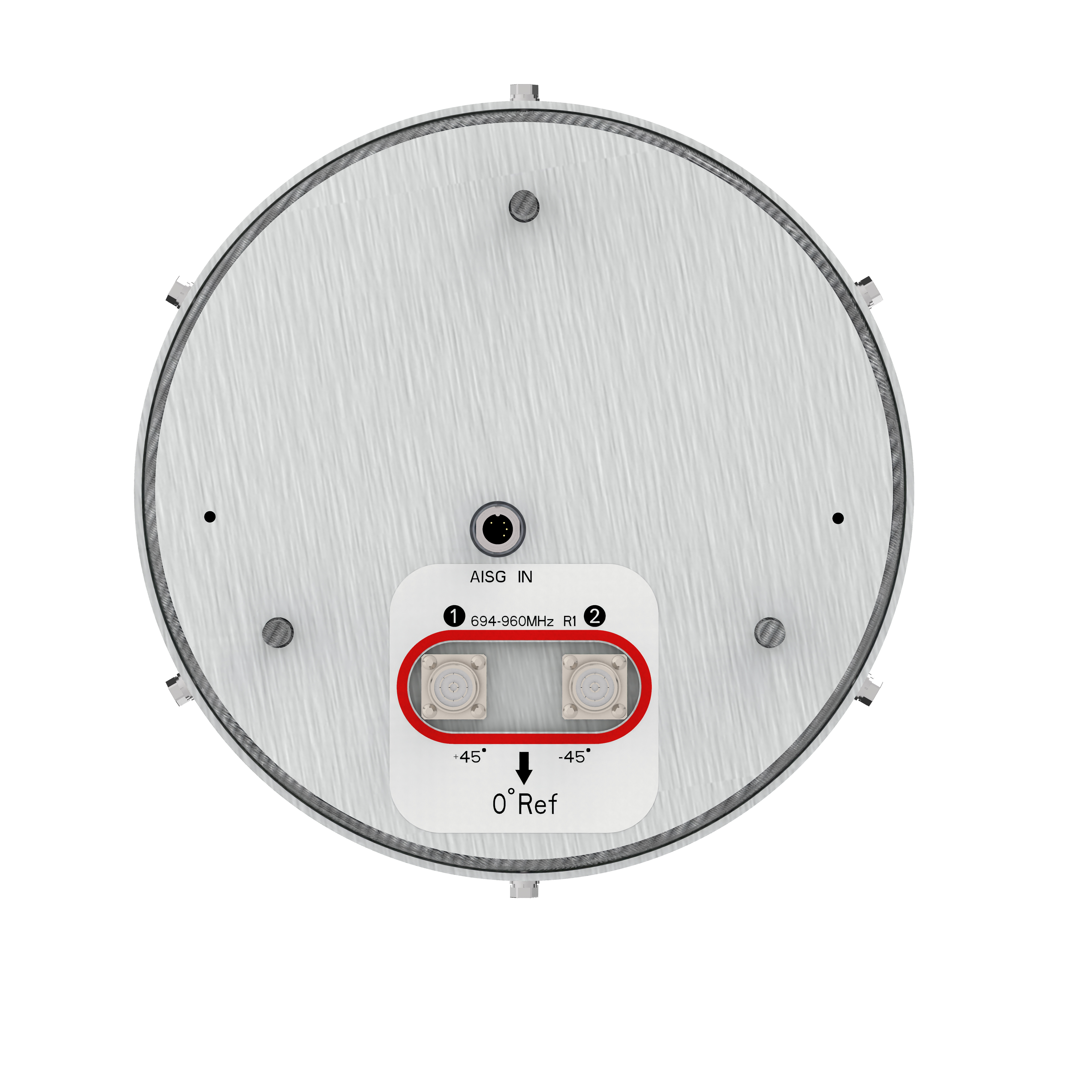

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| R1 | R1 | R1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 10.4 | 11.0 | 11.4 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 13.2 | 11.7 | 10.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 |
| USLS (First Lobe), dB | 20 | 19 | 19 |
| CPR at Boresight, dB | 16 | 17 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 420 mm | 16.535 in |
| Depth, packed | 400 mm | 15.748 in |
| Length, packed | 2265 mm | 89.173 in |
| Weight, gross | 29.2 kg | 64.375 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Length | 1999 mm | 78.701 in |
| Net Weight, antenna only | 22.6 kg | 49.824 lb |
| Outer Diameter | 305 mm | 12.008 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| R1 | R1 | R1 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 10.4 | 11.0 | 11.4 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 13.2 | 11.7 | 10.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 |
| USLS (First Lobe), dB | 20 | 19 | 19 |
| CPR at Boresight, dB | 16 | 17 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 376.0 N @ 150 km/h (84.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 420 mm | 16.535 in |
| Depth, packed | 400 mm | 15.748 in |
| Length, packed | 2265 mm | 89.173 in |
| Weight, gross | 29.2 kg | 64.375 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
