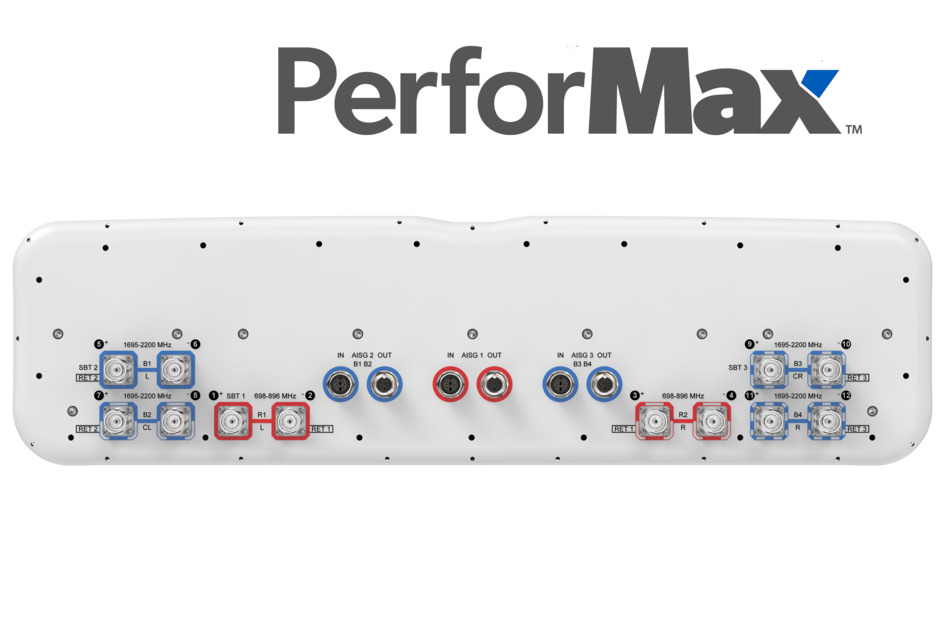

NNH4-45B-HG-R3B
12-port Next Generation PerforMax™ Superior Coverage and Capacity sector antenna, 4x 698-896 and 8x 1695–2200 MHz, 45° HPBW, 6 ft, 3x RET
Features and benefits
- Antenna optimized for higher gain with superior radiation efficiency
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput
- Best in class PIM immunity
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Internal SBT allows remote RET control from the radio over the RF jumper cable
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 56 kg | 123.459 lb |

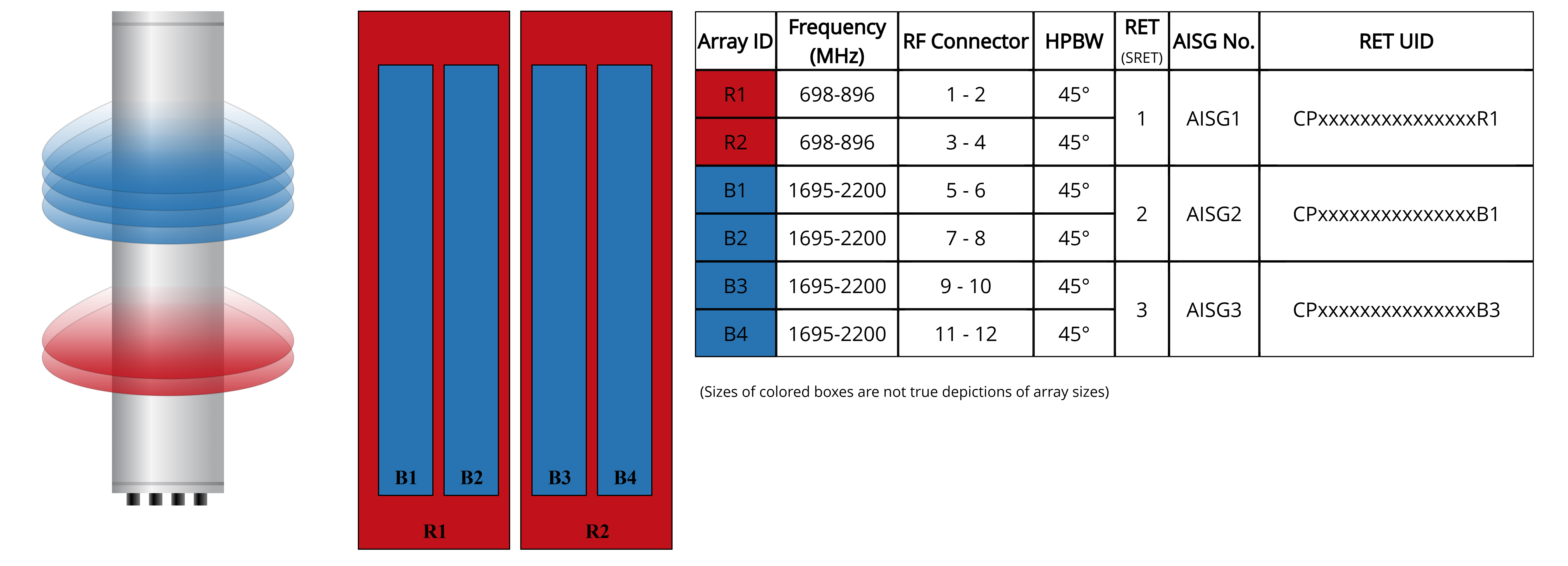

Array layout
| Click on image to enlarge. |

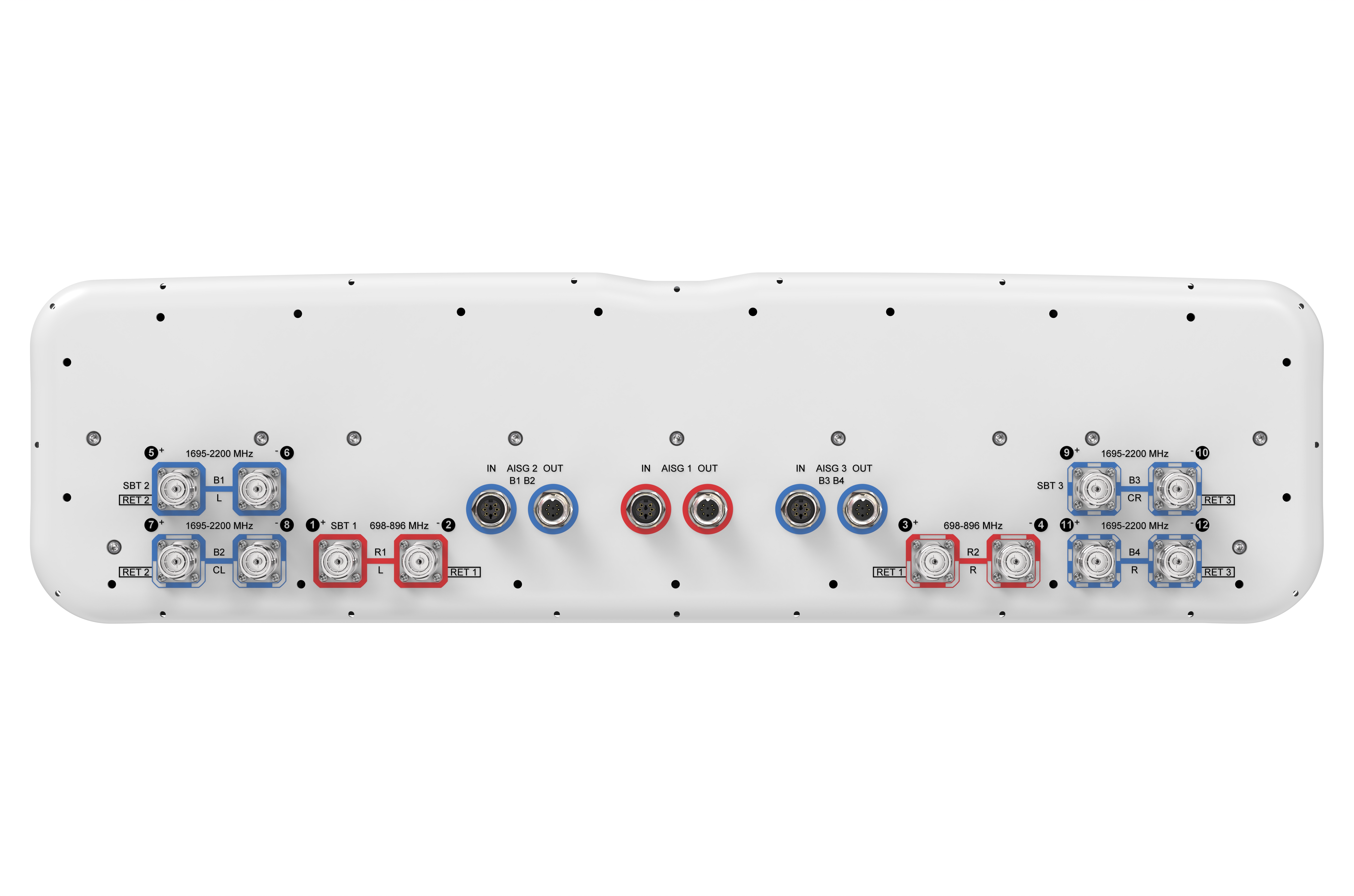

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,440 W |
Electrical specifications
| R1,R2 | R1,R2 | B1-B4 | B1-B4 | B1-B4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 16.900 | 17.500 | 20.100 | 20.600 | 20.900 |
| Gain, dBi | 16.2 | 16.9 | 19.1 | 19.7 | 20.1 |
| Beamwidth, Horizontal, degrees | 49 | 45 | 49 | 47 | 45 |
| Beamwidth, Vertical, degrees | 12.4 | 11.1 | 5.3 | 5 | 4.7 |
| Beam Tilt, degrees | 2–12 | 2–12 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 17 | 15 | 16 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 31 | 32 | 36 | 35 |
| CPR at Boresight, dB | 15 | 14 | 16 | 20 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 191.0 N @ 150 km/h (42.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2438 mm | 95.984 in |
| Weight, gross | 80 kg | 176.370 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 56 kg | 123.459 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,440 W |
Electrical specifications
| R1,R2 | R1,R2 | B1-B4 | B1-B4 | B1-B4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 16.900 | 17.500 | 20.100 | 20.600 | 20.900 |
| Gain, dBi | 16.2 | 16.9 | 19.1 | 19.7 | 20.1 |
| Beamwidth, Horizontal, degrees | 49 | 45 | 49 | 47 | 45 |
| Beamwidth, Vertical, degrees | 12.4 | 11.1 | 5.3 | 5 | 4.7 |
| Beam Tilt, degrees | 2–12 | 2–12 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 17 | 15 | 16 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 31 | 32 | 36 | 35 |
| CPR at Boresight, dB | 15 | 14 | 16 | 20 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 191.0 N @ 150 km/h (42.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2438 mm | 95.984 in |
| Weight, gross | 80 kg | 176.370 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
