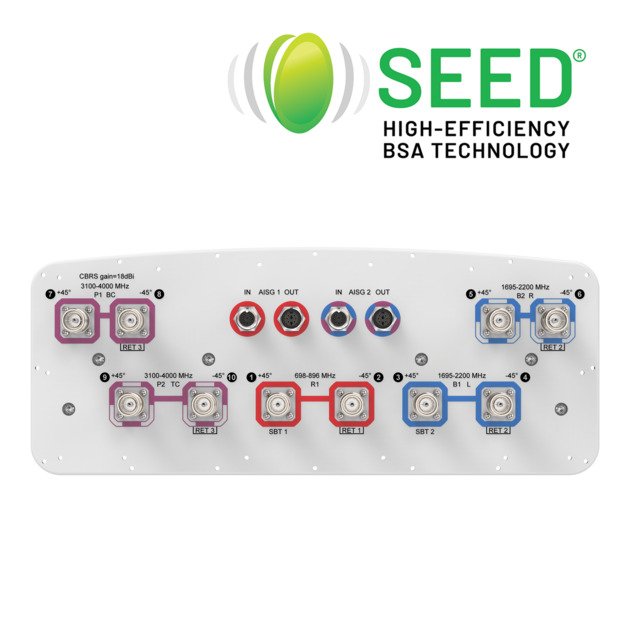

NHHSS-45C-HG-R3B

10-port Next Generation PerforMax™ sector antenna, 2x 698–896, 4x 1695–2200 MHz and 4x 3100-4000, 45° HPBW, 8ft, 3x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
Antenna optimized for higher gain with superior radiation efficiency
Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
Internal SBTs allow remote RET control from the radio over the RF jumper cable
Best in class PIM immunity
Ideal for deploying low band, mid-band and CBRS/C-Band in flagpoles and concealment solutions
Interleaved dipole technology results into an attractive, low wind load mechanical package

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
RF Connector Interface	4.3-10 Female

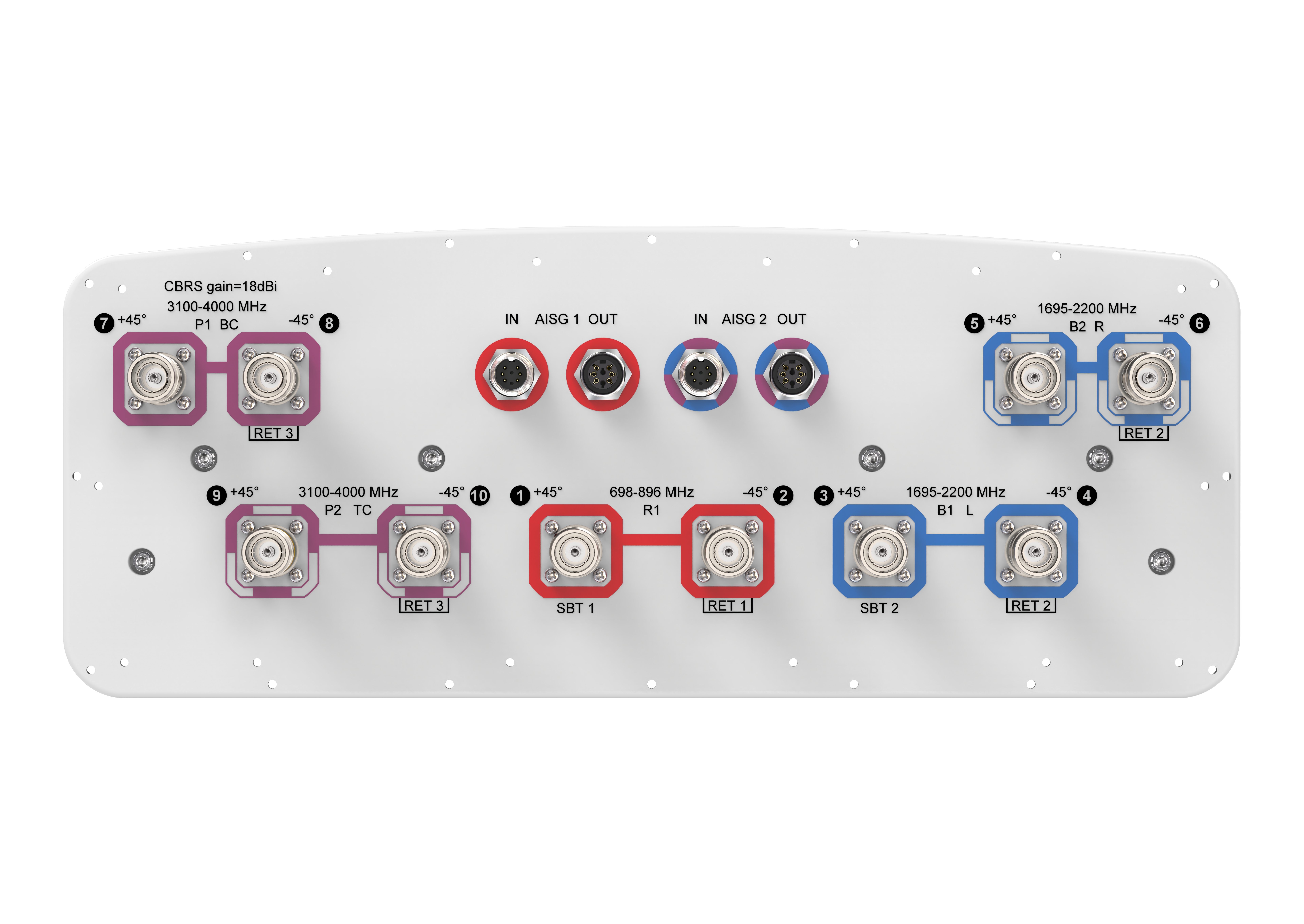

RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	4
RF Connector Quantity, low band	2
RF Connector Quantity, total	10

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (1) \| Low band (1) \| Mid band (1)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0

Width	457 mm \| 17.992 in
Depth	178 mm \| 7.008 in
Length	2437 mm \| 95.945 in
Net Weight, without mounting kit	38.5 kg \| 84.878 lb

Click on image to enlarge.

Click on image to enlarge.

Wind Loading @ Velocity, frontal	1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
