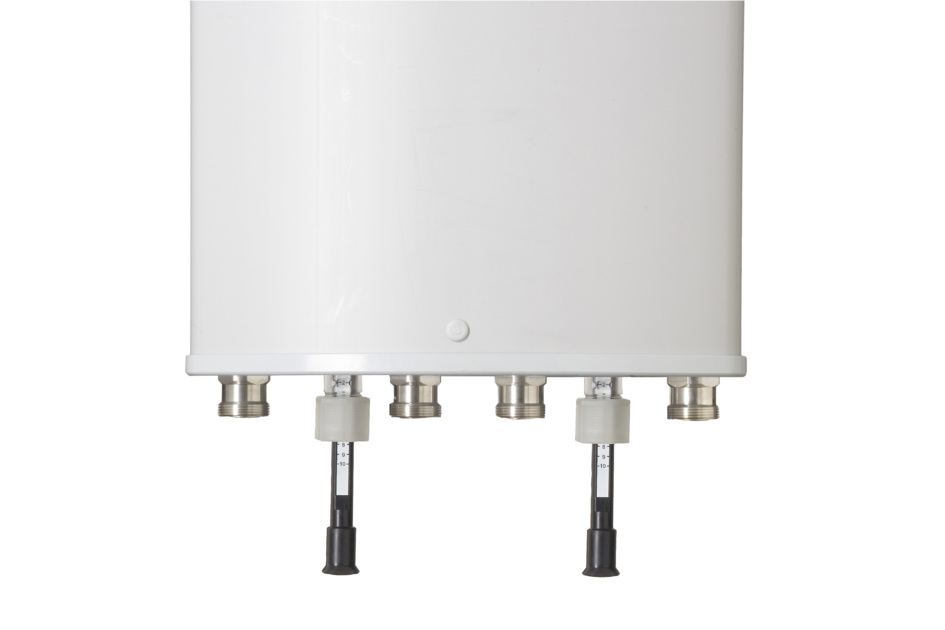

HBXX-6513DS-VTM | HBXX-6513DS-A2M
4-port sector antenna, 4x 1710–2170 MHz, 65° HPBW, RET compatible
Features and benefits
- Two DualPol® antennas under one radome
- Each antenna is independently capable of field adjustable electrical tilt
- Continuous wideband operation
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-6513DS-A2M |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 166 mm | 6.535 in |
| Length | 695 mm | 27.362 in |
| Net Weight, without mounting kit | 7.9 kg | 17.416 lb |

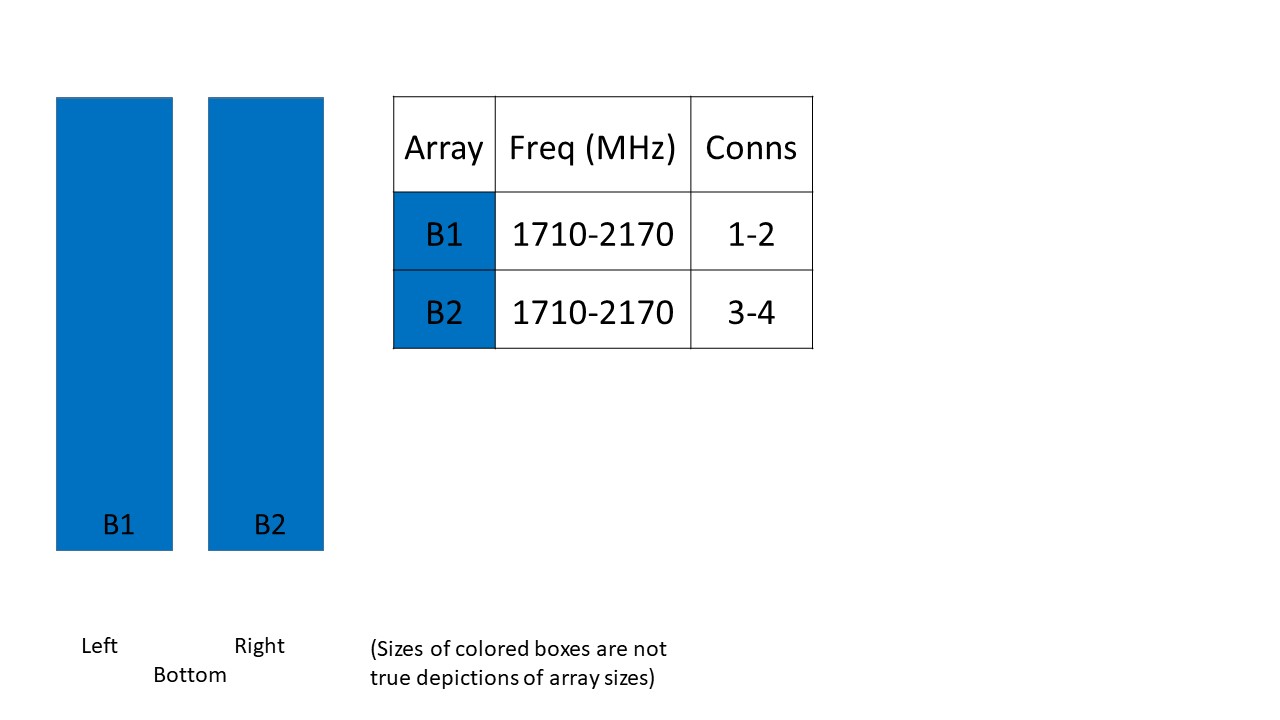

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2170 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2170 |
| Gain, dBi | 14.5 | 14.6 | 14.9 |
| Beamwidth, Horizontal, degrees | 67 | 66 | 64 |
| Beamwidth, Vertical, degrees | 14.8 | 14 | 13.4 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | 27 | 27 |
| CPR at Boresight, dB | 22 | 22 | 22 |
| CPR at Sector, dB | 7 | 8 | 8 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 223.0 N @ 150 km/h (50.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 53.0 N @ 150 km/h (11.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 259.0 N @ 150 km/h (58.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 485 mm | 19.094 in |
| Depth, packed | 349 mm | 13.74 in |
| Length, packed | 1253 mm | 49.331 in |
| Weight, gross | 17.9 kg | 39.463 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-6513DS-A2M |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 166 mm | 6.535 in |
| Length | 695 mm | 27.362 in |
| Net Weight, without mounting kit | 7.9 kg | 17.416 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2170 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2170 |
| Gain, dBi | 14.5 | 14.6 | 14.9 |
| Beamwidth, Horizontal, degrees | 67 | 66 | 64 |
| Beamwidth, Vertical, degrees | 14.8 | 14 | 13.4 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| Front-to-Back Total Power at 180° ± 30°, dB | 26 | 27 | 27 |
| CPR at Boresight, dB | 22 | 22 | 22 |
| CPR at Sector, dB | 7 | 8 | 8 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 223.0 N @ 150 km/h (50.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 53.0 N @ 150 km/h (11.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 259.0 N @ 150 km/h (58.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 485 mm | 19.094 in |
| Depth, packed | 349 mm | 13.74 in |
| Length, packed | 1253 mm | 49.331 in |
| Weight, gross | 17.9 kg | 39.463 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
