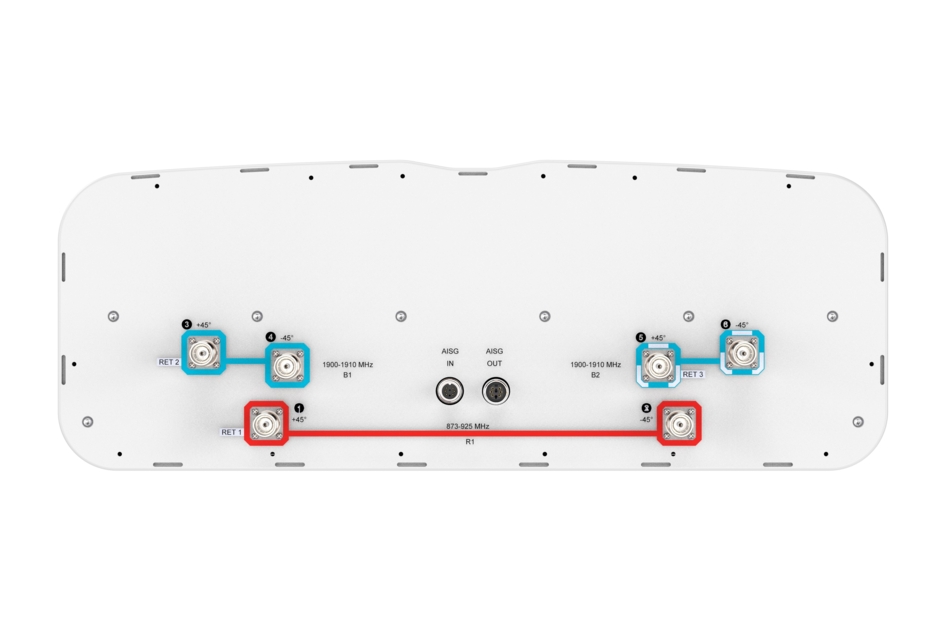

GHH-33B-R3

6-port sector antenna, 2x 873–925 and 4x 1900–1910 MHz, 33° HPBW, 3x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Excellent wind loading characteristics
  • 33° HPBW antenna for GSM-R and FRMCS track coverage
  • 20.6 dBi Low Band Gain (GSM-R), 22.1 dBi gain for FRMCS

General specifications

Antenna Type Sector
Band Multiband

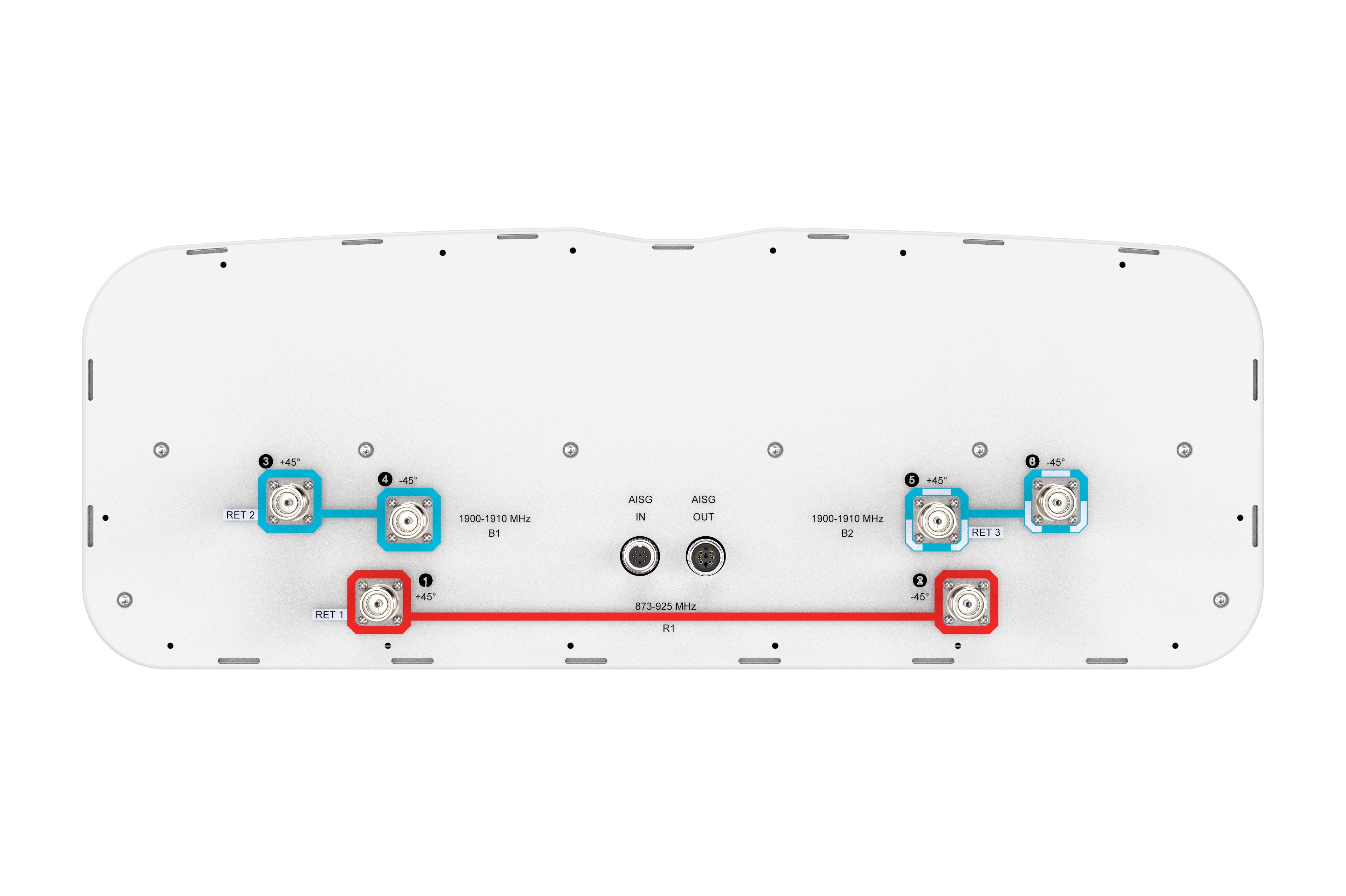

Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2250 mm | 88.583 in
Net Weight, without mounting kit 48.2 kg | 106.263 lb

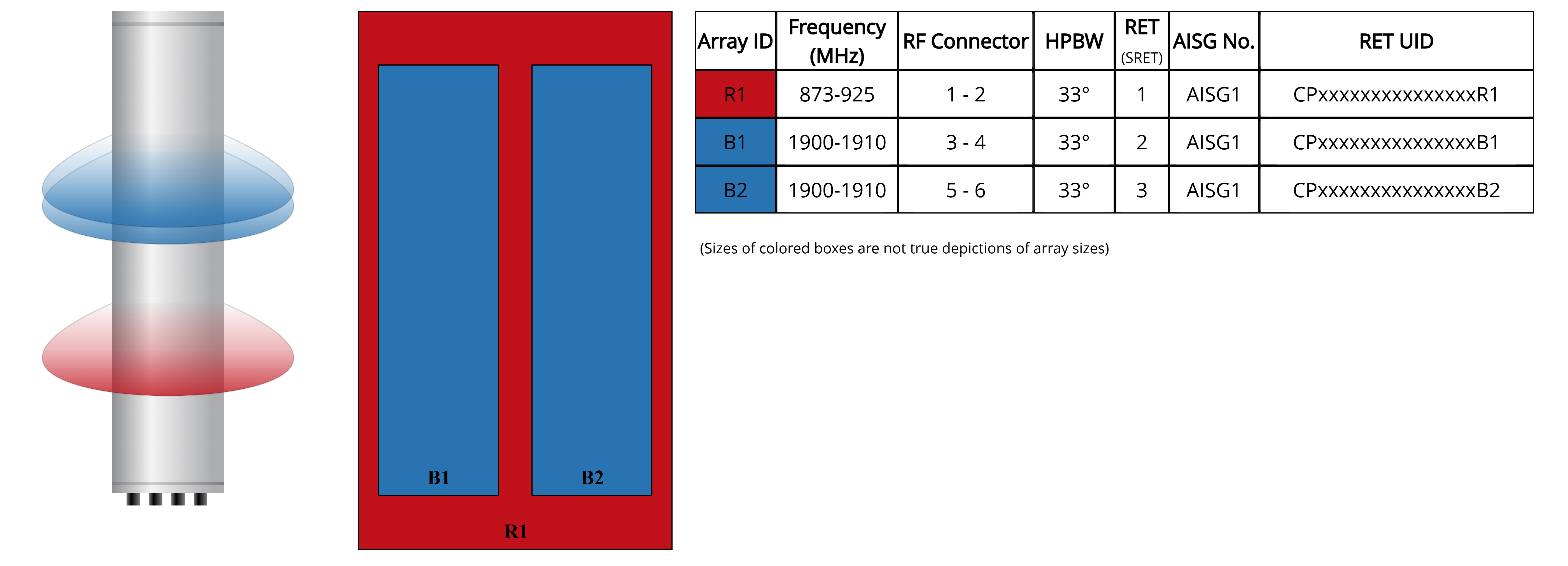

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 873 – 925 MHz | 1900 – 1910 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 B1,B2
Frequency Band, MHz 873–925 1900–1910
RF Port 1-2 3-6
Gain, dBi 20.6 22.1
Beamwidth, Horizontal, degrees 30 29
Beamwidth, Vertical, degrees 8.1 5.1
Beam Tilt, degrees 2–12 2–10
USLS (First Lobe), dB 18 19
Front-to-Back Ratio at 180°, dB 39 38
CPR at Boresight, dB 21 23
Isolation, Cross Polarization, dB 25 25
Isolation, Inter-band, dB 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port at 50°C, maximum, watts 300 250

Mechanical specifications

Wind Loading @ Velocity, frontal 940.0 N @ 150 km/h (211.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,412.0 N @ 150 km/h (317.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 965.0 N @ 150 km/h (216.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 2402 mm | 94.567 in
Weight, gross 67.5 kg | 148.812 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2250 mm | 88.583 in
Net Weight, without mounting kit 48.2 kg | 106.263 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 873 – 925 MHz | 1900 – 1910 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 B1,B2
Frequency Band, MHz 873–925 1900–1910
RF Port 1-2 3-6
Gain, dBi 20.6 22.1
Beamwidth, Horizontal, degrees 30 29
Beamwidth, Vertical, degrees 8.1 5.1
Beam Tilt, degrees 2–12 2–10
USLS (First Lobe), dB 18 19
Front-to-Back Ratio at 180°, dB 39 38
CPR at Boresight, dB 21 23
Isolation, Cross Polarization, dB 25 25
Isolation, Inter-band, dB 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port at 50°C, maximum, watts 300 250

Mechanical specifications

Wind Loading @ Velocity, frontal 940.0 N @ 150 km/h (211.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,412.0 N @ 150 km/h (317.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 965.0 N @ 150 km/h (216.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 2402 mm | 94.567 in
Weight, gross 67.5 kg | 148.812 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
