2NN2H4-33B-R6B
24-Port antenna, 8 x 698-896 MHz, 16 x 1710-2400 MHz, 33° HPBW, 6 x RETs, 4x SBTs, 6ft Length
Features and benefits
- Provides 4 ports per beam for low band and 8 ports per beam for mid band
- Twin beam patterns are optimized for minimum beam crossover providing for improved 4G and 5G data throughput
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 16 |
| RF Connector Quantity, low band | 8 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 4 female | 4 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 17 | Port 5 | Port 9 |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 59.5 kg | 131.175 lb |

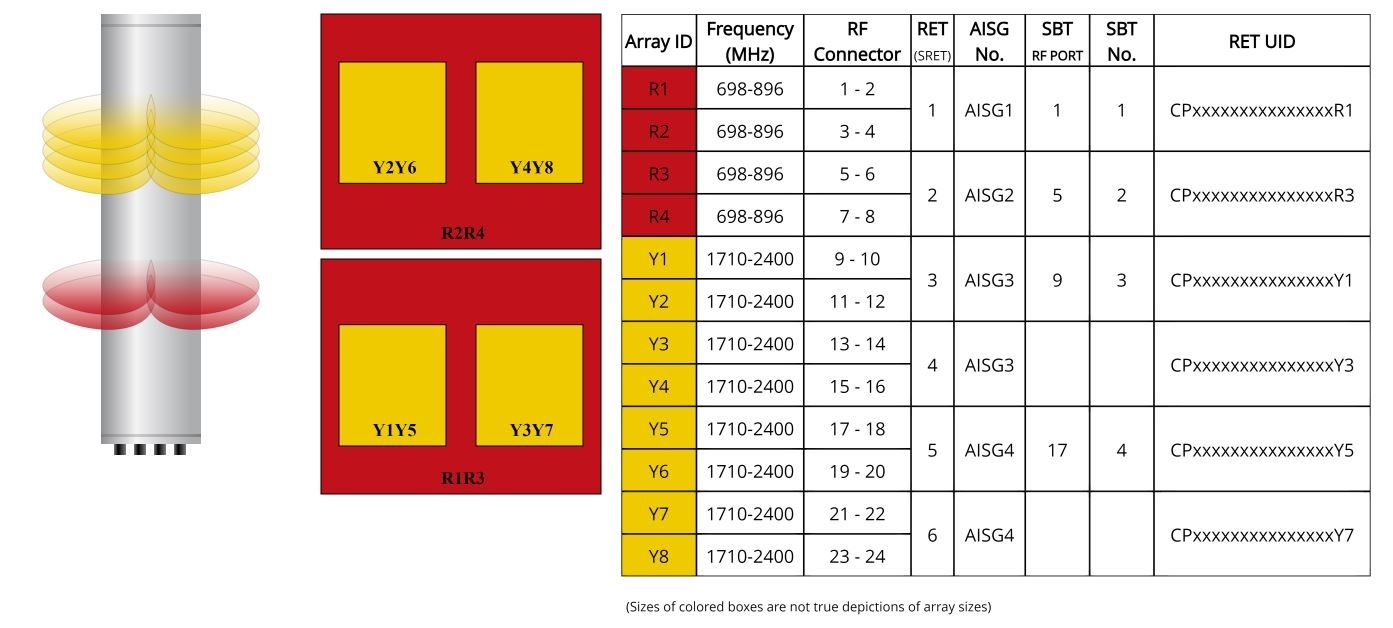

Array layout
| Click on image to enlarge. |

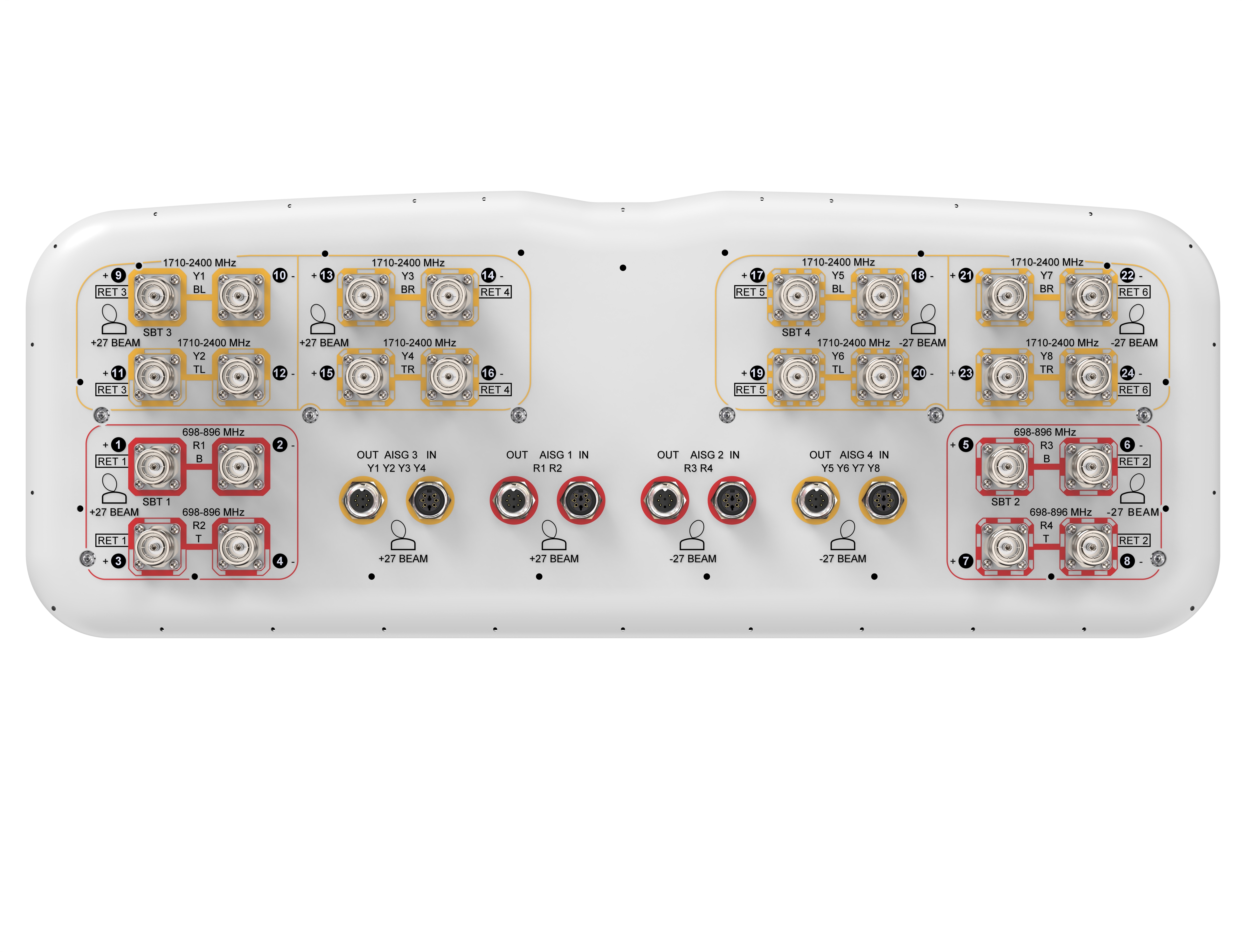

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1710 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,000 W @ 50 °C |
Electrical specifications
| R1-R4 | R1-R4 | Y1-Y8 | Y1-Y8 | Y1-Y8 | Y1-Y8 | |
| Frequency Band, MHz | 698–806 | 824–896 | 1710–1880 | 1850–1990 | 1920–2200 | 2300–2400 |
| RF Port | 1-8 | 1-8 | 9-24 | 9-24 | 9-24 | 9-24 |
| Gain, dBi | 14.0 | 14.6 | 16.2 | 17.1 | 17.9 | 18.4 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 41 | 37 | 34 | 33 | 30 | 28 |
| Beamwidth, Vertical, degrees | 25 | 22.4 | 10.2 | 9.3 | 8.7 | 7.7 |
| Beam Tilt, degrees | 2–20 | 2–20 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 18 | 15 | 16 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 27 | 30 | 31 | 34 | 32 | 32 |
| CPR at Boresight, dB | 18 | 18 | 16 | 16 | 17 | 14 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 206.0 N @ 150 km/h (46.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 911.0 N @ 150 km/h (204.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 446.0 N @ 150 km/h (100.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1982 mm | 78.032 in |
| Weight, gross | 80 kg | 176.370 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 16 |
| RF Connector Quantity, low band | 8 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 4 female | 4 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 17 | Port 5 | Port 9 |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 59.5 kg | 131.175 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1710 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,000 W @ 50 °C |
Electrical specifications
| R1-R4 | R1-R4 | Y1-Y8 | Y1-Y8 | Y1-Y8 | Y1-Y8 | |
| Frequency Band, MHz | 698–806 | 824–896 | 1710–1880 | 1850–1990 | 1920–2200 | 2300–2400 |
| RF Port | 1-8 | 1-8 | 9-24 | 9-24 | 9-24 | 9-24 |
| Gain, dBi | 14.0 | 14.6 | 16.2 | 17.1 | 17.9 | 18.4 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 41 | 37 | 34 | 33 | 30 | 28 |
| Beamwidth, Vertical, degrees | 25 | 22.4 | 10.2 | 9.3 | 8.7 | 7.7 |
| Beam Tilt, degrees | 2–20 | 2–20 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 18 | 15 | 16 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 27 | 30 | 31 | 34 | 32 | 32 |
| CPR at Boresight, dB | 18 | 18 | 16 | 16 | 17 | 14 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 206.0 N @ 150 km/h (46.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 911.0 N @ 150 km/h (204.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 446.0 N @ 150 km/h (100.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1982 mm | 78.032 in |
| Weight, gross | 80 kg | 176.370 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
