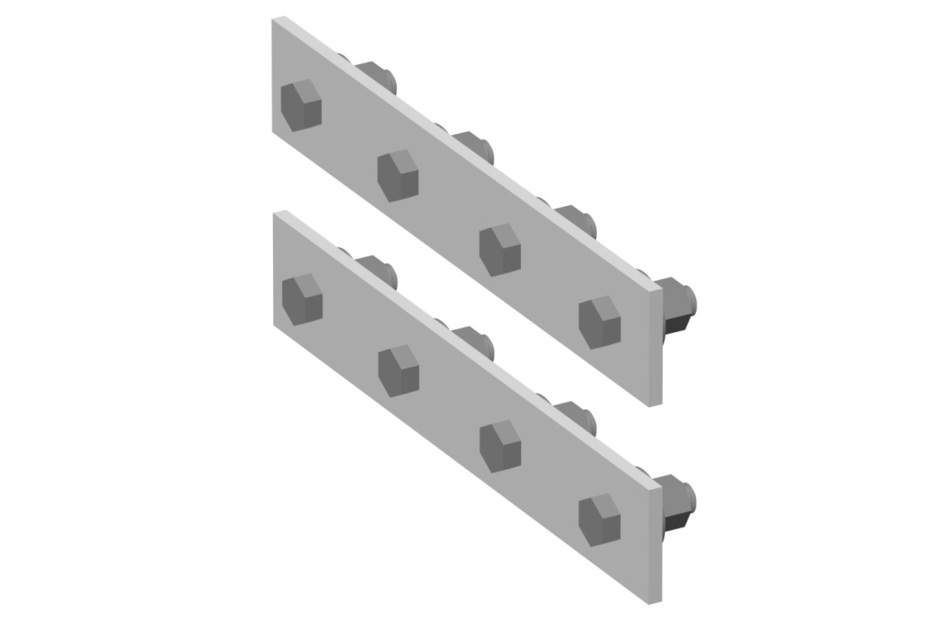

WS-K400
Straight Splice for Safety Grated Channel, 24 in
Specifications
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Safety grated waveguide bridge |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |

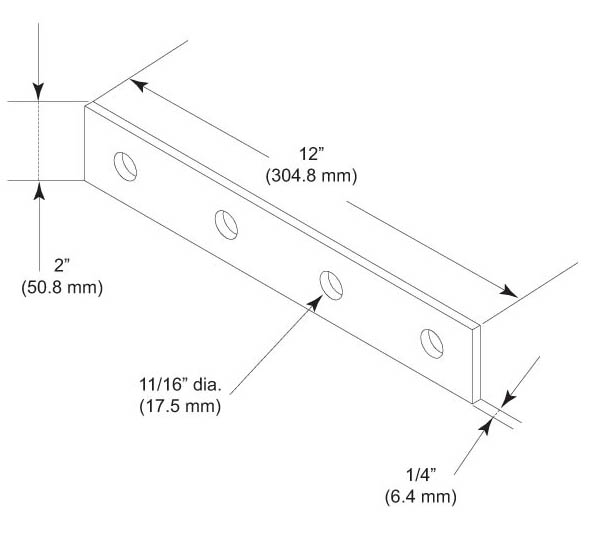

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Safety grated waveguide bridge |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
