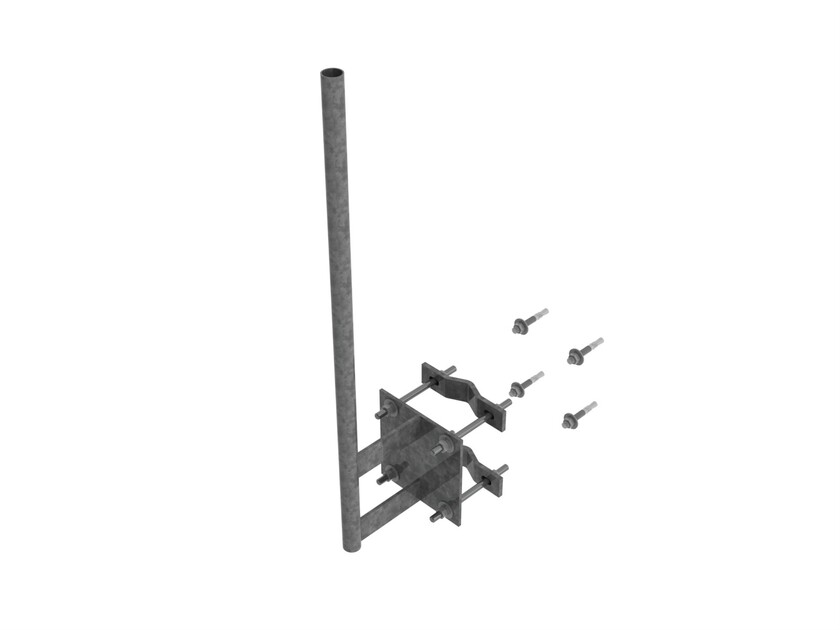

GPS-U
GPS Mount Kit
Specifications
Product classification
| Product Type | Mounting hardware |
General specifications
| Mounting | Pipe, 38.1–114.3 mm (1-1/2 in to 4-1/2 in) OD | Walls, 38.1–114.3 mm (1-1/2 in to 4-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 203.2 mm | 8 in |
| Pipe Length | 914.4 mm | 36 in |
| Pipe Outer Diameter | 33.02 mm | 1.3 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 7.3 kg | 16.094 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Product Type | Mounting hardware |
General specifications
| Mounting | Pipe, 38.1–114.3 mm (1-1/2 in to 4-1/2 in) OD | Walls, 38.1–114.3 mm (1-1/2 in to 4-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 203.2 mm | 8 in |
| Pipe Length | 914.4 mm | 36 in |
| Pipe Outer Diameter | 33.02 mm | 1.3 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 7.3 kg | 16.094 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
