VC-GPSWM
GPS Antenna Wall Mount, 1.05 in OD x 48 in
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
| Pipe, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 1219.2 mm | 48 in |
| Pipe Length | 1219.2 mm | 48 in |
| Pipe Outer Diameter | 27.94 mm | 1.1 in |

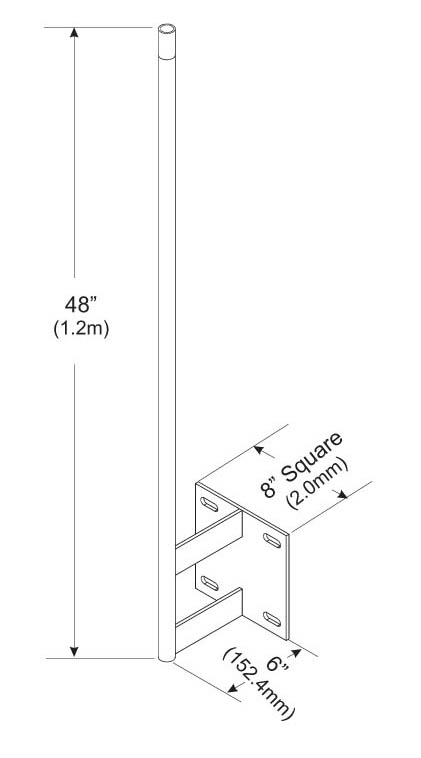

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 4.8 kg | 10.582 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
| Pipe, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 1219.2 mm | 48 in |
| Pipe Length | 1219.2 mm | 48 in |
| Pipe Outer Diameter | 27.94 mm | 1.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 4.8 kg | 10.582 lb |

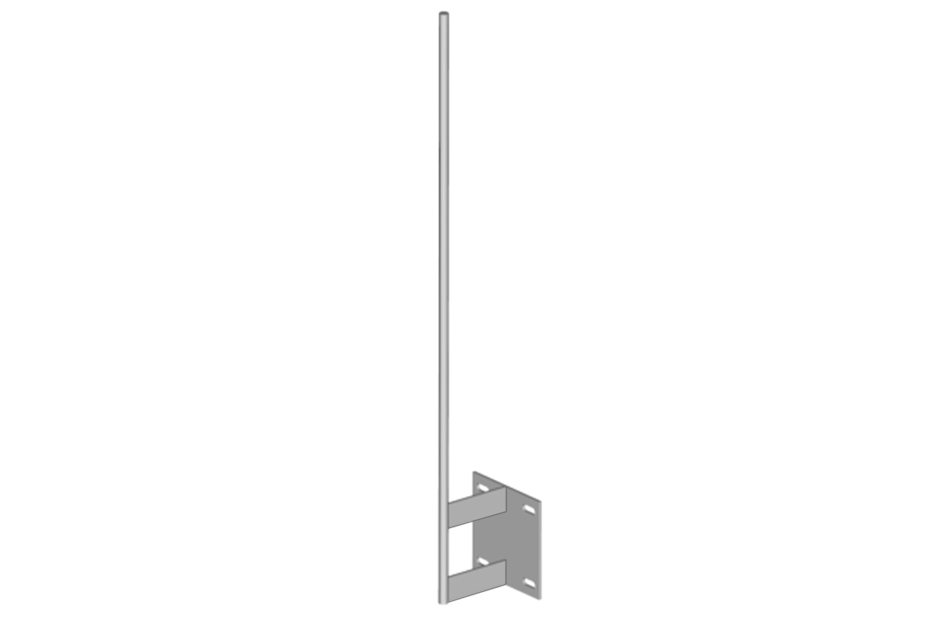

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
