MT-F1588
Wall-Mount Bracket for 12 coaxial cable runs
Specifications
Product classification
| Product Type | Mounting bracket |
General specifications
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Walls |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 50.8 mm | 2 in |
| Length | 812.8 mm | 32 in |
| Hole Size | 3/4 in |

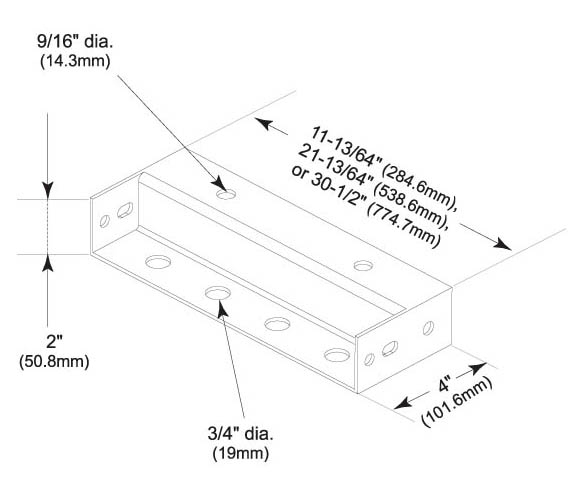

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Mounting bracket |
General specifications
| Cable Runs, quantity | 12 |
| Hole, quantity | 12 |
| Mounting | Walls |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 50.8 mm | 2 in |
| Length | 812.8 mm | 32 in |
| Hole Size | 3/4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
