SMU2080-01
Base product: MOUNT-ACCESSORIES

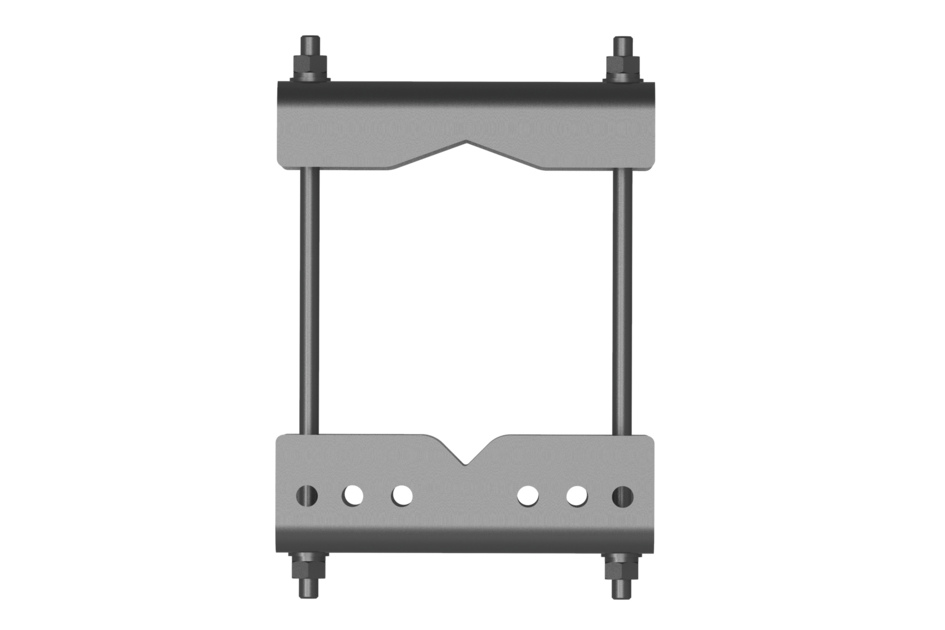

Universal Saddle Mount (single) for straight or tapered legs up to 8 in OD, 8 in angle 60°, or 6 in angle 90°
Specifications
Product classification
| Product Type | Saddle mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.800 mm | 12 in |
| Length | 457.200 mm | 18 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 12.6 lb | 27.778 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Saddle mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.800 mm | 12 in |
| Length | 457.200 mm | 18 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 12.6 lb | 27.778 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
