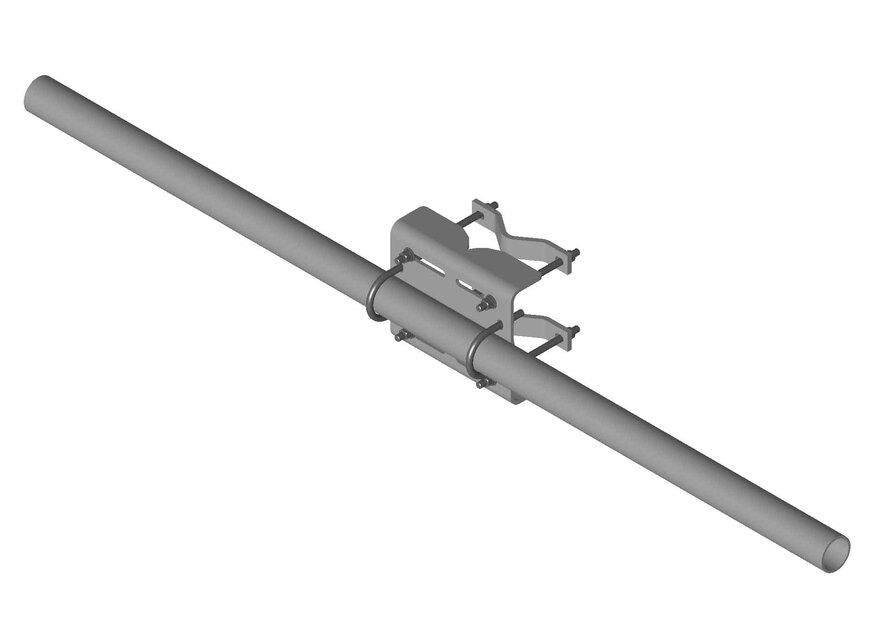

MD-SSHD-8R
Tower Leg Mounted Microwave Antenna Channel Support Kit, Heavy Duty 96 in, includes pipe
Specifications
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 304.800 mm | 12 in |
| Width | 2438.4 mm | 96 in |
| Length | 355.600 mm | 14 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Clamps | Pipes |
| Packaging quantity | 1 |
| Weight, net | 63.5 kg | 139.993 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 304.800 mm | 12 in |
| Width | 2438.4 mm | 96 in |
| Length | 355.600 mm | 14 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Clamps | Pipes |
| Packaging quantity | 1 |
| Weight, net | 63.5 kg | 139.993 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
