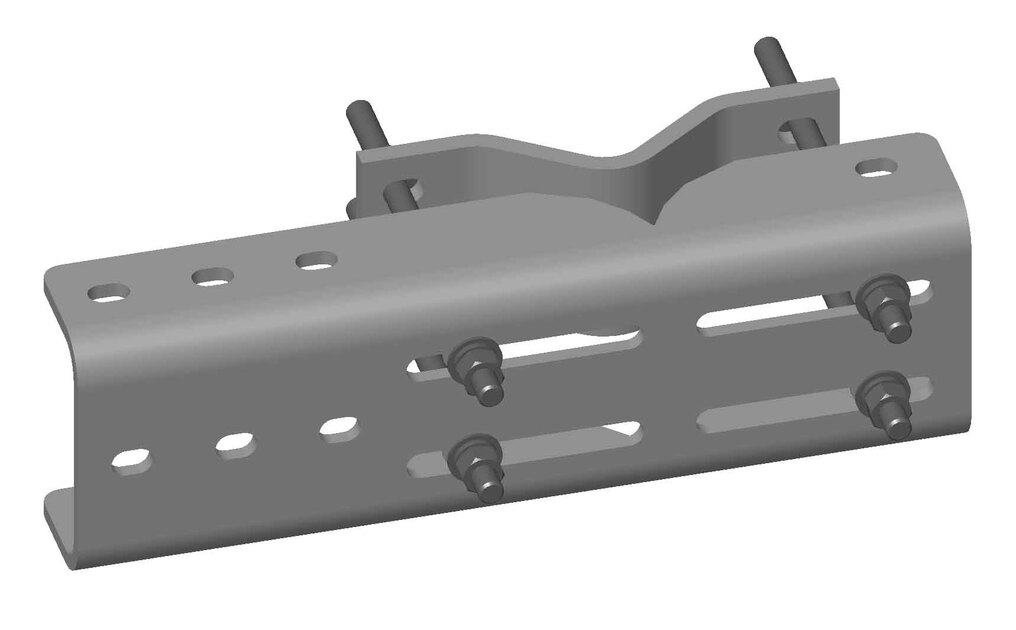

MD-CS-B
Face Mounted Microwave Strut Support for up to 3-1/2 in face pipes
Specifications
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.8 mm | 12 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 24.5 kg | 54.013 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.8 mm | 12 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 24.5 kg | 54.013 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
