TP-100
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

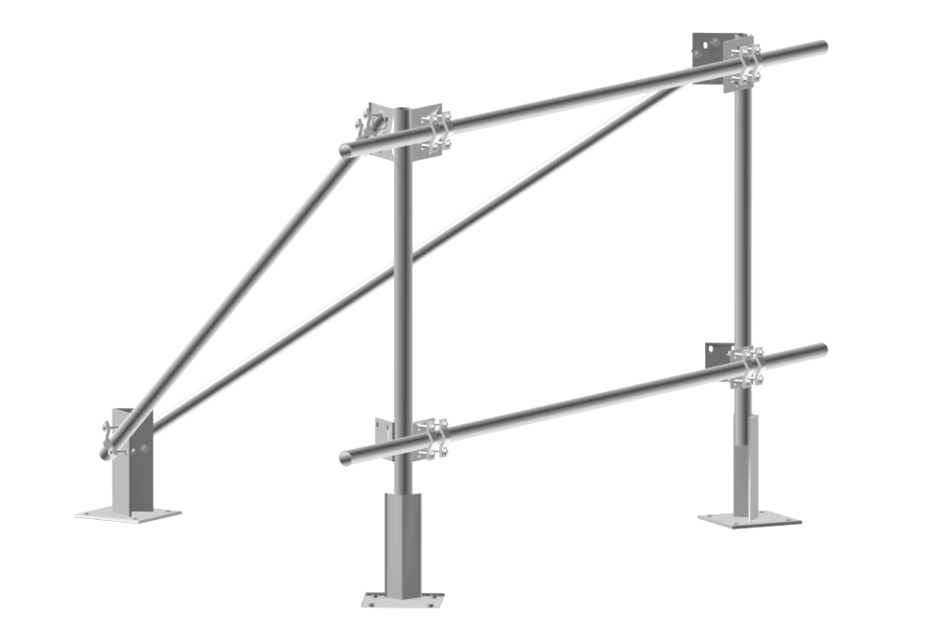

Rooftop Mount
Specifications
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Penetrating |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.353 m | 11 ft |
| Width | 3352.8 mm | 132 in |
| Length | 2.896 m | 9.5 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in |

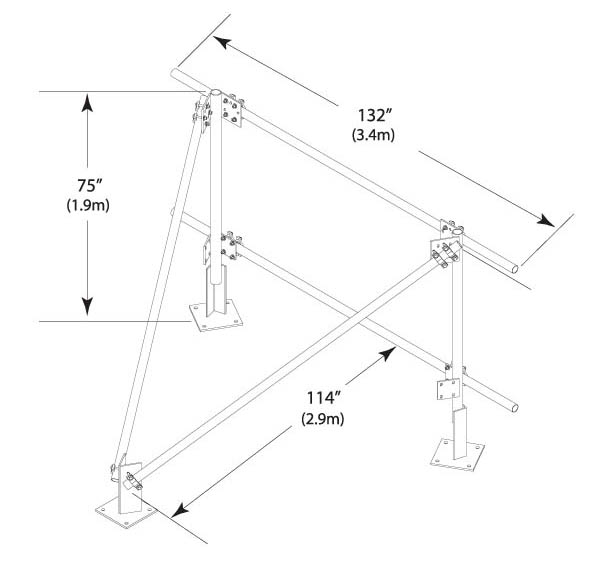

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 173.7 kg | 382.942 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Penetrating |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.353 m | 11 ft |
| Width | 3352.8 mm | 132 in |
| Length | 2.896 m | 9.5 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 173.7 kg | 382.942 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
