RF-NL12-3-96
Base product: RF-SERIES-BALLAST-FRAMES

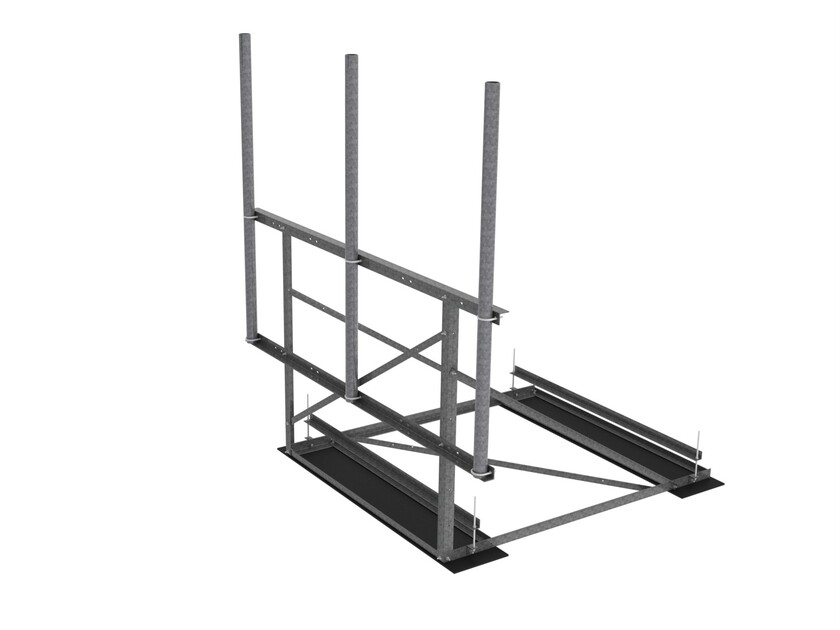

Non-Penetrating Roof Frame, 12 ft face, Three 3-1/2 in OD x 96 in pipes
Specifications
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3200.4 mm | 126 in |
| Length | 2.53 m | 8.3 ft |
| Pipe Length | 2438.4 mm | 96 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 345 kg | 760.594 lb |
