MT-423
Base product: TRIPOD-MOUNTS

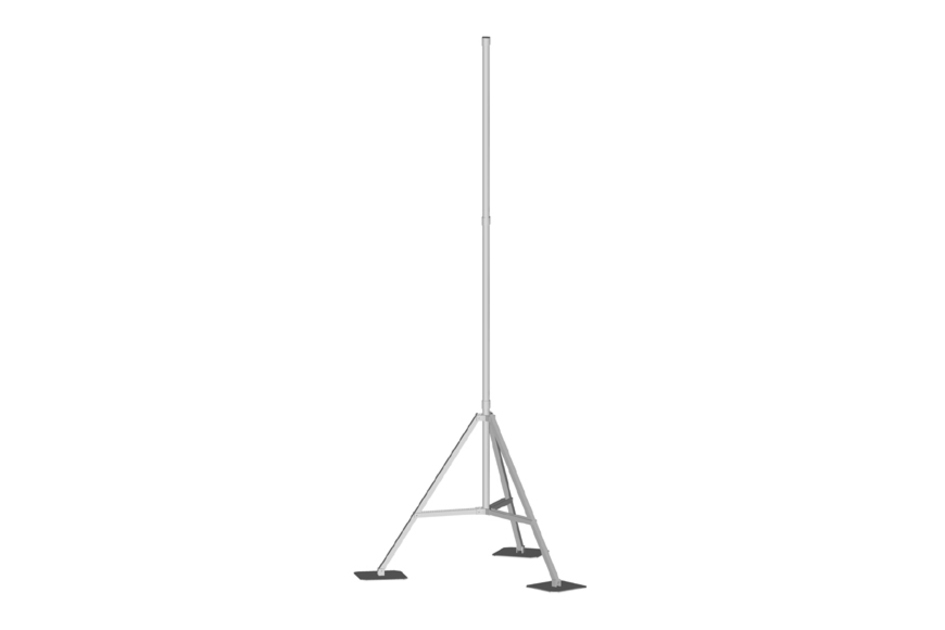

Aluminum Tripod Mount, 2-3/8 in OD x 10 ft pipe
Specifications
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1574.8 mm | 62 in |
| Width | 1574.8 mm | 62 in |
| Length | 3.048 m | 10 ft |
| Pipe Length | 3200.4 mm | 126 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Aluminum |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 15.9 kg | 35.053 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1574.8 mm | 62 in |
| Width | 1574.8 mm | 62 in |
| Length | 3.048 m | 10 ft |
| Pipe Length | 3200.4 mm | 126 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Aluminum |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount |
| Packaging quantity | 1 |
| Weight, net | 15.9 kg | 35.053 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
