XP-PM-S
Base product: RRU-MOUNTS

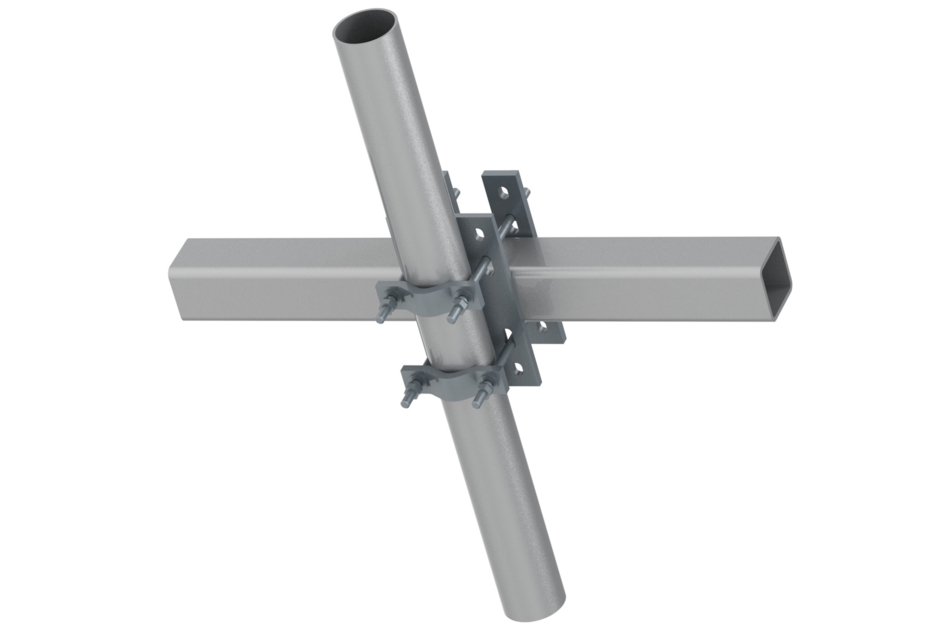

XP-PM RRU Mount Bracket Kit for Mounting of (1) RRU to 3.5-4.5" Square or 3-6" Rectanglar Tube. 2-3/8" to 3-1/2" OD Mount Pipes ordered separately.
Specifications
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Square support rail |
| Pipe, quantity | 0 |
Dimensions
| Height | 279.400 mm | 11 in |
| Length | 155.702 mm | 6.13 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 76.200 mm | 3 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Crossover plates | Hardware |
| Packaging quantity | 1 |
| Weight, net | 8.165 kg | 18 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Square support rail |
| Pipe, quantity | 0 |
Dimensions
| Height | 279.400 mm | 11 in |
| Length | 155.702 mm | 6.13 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 76.200 mm | 3 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Crossover plates | Hardware |
| Packaging quantity | 1 |
| Weight, net | 8.165 kg | 18 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
