RR-FA3
Base product: RRU-MOUNTS

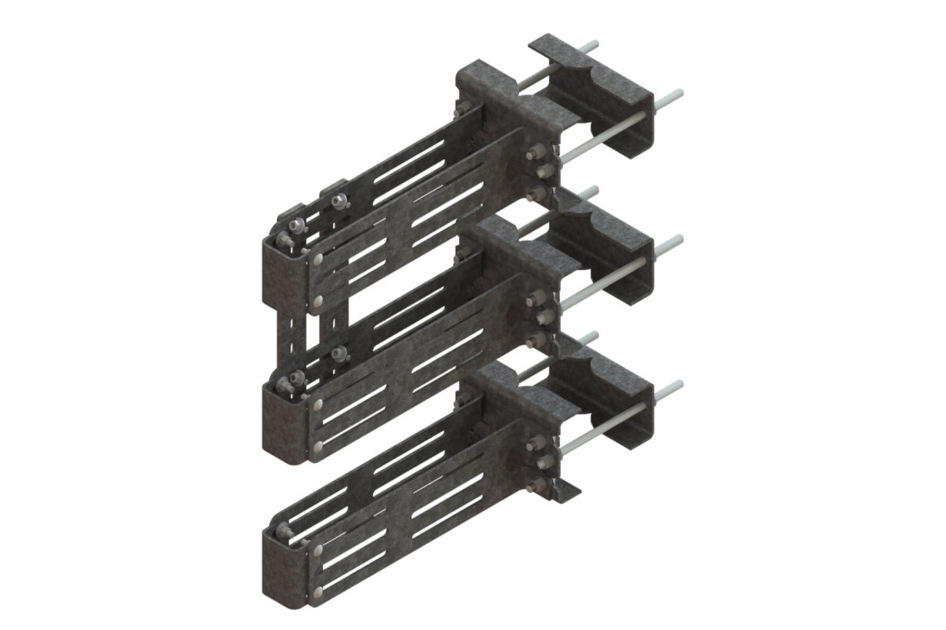

Fast Access RRU Triple Bracket Mount Kit with 3 sets of brackets for Back-to-Back Mounting of RRUs plus additional equipment to Round, Straight or Tapered legs
Specifications
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Round and angle legs |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Length | 457.2 mm | 18 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 142.24 mm | 5.6 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 3 |
| Weight, net | 37.648 kg | 83 lb |
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Round and angle legs |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Length | 457.2 mm | 18 in |
| Mounting Diameter 2, maximum | 152.400 mm | 6 in |
| Mounting Diameter 2, minimum | 38.100 mm | 1.5 in |
| Mounting Diameter, maximum | 142.24 mm | 5.6 in |
| Mounting Diameter, minimum | 60.960 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 3 |
| Weight, net | 37.648 kg | 83 lb |
