PM-RU3T
Base product: RRU-MOUNTS

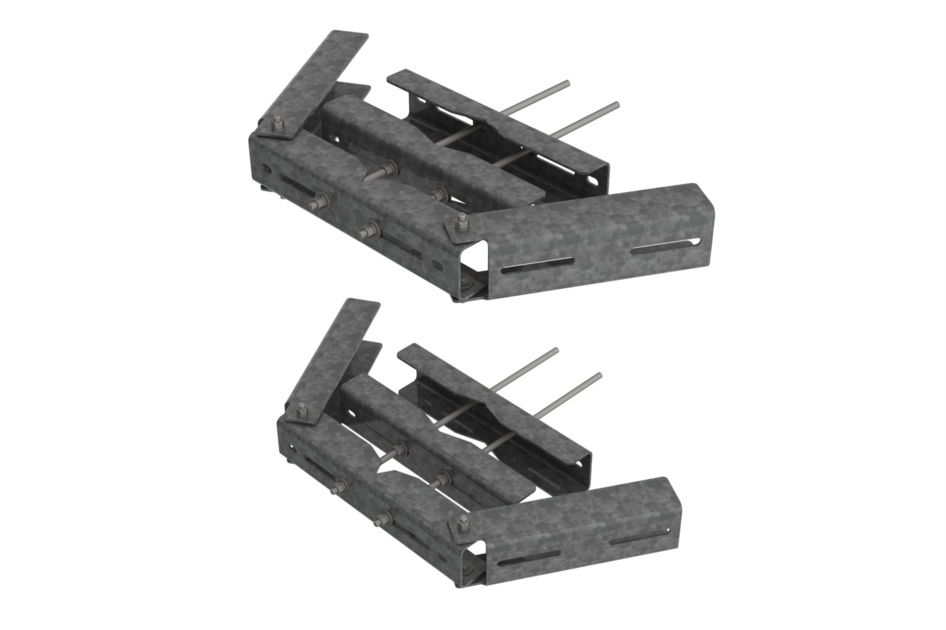

Universal RRU Tower Mount Kit for Straight or Tapered legs
Specifications
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 38.918 kg | 85.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 38.918 kg | 85.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
