PM-RU3
Base product: RRU-MOUNTS

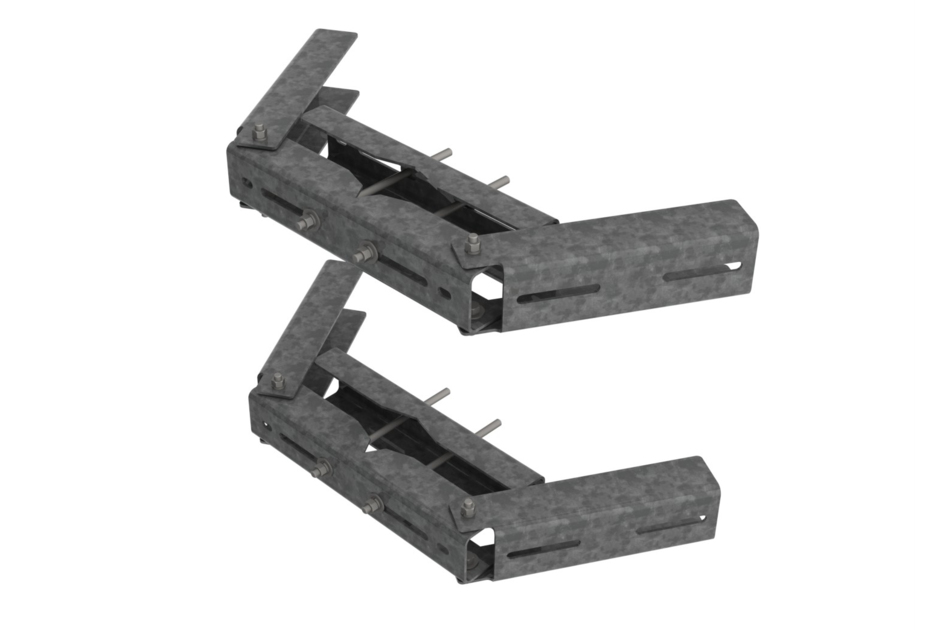

Universal RRU Tower Mount Kit for Straight Legs
Specifications
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Straight legs up to 142.9 mm (5-5/8 in) |
| Tower Taper | Non-tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 142.875 mm | 5.625 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 30.799 kg | 67.9 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Straight legs up to 142.9 mm (5-5/8 in) |
| Tower Taper | Non-tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 142.875 mm | 5.625 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 30.799 kg | 67.9 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
