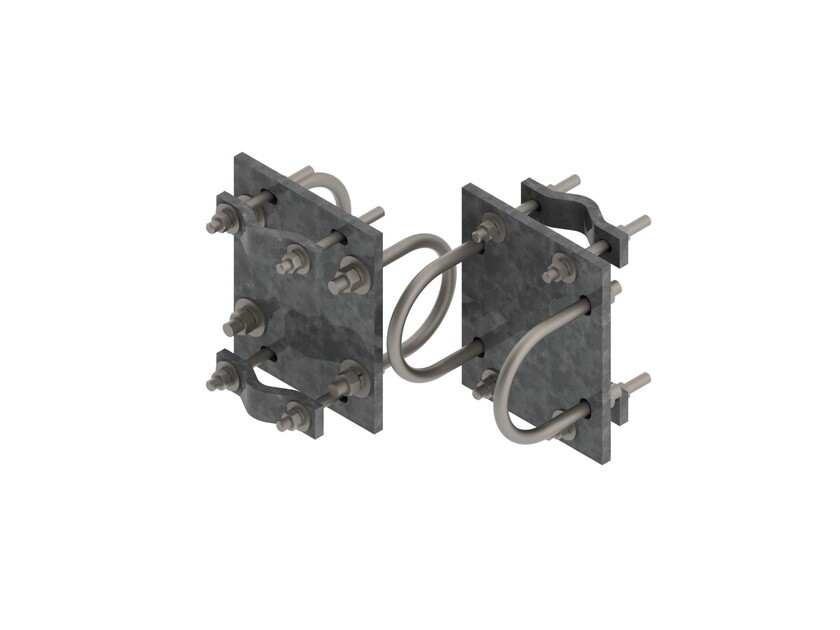

XP-197-35UD
Double Crossover Plate kit for MT-197 Stand-off: Mounts two 2-3/8"-3-1/2" Pipes to 3-1/2" Round or 4" Square Members
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Stand-off arm |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | Hardware |
| Packaging quantity | 1 |
| Weight, net | 15.4 kg | 33.951 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Stand-off arm |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | Hardware |
| Packaging quantity | 1 |
| Weight, net | 15.4 kg | 33.951 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
