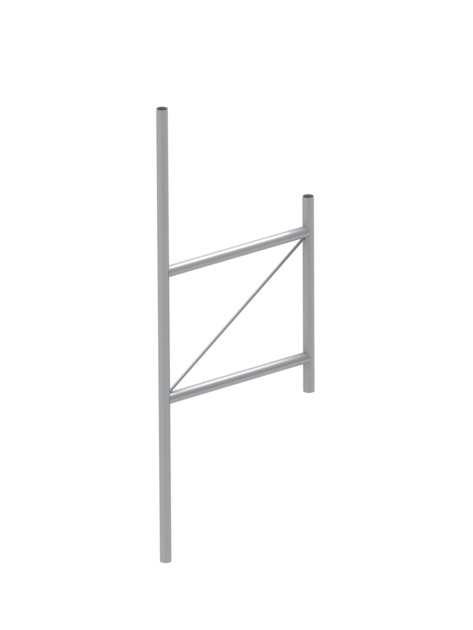

P-400-HD
Panel Antenna Stand-Off Bracket, 48 in Heavy Duty 2-7/8" OD x 120"
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 3048.000 mm | 120 in |
| Width | 76.2 mm | 3 in |
| Length | 1219.2 mm | 48 in |
| Stand-off Distance | 1219.2 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 37.44 kg | 82.541 lb |
