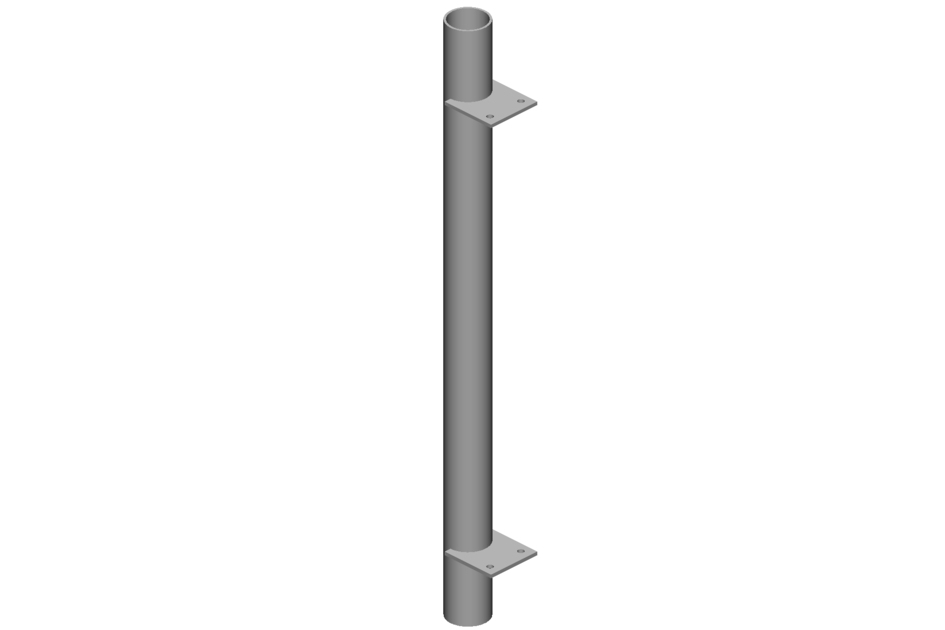

MT-395
Standard Pipe Mount, 4-1/2 in OD x 63 in
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Saddle mounts |
| Note | One 4 ft microwave antenna per sector, with antenna stiff arm |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 177.8 mm | 7 in |
| Width | 127 mm | 5 in |
| Length | 1600.2 mm | 63 in |
| Pipe Length | 1600.2 mm | 63 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |

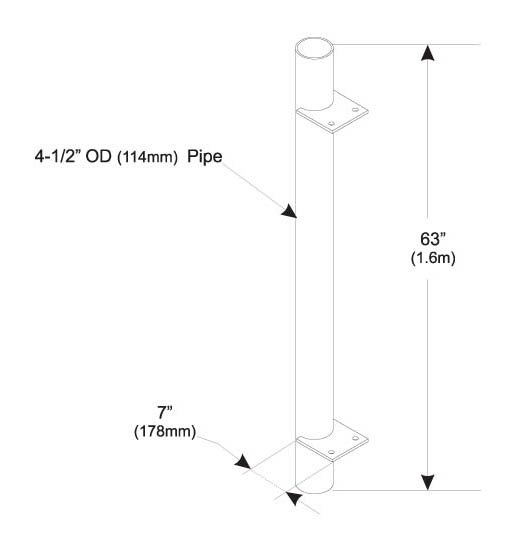

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 90 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 29.3 kg | 64.595 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Saddle mounts |
| Note | One 4 ft microwave antenna per sector, with antenna stiff arm |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 177.8 mm | 7 in |
| Width | 127 mm | 5 in |
| Length | 1600.2 mm | 63 in |
| Pipe Length | 1600.2 mm | 63 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 90 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 29.3 kg | 64.595 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
