BC-40-16D

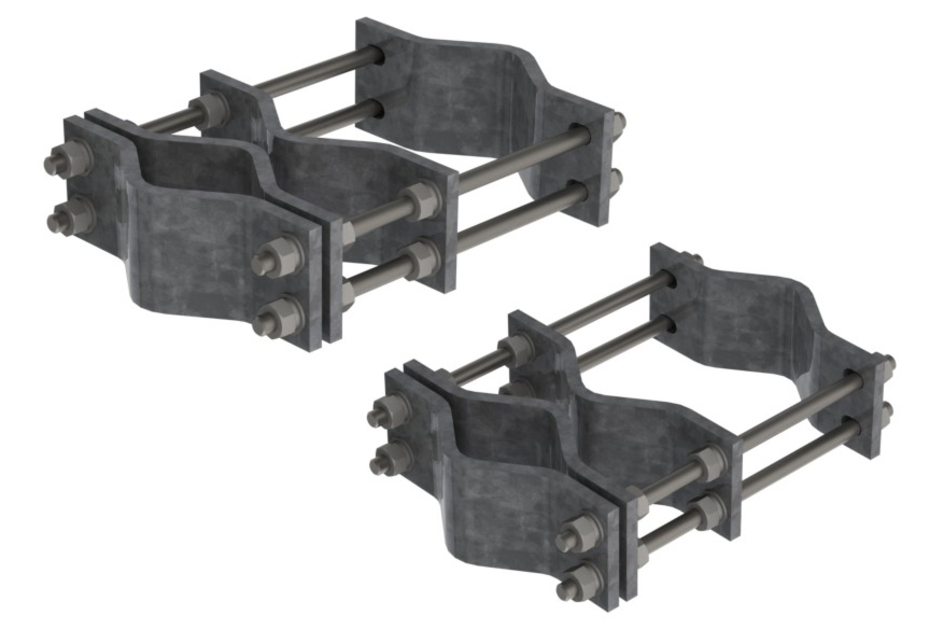

Pipe-to-Pipe Clamp, joins two 4 in to 9 in OD round members
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter 2, maximum | 228.6 mm | 9 in |
| Mounting Diameter 2, minimum | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 228.6 mm | 9 in |
| Mounting Diameter, minimum | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 31.5 kg | 69.446 lb |
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter 2, maximum | 228.6 mm | 9 in |
| Mounting Diameter 2, minimum | 101.6 mm | 4 in |
| Mounting Diameter, maximum | 228.6 mm | 9 in |
| Mounting Diameter, minimum | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 31.5 kg | 69.446 lb |
