RM-SS-S
Base product: MOUNT-ACCESSORIES

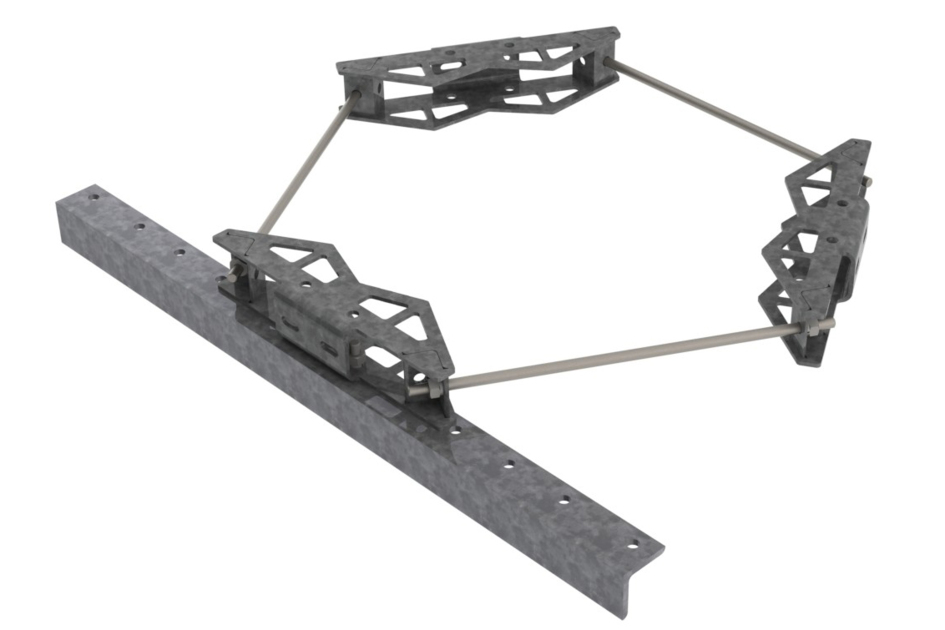

Ring Mount Tie Back Support Kit
Specifications
Product classification
| Product Type | Ring mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 1219.2 mm | 48 in |
| Length | 1219.2 mm | 48 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Mounting Circumference, maximum | 2392.68 mm | 94.2 in |
| Mounting Circumference, minimum | 797.56 mm | 31.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 31.8 lb | 70.107 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Ring mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 1219.2 mm | 48 in |
| Length | 1219.2 mm | 48 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Mounting Circumference, maximum | 2392.68 mm | 94.2 in |
| Mounting Circumference, minimum | 797.56 mm | 31.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 31.8 lb | 70.107 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
