MTC3914M3
Base product: G22-SERIES-MONOPOLE

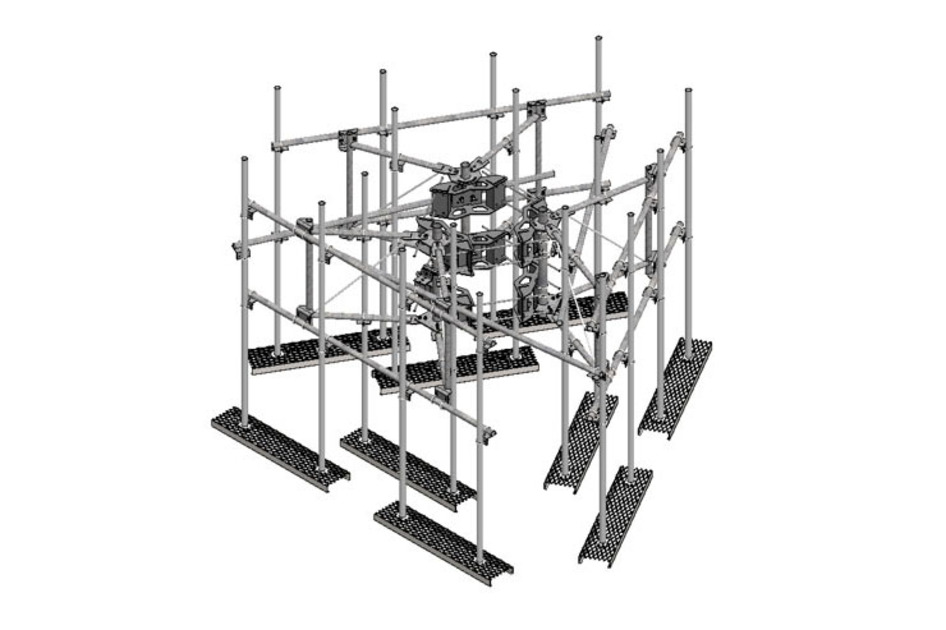

G22 High Capacity 3-Sector Monopole Frame with Work Platform, 10 ft 6 in face, includes twelve 126 in pipes; For patents, see www.cs-pat.com.
Specifications
Product classification
| Product Type | High capacity monopole sector frame |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Face Width | 3.2 m | 10.5 ft |
| Width | 3200.4 mm | 126 in |
| Pipe Length | 3200.4 mm | 126 in |
| Face Support Pipe Diameter | 60.325 mm | 2.375 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 1117.6 mm | 44 in |
| Mounting Circumference, maximum | 1270 mm | 50 in |
| Mounting Circumference, minimum | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes (12) | Platform | Ring mounts (2) | Sector frames (3) | Stiff arm |
| Packaging quantity | 1 |
| Weight, net | 1225.607 kg | 2702 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | High capacity monopole sector frame |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Face Width | 3.2 m | 10.5 ft |
| Width | 3200.4 mm | 126 in |
| Pipe Length | 3200.4 mm | 126 in |
| Face Support Pipe Diameter | 60.325 mm | 2.375 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 1117.6 mm | 44 in |
| Mounting Circumference, maximum | 1270 mm | 50 in |
| Mounting Circumference, minimum | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes (12) | Platform | Ring mounts (2) | Sector frames (3) | Stiff arm |
| Packaging quantity | 1 |
| Weight, net | 1225.607 kg | 2702 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
