MTC3619
Base product: MC-K-SERIES

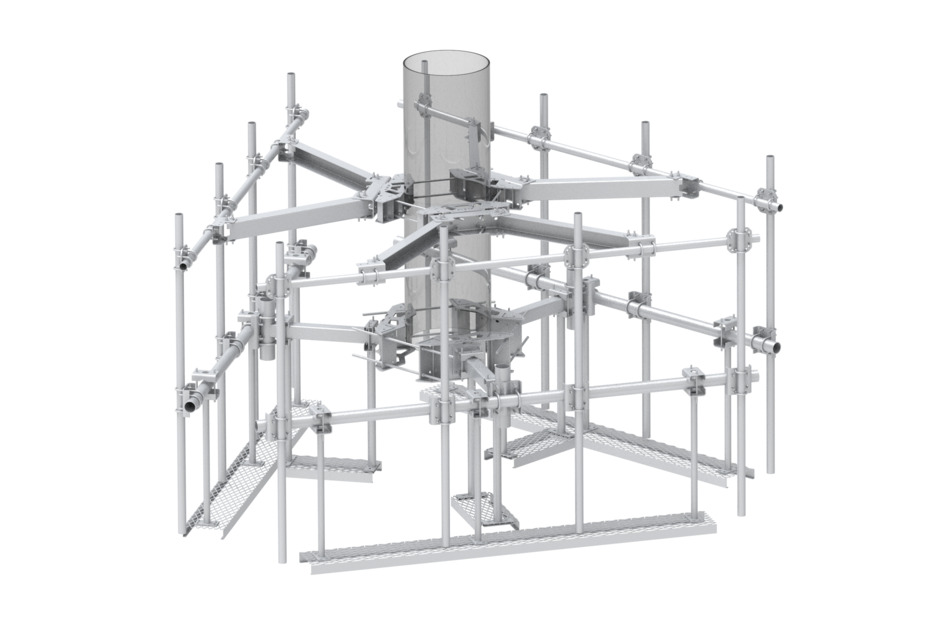

Monopole T-Frame kit with VSR Reinforcement and Work Platforms, 15 in to 50 in OD, 12 ft 6 in face, includes (12) 2-3/8in x 96in pipes
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Cellular pipe frames | Pipe mounts | Platform | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 985.919 kg | 2173.58 lb |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Cellular pipe frames | Pipe mounts | Platform | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 985.919 kg | 2173.58 lb |
