MC-RM1030-3
Base product: RING-MOUNTS

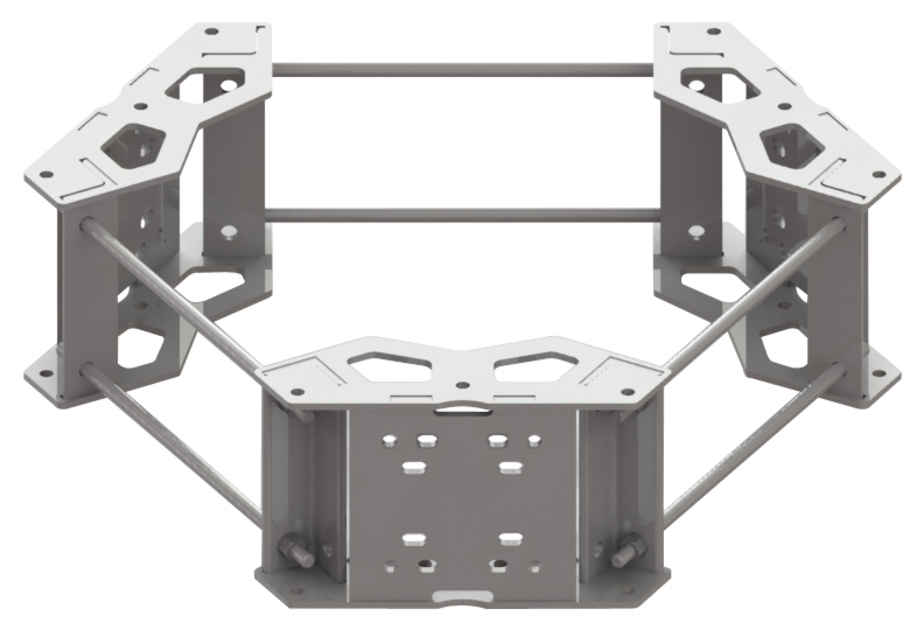

Universal Ring Mount, 10 in to 30 in OD
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Pipe Outer Diameter | 0.000 mm | 0 in |
| Mounting Circumference, maximum | 2392.68 mm | 94.2 in |
| Mounting Circumference, minimum | 797.56 mm | 31.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 140 mph (BWS) at 150 ft AGL | 160 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 86.319 kg | 190.3 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Mounting Diameter, maximum | 762 mm | 30 in |
| Mounting Diameter, minimum | 254 mm | 10 in |
| Pipe Outer Diameter | 0.000 mm | 0 in |
| Mounting Circumference, maximum | 2392.68 mm | 94.2 in |
| Mounting Circumference, minimum | 797.56 mm | 31.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 140 mph (BWS) at 150 ft AGL | 160 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 86.319 kg | 190.3 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
