MC-PK12L4-12-96
Base product: MC-PK-SERIES

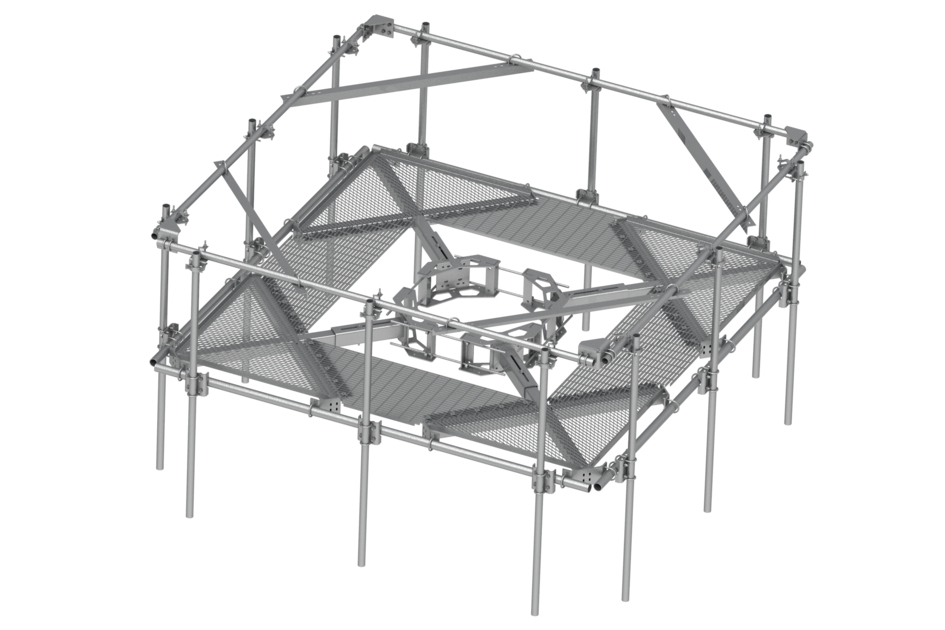

4-Sector Monopole Co-location Platform kit, 30 in to 60 in OD, 12 ft 6 in face, with (12) 96in x 2-3/8OD Antenna Pipes
Specifications
Product classification
| Product Type | Monopole platform kit |
General specifications
| Mounting | Monopole, 762–1524 mm (30–60 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1524 mm | 60 in |
| Mounting Diameter, minimum | 762 mm | 30 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 4785.36 mm | 188.4 in |
| Mounting Circumference, minimum | 2392.68 mm | 94.2 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 12 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1459.660 kg | 3218 lb |
Product classification
| Product Type | Monopole platform kit |
General specifications
| Mounting | Monopole, 762–1524 mm (30–60 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1524 mm | 60 in |
| Mounting Diameter, minimum | 762 mm | 30 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 4785.36 mm | 188.4 in |
| Mounting Circumference, minimum | 2392.68 mm | 94.2 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 12 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1459.660 kg | 3218 lb |
