MC-DPM-B
Base product: MOUNT-ACCESSORIES

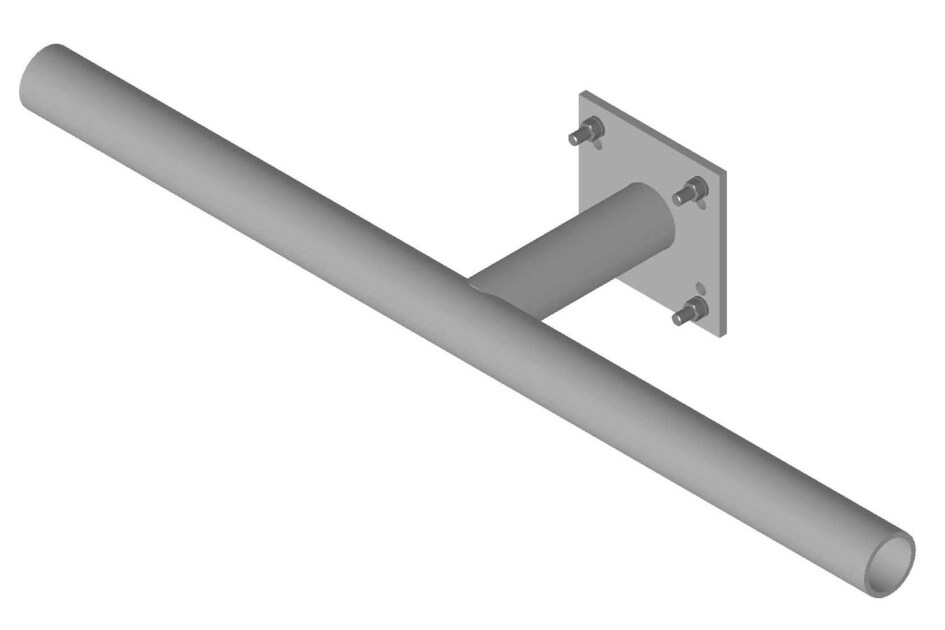

Monopole Co-location Dual Pipe Mount Base Kit, 4 ft 9 in face, pipe ordered separately
Specifications
Product classification
| Product Type | Monopole dual pipe mount kit |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 1.463 m | 4.8 ft |
| Width | 1447.8 mm | 57 in |
| Length | 355.6 mm | 14 in |
| Stand-off Distance | 355.6 mm | 14 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Dual pipe frames | Pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 32.7 lb | 72.091 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Monopole dual pipe mount kit |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 1.463 m | 4.8 ft |
| Width | 1447.8 mm | 57 in |
| Length | 355.6 mm | 14 in |
| Stand-off Distance | 355.6 mm | 14 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Dual pipe frames | Pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 32.7 lb | 72.091 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
