E14R00P54
Dual Band Tower Mounted Amplifier, 1800//2100 MHz, 12 dB, 2 BTS & 2 ANT ports, with 4.3-10 connectors, AISG with 1 RET connector (1 device with 2 sub-units each)
Features and benefits
- Industry leading PIM performance
- Single AISG with 1 RET connector
- 2 input ports and 2 output ports
- Designed to boost UP-Link Coverage and KPIs
- New 4.3-10 connectors for improved PIM performance and size reduction
- 1 device with 2 sub-units
Specifications
Product classification
| Product Type | 2-BTS:2-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 280 mm | 11.024 in |
| Width | 175 mm | 6.890 in |
| Depth | 98 mm | 3.858 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, LNA | DCS 1800 | IMT 2100 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
| Port Designation | ANT | ANT |
| License Band | DCS 1800, LNA | IMT 2100, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1710–1785 | 1920–1980 |
| Bandwidth, MHz | 75.00 | 60.00 |
| Gain, nominal, dB | 12.0 | 12.0 |
| Noise Figure, typical, dB | 1.7 | 1.6 |
| Total Group Delay, typical, ns | 120 | 80 |
| Return Loss, typical, dB | 20 | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 | 2.3 |
| Return Loss - Bypass Mode, typical, dB | 16 | 16 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 1805–1880 | 2110–2170 |
| Bandwidth, MHz | 75.00 | 60.00 |
| Insertion Loss, typical, dB | 0.50 | 0.30 |
| Total Group Delay, typical, ns | 25 | 15 |
| Return Loss, typical, dB | 20 | 20 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -160 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

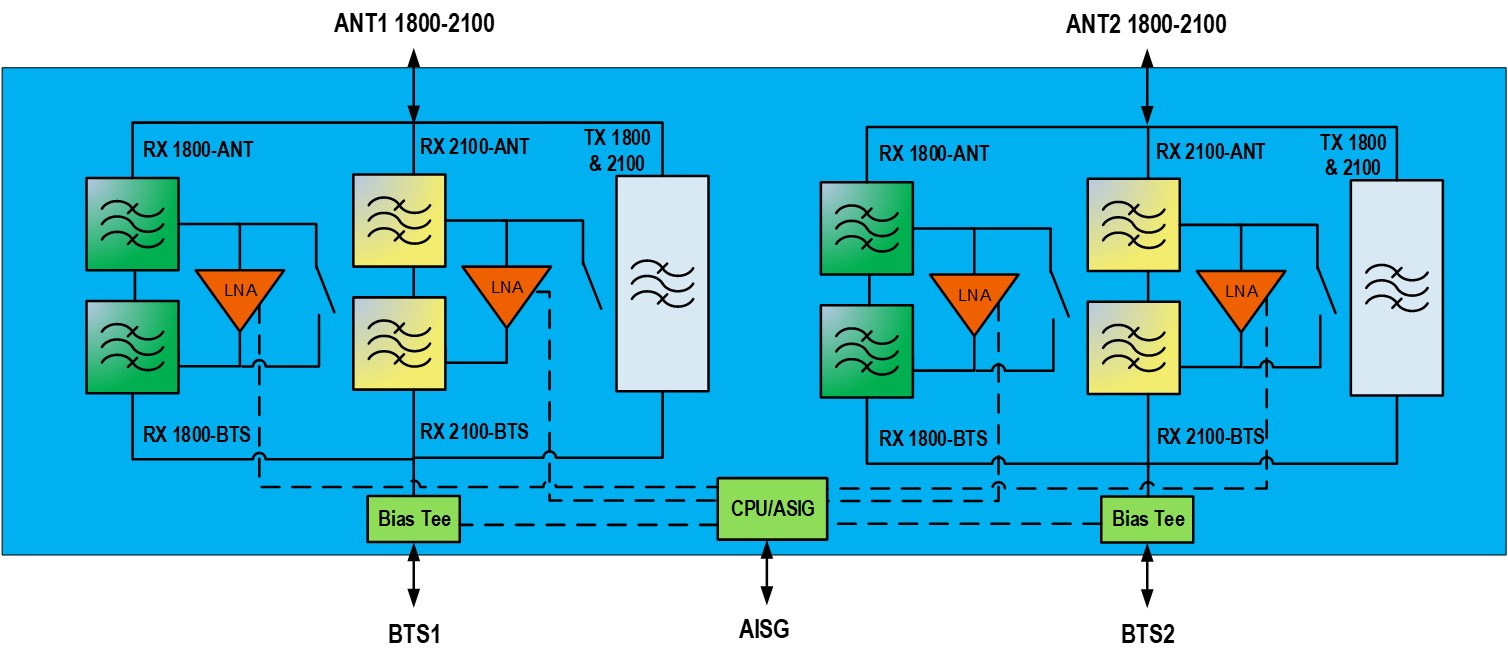

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 4.8 L |
| Weight, net | 6.5 kg | 14.330 lb |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
Product classification
| Product Type | 2-BTS:2-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 280 mm | 11.024 in |
| Width | 175 mm | 6.890 in |
| Depth | 98 mm | 3.858 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| License Band, LNA | DCS 1800 | IMT 2100 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
| Port Designation | ANT | ANT |
| License Band | DCS 1800, LNA | IMT 2100, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1710–1785 | 1920–1980 |
| Bandwidth, MHz | 75.00 | 60.00 |
| Gain, nominal, dB | 12.0 | 12.0 |
| Noise Figure, typical, dB | 1.7 | 1.6 |
| Total Group Delay, typical, ns | 120 | 80 |
| Return Loss, typical, dB | 20 | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 | 2.3 |
| Return Loss - Bypass Mode, typical, dB | 16 | 16 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 1805–1880 | 2110–2170 |
| Bandwidth, MHz | 75.00 | 60.00 |
| Insertion Loss, typical, dB | 0.50 | 0.30 |
| Total Group Delay, typical, ns | 25 | 15 |
| Return Loss, typical, dB | 20 | 20 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -160 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 4.8 L |
| Weight, net | 6.5 kg | 14.330 lb |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
