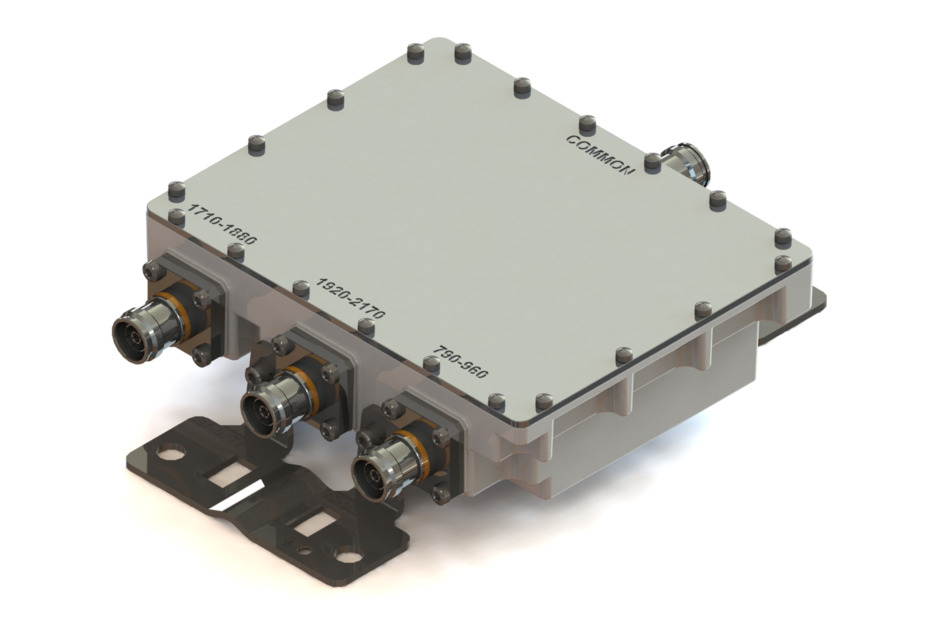

E12F05P92
Triplexer 900/1800/2100, dc bypass on all ports, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- dc/AISG pass-through on all frequency ports
- New 4.3-10 connectors for improved PIM performance and size reduction
- Suitable for feeders cables reduction
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC81821 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 151 mm | 5.945 in |
| Width | 56 mm | 2.205 in |
| Depth | 192 mm | 7.559 in |
| Mounting Pipe Diameter Range | 40–160 mm |

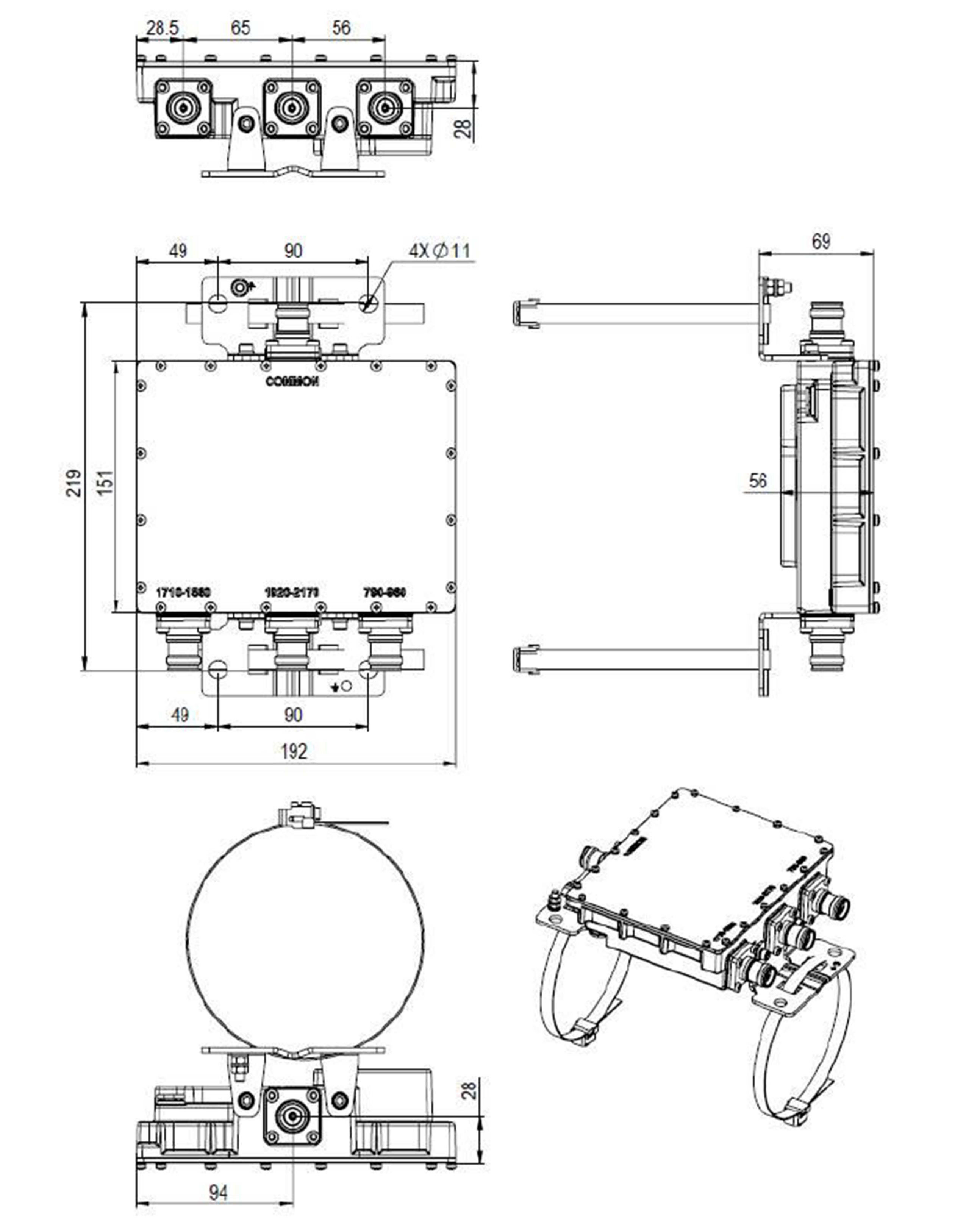

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | CEL 850 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | LMR 800 | LMR 900 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 790-960 | 1710-1880 | 1920-2170 |
| License Band | CEL 850, Band Pass CEL 900, Band Pass EDD 800, Band Pass LMR 800, Band Pass LMR 900, Band Pass | DCS 1800, Band Pass | IMT 2100, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 790–960 | 1710–1880 | 1920–2170 |
| Insertion Loss, typical, dB | 0.15 | 0.20 | 0.20 |
| Return Loss, typical, dB | 24 | 24 | 24 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, PEP, maximum, W | 3,000 | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -160 | -160 | -160 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

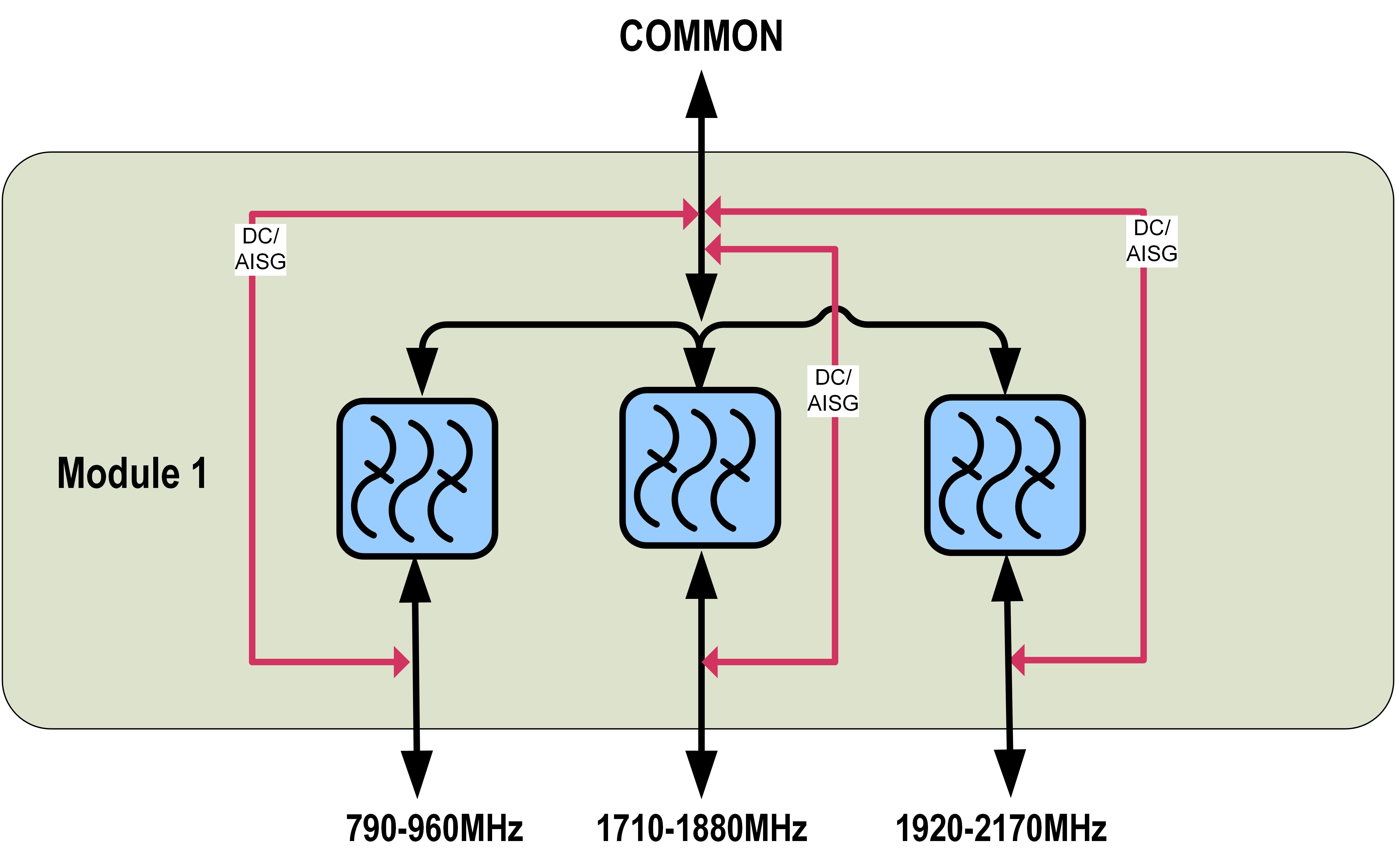

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.6 L |
| Weight, net | 2.6 kg | 5.732 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC81821 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 151 mm | 5.945 in |
| Width | 56 mm | 2.205 in |
| Depth | 192 mm | 7.559 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | CEL 850 | CEL 900 | DCS 1800 | EDD 800 | IMT 2100 | LMR 800 | LMR 900 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 790-960 | 1710-1880 | 1920-2170 |
| License Band | CEL 850, Band Pass; CEL 900, Band Pass; EDD 800, Band Pass; LMR 800, Band Pass; LMR 900, Band Pass | DCS 1800, Band Pass | IMT 2100, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 790–960 | 1710–1880 | 1920–2170 |
| Insertion Loss, typical, dB | 0.15 | 0.20 | 0.20 |
| Return Loss, typical, dB | 24 | 24 | 24 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, PEP, maximum, W | 3,000 | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -160 | -160 | -160 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.6 L |
| Weight, net | 2.6 kg | 5.732 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
