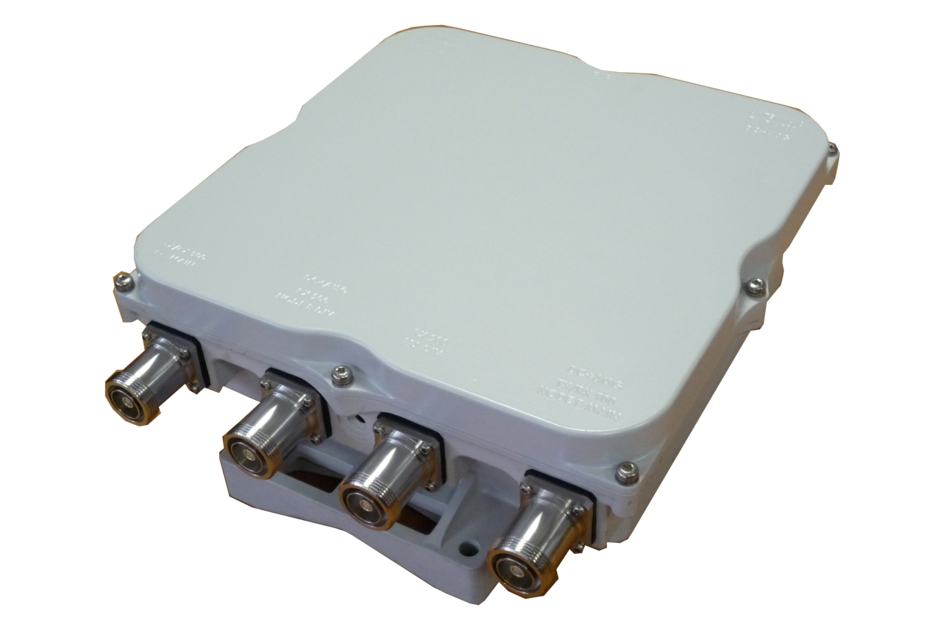

E15V90P20
SpectrumShare Passive Filter for GSM 900 and UMTS 900
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Application | Outdoor |
| AISG Carrier | 2176 KHz ± 100 ppm |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 280 mm | 11.024 in |
| Width | 92.5 mm | 3.642 in |
| Depth | 279 mm | 10.984 in |

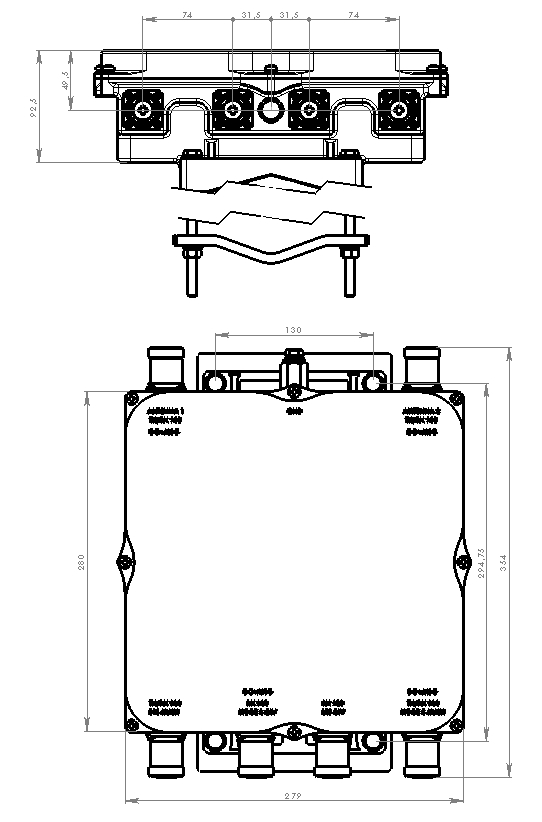

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| 3rd Order IMD typical | -158 dBc |
| Isolation Between Paths, minimum | 50 dB |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Peak Power, maximum | 1 kW |
Electrical specifications, rx (uplink)
| Frequency Band | 880 – 915 MHz |
| Insertion Loss, maximum, specific | 3.7 dB (UMTS diversity) | 4.5 dB (GSM main) |
| Insertion Loss, typical, specific | 3.5 dB (UMTS diversity) | 4 dB (GSM main) |
| Return Loss, minimum | 16 dB |
| Isolation, minimum, specific | 22 dB (GSM main to UMTS diversity) |
| License Band | UMTS 900 |
| Port Designation | Antenna port 1 |
Electrical specifications 2, rx (uplink)
| Frequency Band | 880 – 915 MHz |
| Isolation, minimum, specific | 22 dB (UMTS main to GSM diversity) |
| License Band | GSM |
| Port Designation | Antenna port 2 |
| Insertion Loss, maximum, specific | 3.7 dB (GSM diversity) | 4.5 dB (UMTS main) |
| Insertion Loss, typical, specific | 3.5 dB (GSM diversity) | 4 dB (UMTS main) |
| Return Loss, minimum | 16 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 925 – 960 MHz |
| Isolation, minimum, specific | 33 dB (GSM main to UMTS diversity) |
| License Band | GSM |
| Input Power, RMS, maximum | 126 W |
| Insertion Loss, typical | 0.35 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 925 – 960 MHz |
| Insertion Loss, typical | 0.35 dB |
| Isolation, minimum, specific | 33 dB (UMTS main to GSM diversity) |
| License Band | UMTS 900 |
| Return Loss, minimum | 18 dB |
Electrical specifications, aisg
| Insertion Loss, maximum | 0.1 dB |
| Return Loss, minimum | 20 dB |

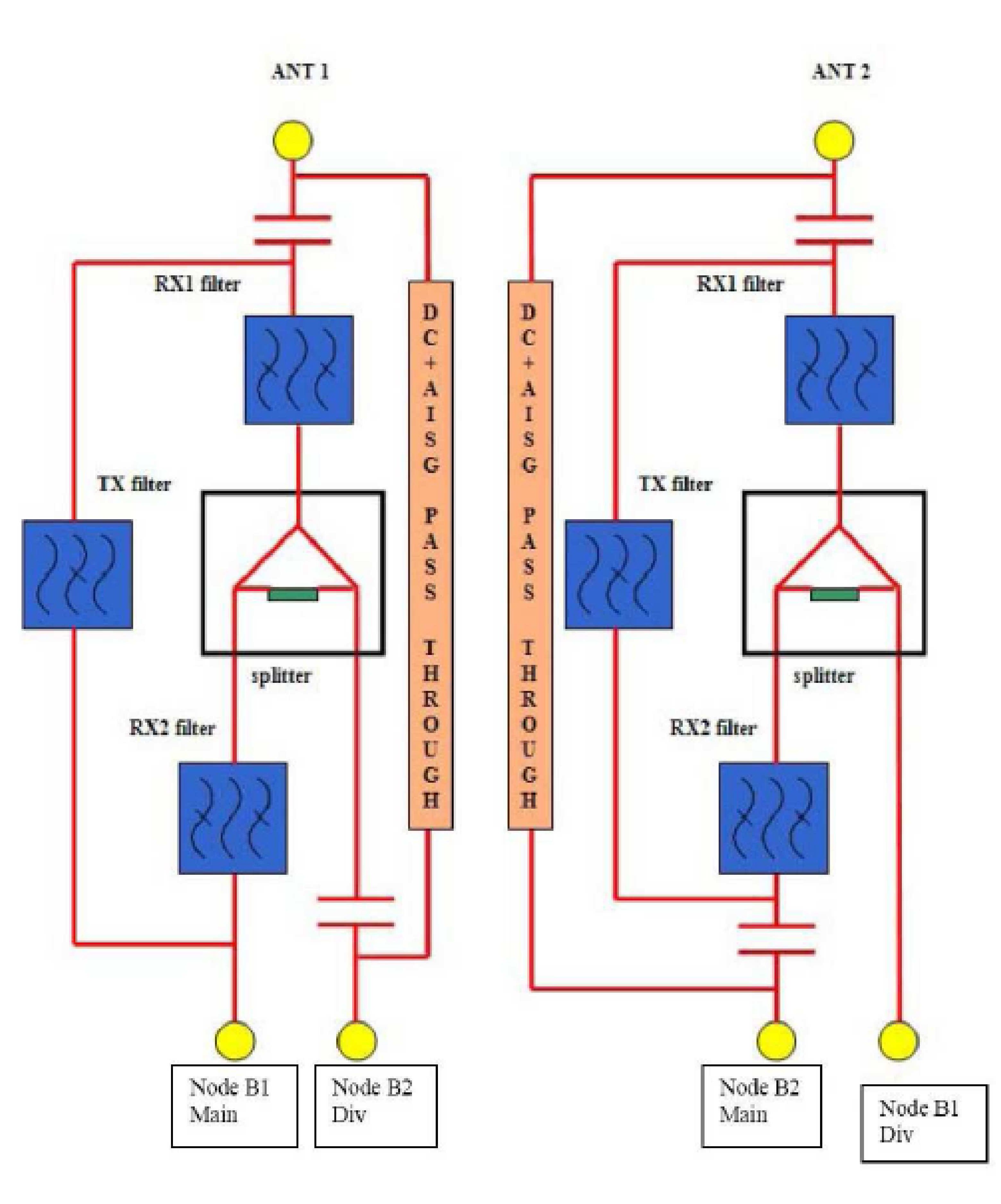

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP68 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 7.5 kg | 16.535 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Application | Outdoor |
| AISG Carrier | 2176 KHz ± 100 ppm |
| Antenna Interface | 7-16 DIN Female |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 280 mm | 11.024 in |
| Width | 92.5 mm | 3.642 in |
| Depth | 279 mm | 10.984 in |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| 3rd Order IMD typical | -158 dBc |
| Isolation Between Paths, minimum | 50 dB |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Peak Power, maximum | 1 kW |
Electrical specifications, rx (uplink)
| Frequency Band | 880 – 915 MHz |
| Insertion Loss, maximum, specific | 3.7 dB (UMTS diversity) | 4.5 dB (GSM main) |
| Insertion Loss, typical, specific | 3.5 dB (UMTS diversity) | 4 dB (GSM main) |
| Return Loss, minimum | 16 dB |
| Isolation, minimum, specific | 22 dB (GSM main to UMTS diversity) |
| License Band | UMTS 900 |
| Port Designation | Antenna port 1 |
Electrical specifications 2, rx (uplink)
| Frequency Band | 880 – 915 MHz |
| Isolation, minimum, specific | 22 dB (UMTS main to GSM diversity) |
| License Band | GSM |
| Port Designation | Antenna port 2 |
| Insertion Loss, maximum, specific | 3.7 dB (GSM diversity) | 4.5 dB (UMTS main) |
| Insertion Loss, typical, specific | 3.5 dB (GSM diversity) | 4 dB (UMTS main) |
| Return Loss, minimum | 16 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 925 – 960 MHz |
| Isolation, minimum, specific | 33 dB (GSM main to UMTS diversity) |
| License Band | GSM |
| Input Power, RMS, maximum | 126 W |
| Insertion Loss, typical | 0.35 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 925 – 960 MHz |
| Insertion Loss, typical | 0.35 dB |
| Isolation, minimum, specific | 33 dB (UMTS main to GSM diversity) |
| License Band | UMTS 900 |
| Return Loss, minimum | 18 dB |
Electrical specifications, aisg
| Insertion Loss, maximum | 0.1 dB |
| Return Loss, minimum | 20 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP68 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 7.5 kg | 16.535 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
