E12F03P88

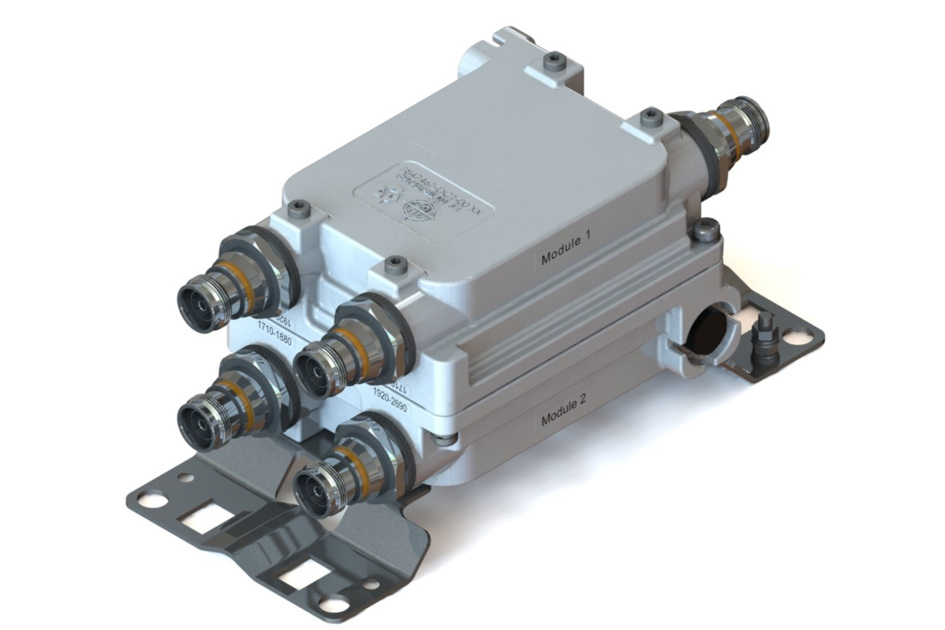

Twin Diplexer, 1800/2100-2600, dc block all ports, with 4.3-10 connectors
Features and benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network Modernization, introduction of LTE1800 on existing site
- Designed for network modernization application, introduction of LTE2300 and LTE2600 on existing site
- Twin configuration
- dc/AISG blocking on all ports (DC open)
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 86 mm | 3.386 in |
| Width | 109 mm | 4.291 in |
| Depth | 139 mm | 5.472 in |
| Mounting Pipe Diameter Range | 43–122 mm |

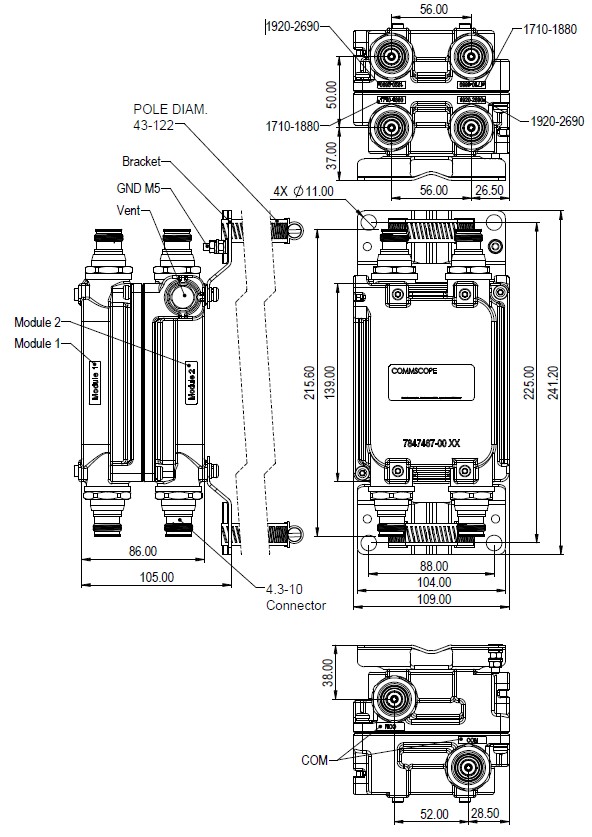

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | DCS 1800 | IMT 2100 | IMT 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 1710-1880 | PORT 2 1920-2690 |
| License Band | DCS 1800, Band Pass | IMT 2100, Band Pass IMT 2600, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880 | 1920–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.15 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, typical, dB | 40 | 40 |
| Input Power, RMS, maximum, W | 250 | 250 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -157 | -163 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

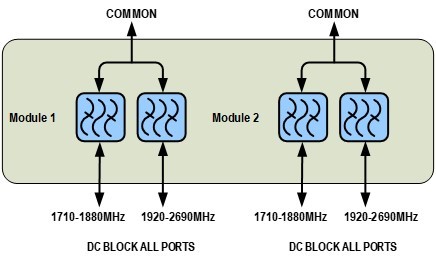

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.3 L |
| Weight, with mounting hardware | 2.3 kg | 5.071 lb |
| Weight, without mounting hardware | 2.1 kg | 4.630 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 86 mm | 3.386 in |
| Width | 109 mm | 4.291 in |
| Depth | 139 mm | 5.472 in |
| Mounting Pipe Diameter Range | 43–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | DCS 1800 | IMT 2100 | IMT 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 1710-1880 | PORT 2 1920-2690 |
| License Band | DCS 1800, Band Pass | IMT 2100, Band Pass; IMT 2600, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1710–1880 | 1920–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.15 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, typical, dB | 40 | 40 |
| Input Power, RMS, maximum, W | 250 | 250 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -157 | -163 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.3 L |
| Weight, with mounting hardware | 2.3 kg | 5.071 lb |
| Weight, without mounting hardware | 2.1 kg | 4.630 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
