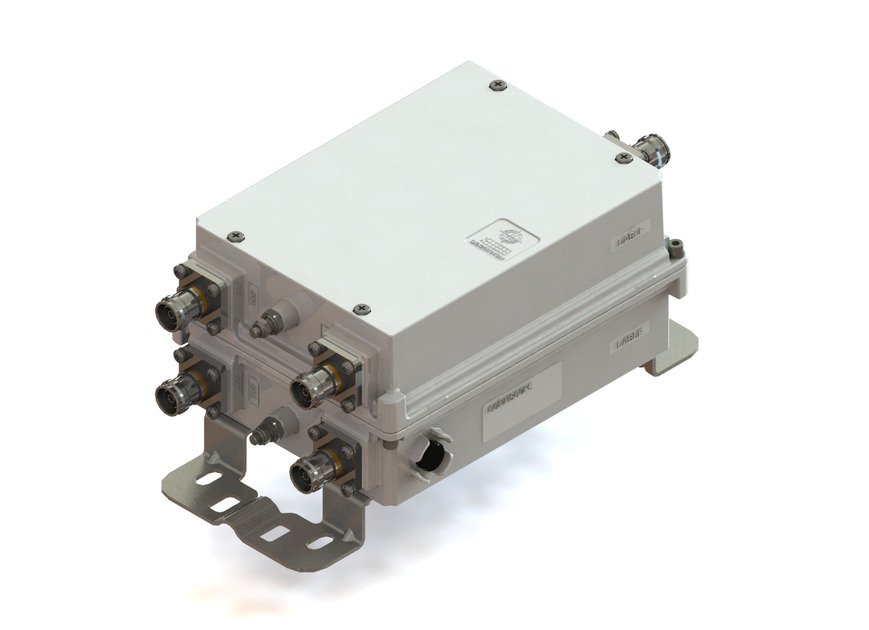

E11F13P46-V
Twin Diplexer, 700/900 MHz, RJ40, dc block on all ports with hybrid connectors 4.3-10 input and 7/16 output
Features and benefits
- Industry leading PIM performance
- dc/AISG blocking on all ports
- Twin configuration
- Hybrid connectors 4.3-10 input and 7/16 output
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC79X |
| Color | Gray |
| Common Port Label | Port 3 |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 307 mm | 12.087 in |
| Width | 170 mm | 6.693 in |
| Depth | 144 mm | 5.669 in |
| RF Connector Length | 25 mm | 0.984 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

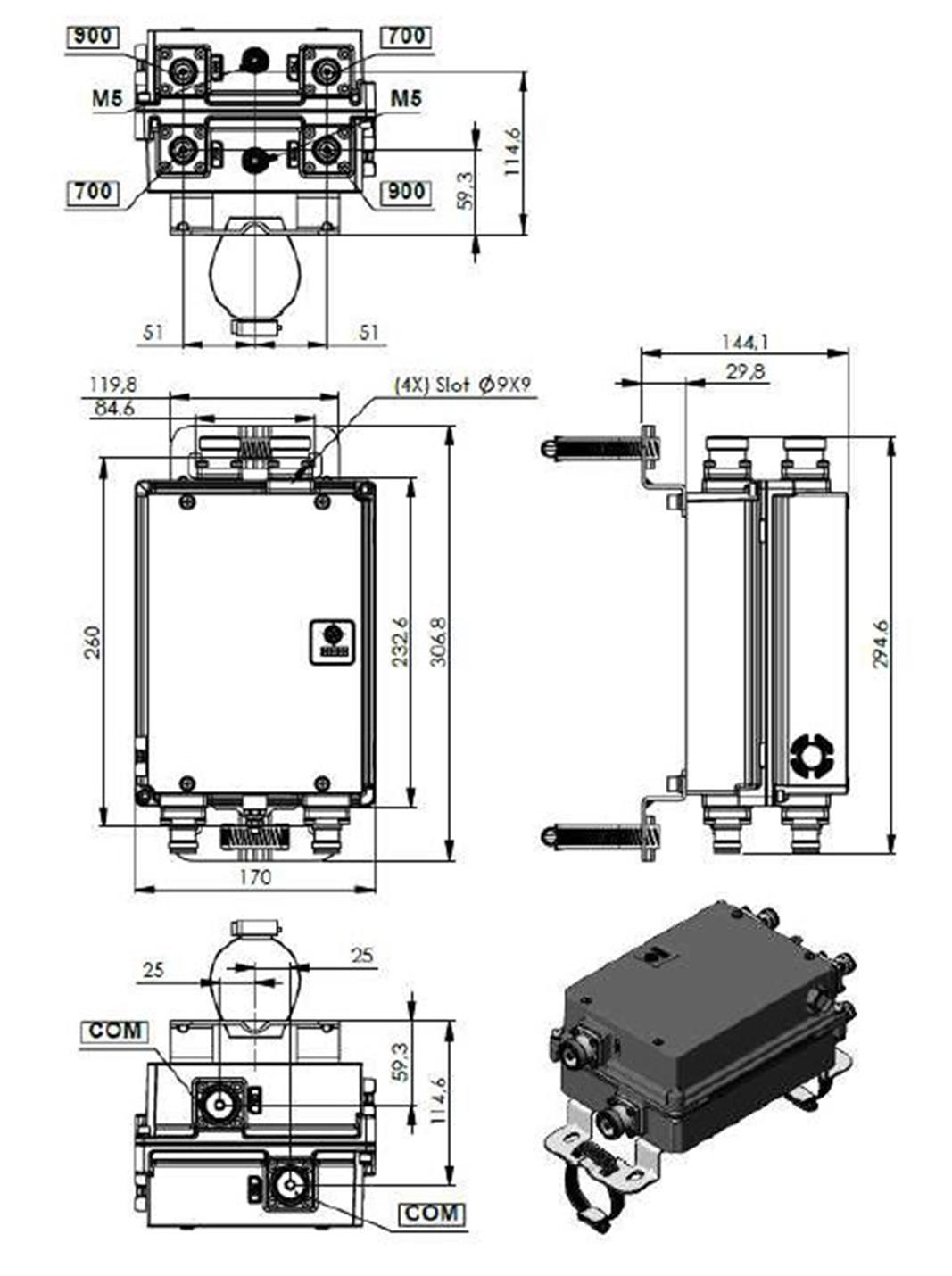

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Insertion Loss Ripple, maximum | 0.2 dB |
| Electrical Safety Standard | EN 60950 |
| Electromagnetic Compatibility/Interference (EMC/EMI) | EN 55022 | ETSI 301 489-1 V1.8.1 |
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | EDD 800 | LMR 750 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 698-803 | 880-960 |
| License Band | APT 700, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 698–803 | 880–960 |
| Insertion Loss, maximum, dB | 0.50 | 0.50 |
| Insertion Loss, typical, dB | 0.25 | 0.25 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 |
| Isolation, typical, dB | 55 | 55 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -158 | -158 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

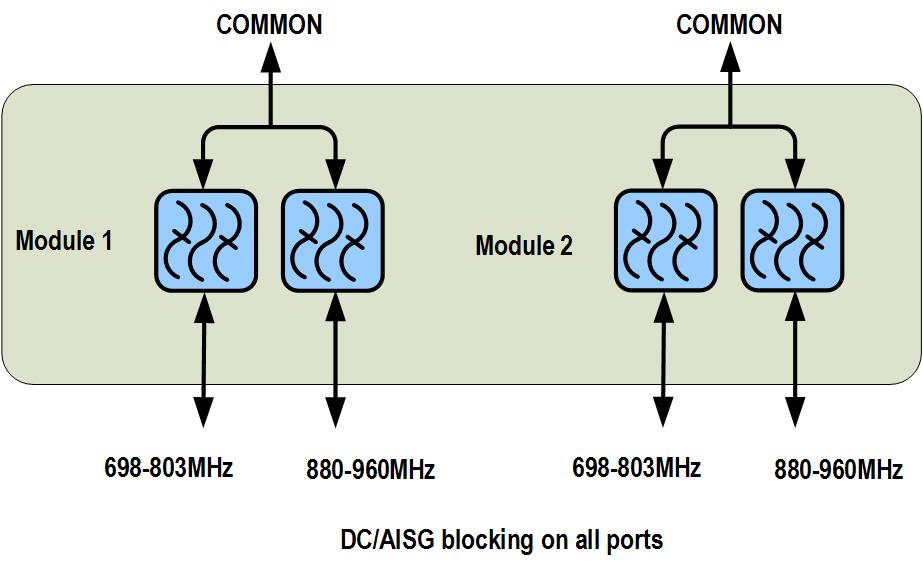

Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Mechanical specifications
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Wind Speed, maximum | 200 km/h (124 mph) |
Environmental specifications
| Operating Temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Mean Time Between Failures, minimum | 1000000 h |
| Thermal Shock Test Method | IEC 60068-2-14 |
| UV Resistance Test Method | IEC 60068-2-5 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 4.5 L |
| Weight, net | 5.6 kg | 12.346 lb |
| Weight, without mounting hardware | 5.1 kg | 11.244 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC79X |
| Color | Gray |
| Common Port Label | Port 3 |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 307 mm | 12.087 in |
| Width | 170 mm | 6.693 in |
| Depth | 144 mm | 5.669 in |
| RF Connector Length | 25 mm | 0.984 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Insertion Loss Ripple, maximum | 0.2 dB |
| Electrical Safety Standard | EN 60950 |
| Electromagnetic Compatibility/Interference (EMC/EMI) | EN 55022 | ETSI 301 489-1 V1.8.1 |
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 900 | EDD 800 | LMR 750 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
| dc/AISG Pass-through, combiner | dc/AISG blocking on all ports |
| dc/AISG Pass-through, demultiplexer | dc/AISG blocking on all ports |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 698-803 | 880-960 |
| License Band | APT 700, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 698–803 | 880–960 |
| Insertion Loss, maximum, dB | 0.50 | 0.50 |
| Insertion Loss, typical, dB | 0.25 | 0.25 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 |
| Isolation, typical, dB | 55 | 55 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -158 | -158 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Material specifications
| Finish | Painted |
Mechanical specifications
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Wind Speed, maximum | 200 km/h (124 mph) |
Environmental specifications
| Operating Temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Mean Time Between Failures, minimum | 1000000 h |
| Thermal Shock Test Method | IEC 60068-2-14 |
| UV Resistance Test Method | IEC 60068-2-5 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 4.5 L |
| Weight, net | 5.6 kg | 12.346 lb |
| Weight, without mounting hardware | 5.1 kg | 11.244 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
