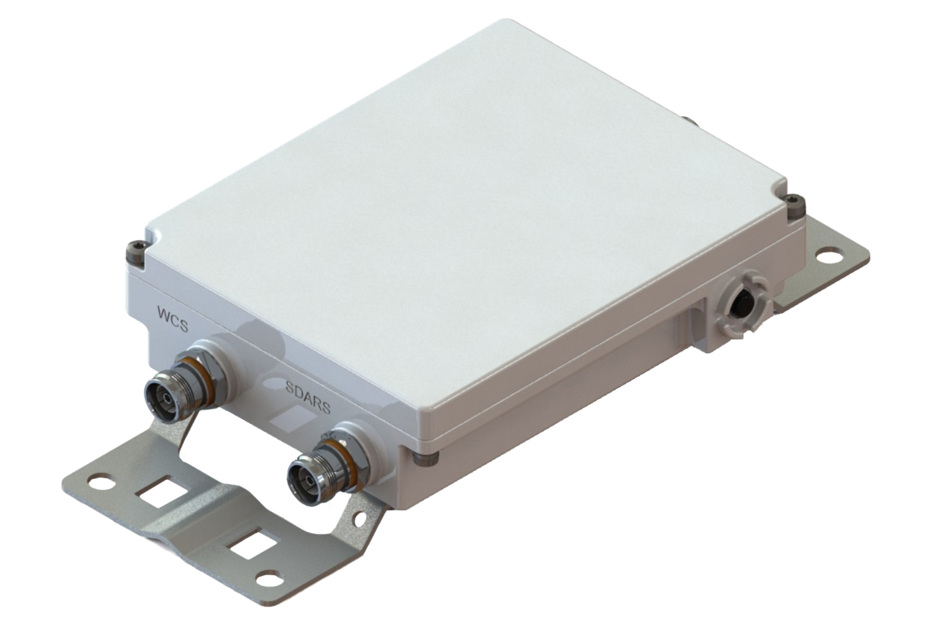

CBC23SR-43 | E14F05P84

Diplexer for WCS ABCD blocks and SiriusXM repeater bands

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

DC/AISG pass-through on WCS port
New 4.3-10 connectors for improved PIM performance and size reduction

Specifications

Product classification

Product Type

Diplexer

General specifications

Color	Gray
Common Port Label	Common
Modularity	1-Single
Mounting	Pole \| Wall
Mounting Pipe Hardware	Band clamps (2)
RF Connector Interface	4.3-10 Female
RF Connector Interface Body Style	Long neck

Dimensions

Height	202 mm \| 7.953 in
Width	160 mm \| 6.299 in
Depth	53 mm \| 2.087 in
Ground Screw Diameter	6 mm \| 0.236 in

Outline drawing

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
License Band, Band Pass	WCS 2300

Electrical specifications, dc power/alarm

dc/AISG Pass-through Method	Factory set
dc/AISG Pass-through Path	Branch 1
Lightning Surge Current	10 kA
Lightning Surge Current Waveform	8/20 waveform

Electrical specifications, aisg

AISG Carrier	2176 KHz ± 100 ppm
Insertion Loss, maximum	1 dB
Return Loss, minimum	15 dB

Electrical specifications

Sub-module	1	1	1
Branch	1		2
Port Designation	WCS	WCS	SDARS 2300
License Band	WCS 2300, Band Pass	WCS 2300, Band Pass	WCS 2300, Band Pass

Electrical specifications, band pass

Frequency Range, MHz	2305.5–2317.9	2347.1–2359.5	2324–2341.5
Insertion Loss, typical, dB	0.50	0.60	1.10
Total Group Delay, maximum, ns	120	120	150
Return Loss, minimum, dB	20	20	20
Isolation, typical, dB	50	50	50
Input Power, RMS, maximum, W		50	2
Input Power, PEP, maximum, W		500	40
3rd Order PIM, maximum, dBc		-161	-161
3rd Order PIM Test Method		2 x 20 W CW tones	2 x 20 W CW tones

Block diagram

Click on image to enlarge.

Environmental specifications

Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity	5%–100%
Corrosion Test Method	IEC 60068-2-11, 30 days
Ingress Protection Test Method	IEC 60529:2001, IP67

Packaging and weights

Included	Mounting hardware
Volume	1.7 L
Weight, net	2.2 kg \| 4.85 lb
