A-100454

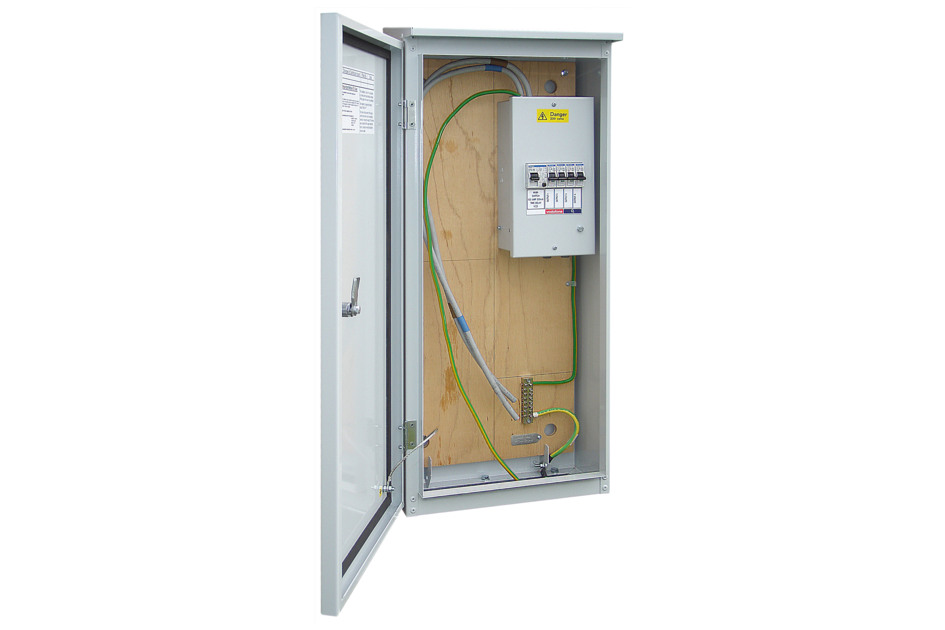

Single Phase Meter Pillar Cabinet
Features and benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door |
| Accessories | Cable plate | In-ground root |
| Batteries Supported | 0 |
| Batteries Supported, with optional battery pedestal | 0 |
| Cabinet Type | Meter cabinet |
| Color | Gray | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Door Security | 7 mm triangle lock |
| Internal Mounting Surface | 12 mm plywood backboard |
Dimensions
| Height | 863.6 mm | 34 in |
| Width | 381 mm | 15 in |
| Depth | 177.8 mm | 7 in |
| Depth, without door | 177.8 mm | 7 in |
Electrical specifications
| ac Distribution Type | 6-way metal enclosure |
| ac Feeds, Outgoing, quantity | 4 |
| Generator Connection | No connection |
| Power Phase | Single |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Packaging and weights
| Weight, net | 19.958 kg | 44 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door |
| Accessories | Cable plate | In-ground root |
| Batteries Supported | 0 |
| Batteries Supported, with optional battery pedestal | 0 |
| Cabinet Type | Meter cabinet |
| Color | Gray | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Door Security | 7 mm triangle lock |
| Internal Mounting Surface | 12 mm plywood backboard |
Dimensions
| Height | 863.6 mm | 34 in |
| Width | 381 mm | 15 in |
| Depth | 177.8 mm | 7 in |
| Depth, without door | 177.8 mm | 7 in |
Electrical specifications
| ac Distribution Type | 6-way metal enclosure |
| ac Feeds, Outgoing, quantity | 4 |
| Generator Connection | No connection |
| Power Phase | Single |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Packaging and weights
| Weight, net | 19.958 kg | 44 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
