A-100329

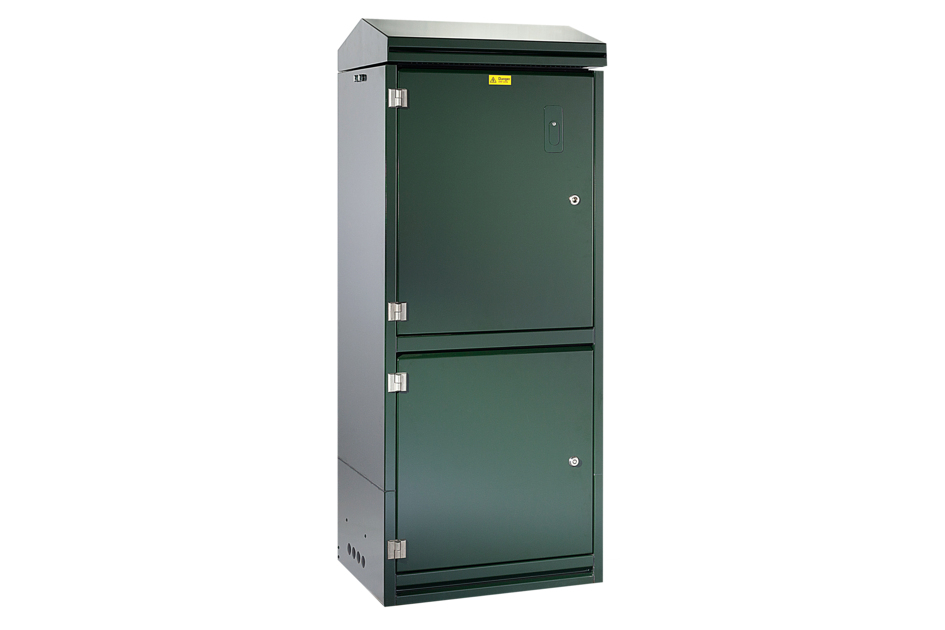

Link ac Cabinet, Mark 4
Features and benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product classification
| Product Type | Power supply enclosure |
| Ordering Note | For UK region only |
General specifications
| Access | Front door |
| Batteries Supported | 0 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 175 mm fan (1) |
| Door Security | European profile cylinder |
| Doors, quantity | 2 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 13 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 609.6 mm | 24 in |
| Depth | 508 mm | 20 in |
Electrical specifications
| Input Power Supply | 100 A |
| ac Distribution Type | 20-way plastic enclosure |
| dc Distribution Type | 8-way dc panel | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 800 W |
| Rectifiers, quantity | 2 |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and weights
| Included | -48V DC Power supply unit | Brackets | Cooling | Installation Kit | Power Distribution |
| Weight, net | 150.139 kg | 331 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Power supply enclosure |
| Ordering Note | For UK region only |
General specifications
| Access | Front door |
| Batteries Supported | 0 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 175 mm fan (1) |
| Door Security | European profile cylinder |
| Doors, quantity | 2 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 13 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 609.6 mm | 24 in |
| Depth | 508 mm | 20 in |
Electrical specifications
| Input Power Supply | 100 A |
| ac Distribution Type | 20-way plastic enclosure |
| dc Distribution Type | 8-way dc panel | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 800 W |
| Rectifiers, quantity | 2 |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and weights
| Included | -48V DC Power supply unit | Brackets | Cooling | Installation Kit | Power Distribution |
| Weight, net | 150.139 kg | 331 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
