760250933 | CMC- 36 Plinth
- Available in:
- Latin America
- North America
CMC 6” High Plinth, Cabinet Mounting Used with 36” Wide Cabinets
Features and benefits
The plinth is designed to mount and elevate the CMC74-36 and CMC85-36 large footprint cabinet by 6". It uses the same ½” hardware from ANDREW and is constructed entirely out of steel to support all CMC74-36 and CMC85-36 series large footprint cabinets.
- Designed to withstand seismic Zone 4 requirement
- Same interface to fit the CMC74-36 and CMC85-36 large footprint cabinets
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Macro cell site enclosure |
| Product Series | CMC |
General specifications
| Color | Light Gray (RAL 7035) | Others available at additional cost |
Dimensions
| Height | 152.400 mm | 6 in |
| Width | 914.400 mm | 36 in |
| Depth | 939.800 mm | 37 in |

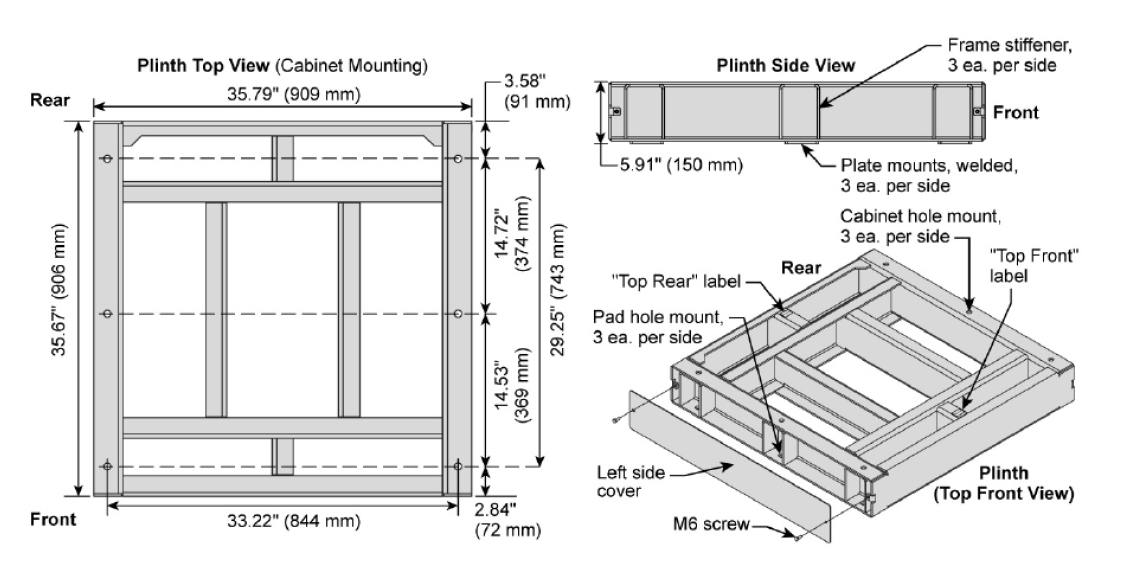

Dimension drawing
| Click on image to enlarge. |

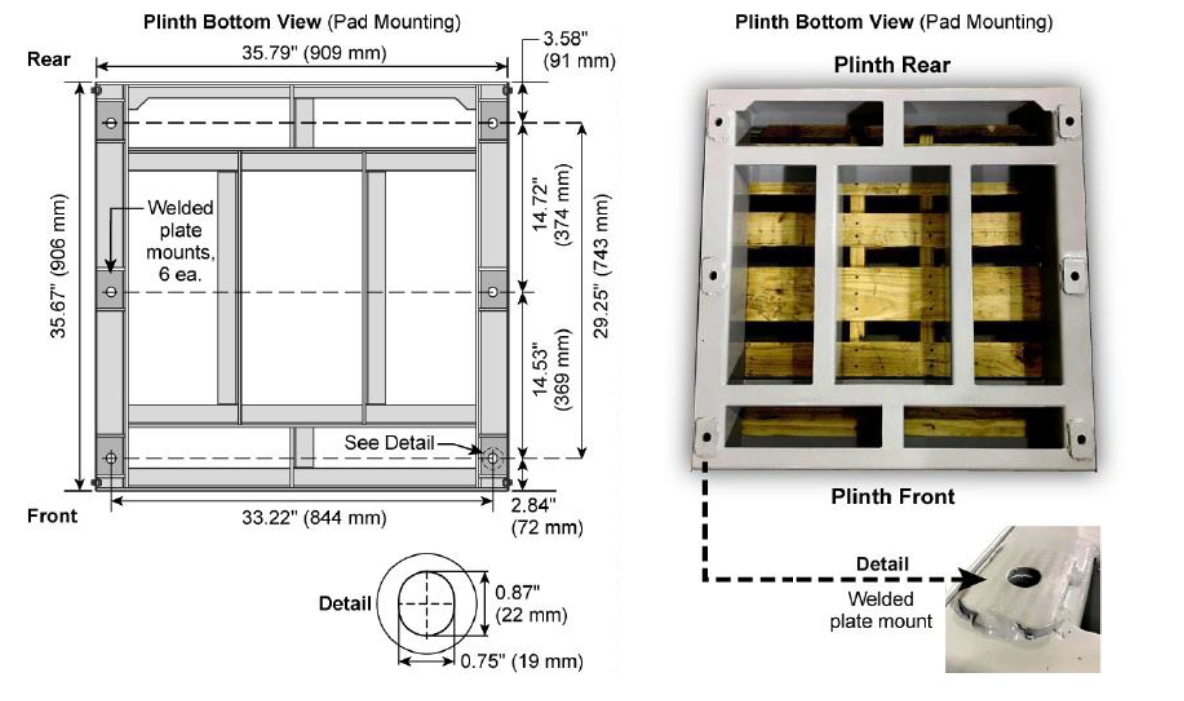

Cabinet mounting
| Click on image to enlarge. |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Steel |
Environmental specifications
| Qualification Standards | GR-487 | Seismic rating, zone 4 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Macro cell site enclosure |
| Product Series | CMC |
General specifications
| Color | Light Gray (RAL 7035) | Others available at additional cost |
Dimensions
| Height | 152.400 mm | 6 in |
| Width | 914.400 mm | 36 in |
| Depth | 939.800 mm | 37 in |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Steel |
Environmental specifications
| Qualification Standards | GR-487 | Seismic rating, zone 4 |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
